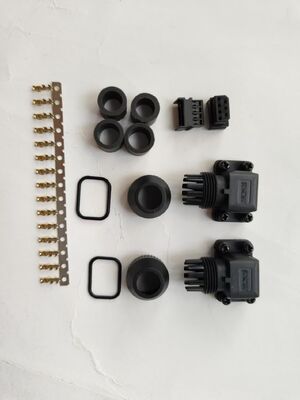

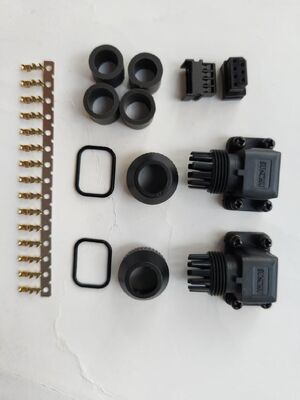

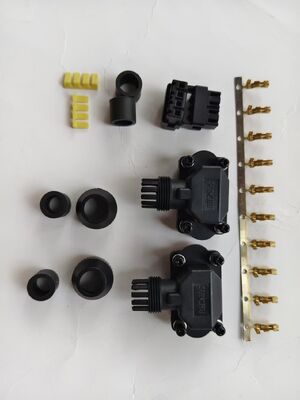

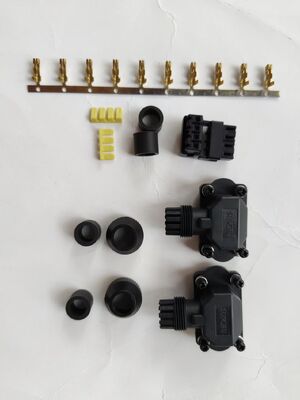

1000V Servo Motor Connectors with Crimp/Solder Termination and Silver Gold Plated Contacts for Industrial Automation

Product Description:

The Servo Motor Connectors are precision-engineered components designed to meet the demanding requirements of Brushless Servo Motor applications. These connectors provide reliable and robust electrical connections essential for the optimal performance of Brushless Servo Motors and Electro Hydraulic Servo systems. With a comprehensive range of configurations, the Servo Motor Connectors cater to various installation needs and operational environments, ensuring seamless integration into both panel mount and cable mount setups.

One of the standout features of these Servo Motor Connectors is their exceptional insulation resistance, available in configurations such as 6PIN and 7PIN. This high insulation resistance ensures minimal electrical leakage and superior protection against short circuits, which is critical for maintaining the integrity and safety of Brushless Servo Motor systems. The connectors are capable of withstanding a voltage rating of up to 1000V, making them suitable for high-voltage applications frequently encountered in industrial automation and electro-hydraulic servo control systems.

The versatility of these connectors is further highlighted by their wide range of contact options. Customers can choose from multiple contact configurations including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN to best match their specific wiring and signal transmission requirements. This flexibility allows for precise customization in complex Brushless Servo Motor setups, facilitating efficient power delivery and signal communication. Whether the application demands a compact 4PIN connector or a more extensive 17PIN arrangement, these connectors deliver consistent performance and durability.

In terms of termination options, the Servo Motor Connectors offer both crimp and solder termination types. This dual termination approach provides installers and engineers with the freedom to select the most appropriate method based on the application’s mechanical and electrical requirements. Crimp termination ensures a secure, vibration-resistant connection ideal for dynamic environments, while solder termination offers a more permanent bond, enhancing electrical conductivity and mechanical stability. Both termination types are engineered to maintain the connector’s integrity under continuous use, which is essential for the reliable operation of Brushless Servo Motors and Electro Hydraulic Servo systems.

The mounting options for these Servo Motor Connectors are equally diverse, supporting both panel mount and cable mount configurations. Panel mount connectors are designed for fixed installations, providing a stable and accessible interface for connecting Brushless Servo Motors within control panels or machinery housings. Conversely, cable mount connectors are optimized for flexibility and mobility, enabling easy connection and disconnection along the cable path. This adaptability makes the connectors ideal for a broad spectrum of industrial applications where Brushless Servo Motors and Electro Hydraulic Servo systems are employed.

Durability and reliability are at the core of the design of these connectors. Manufactured from high-quality materials, they are built to withstand harsh industrial environments, including exposure to vibration, moisture, and temperature fluctuations. This robustness ensures that the electrical connections remain stable and secure over the long term, reducing downtime and maintenance costs associated with Brushless Servo Motor and Electro Hydraulic Servo equipment.

In summary, the Servo Motor Connectors provide an essential solution for the connectivity needs of Brushless Servo Motor and Electro Hydraulic Servo applications. Their high insulation resistance, versatile pin configurations, robust voltage rating, and flexible termination and mounting options make them an indispensable component in modern industrial automation. Whether integrating into panel-mounted control systems or cable-mounted assemblies, these connectors guarantee reliable, high-performance electrical connections that support the efficiency and longevity of critical servo motor systems.

Features:

• Product Name: Servo Motor Connectors
• Termination Type: Crimp/Solder for secure and reliable connections
• Available Genders: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Model Name: 6FX2003
• Operating Temperature Range: -40℃ to +105℃, suitable for various environments
• Wire Gauge Compatibility: Supports 18-24 AWG or more, AWG 3-12 Diameter wires
• Designed for Electro Hydraulic Servo applications, ensuring high performance
• Compatible with Electro Hydraulic Servo systems and AC Servo Drive units
• Durable construction for long-lasting use in industrial settings

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed specifically for high-performance industrial automation applications. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure reliable and efficient connectivity in demanding environments. Their robust construction and high-quality materials make them ideal for use with brushless servo motor systems, where precision and durability are paramount.

In modern industrial settings, brushless servo motors are widely used due to their efficiency and low maintenance requirements. The 6FX2003 connectors offer excellent termination options with crimp and solder types, providing secure and stable connections that withstand vibrations and mechanical stresses typical in automated machinery. With a voltage rating of 1000V and insulation resistance suitable for both 6PIN and 7PIN configurations, these connectors support versatile setups needed for various servo motor control systems.

Electro hydraulic servo systems, which combine hydraulic power with electronic control, demand connectors that can maintain signal integrity and power transmission under harsh conditions. The NO MARK Servo Motor Connectors meet these needs with silver and gold-plated contact pins, ensuring minimal contact resistance and excellent corrosion resistance. This makes them perfect for electro hydraulic servo applications where precision and responsiveness are critical.

Furthermore, these connectors are compatible with AC servo drive units, facilitating reliable communication between the drive and the motor. Their design supports high current and voltage loads, making them suitable for a wide range of industrial automation equipment. The connectors come packaged securely in carton boxes to prevent damage during transit and are available with a minimum order quantity of 100 units, catering to both small and large scale production needs.

With a supply ability of 1000 pieces per day and a quick delivery time of 1-3 working days, NO MARK ensures that customers receive their orders promptly. Payment terms include flexible options such as T/T and PayPal, further enhancing customer convenience. These attributes make the 6FX2003 Servo Motor Connectors an excellent choice for engineers and manufacturers seeking reliable, high-quality connectors for brushless servo motors, electro hydraulic servo systems, and AC servo drives in industrial automation.

Customization:

Our 6FX2003 Servo Motor Connectors are customizable to meet your specific requirements, ensuring seamless integration with High Torque DC Servo Motors and Hydraulic Brake Motors. Manufactured in China under strict quality control and certified by CE and ISO9001, these connectors guarantee reliable performance in industrial automation applications.

The connectors support a voltage rating of 1000V and accommodate wire gauges ranging from 18-24 AWG or more, including AWG 3-12 diameter, suitable for various servo motor configurations. Available in multiple gender options such as 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN, they provide versatility for different hydraulic brake motor systems.

We offer a minimum order quantity of 100 pieces, with a supply ability of 1000 pcs/day, ensuring prompt delivery within 1-3 working days. Packaging is done securely in carton boxes to protect the products during transit. Payment terms include T/T and PayPal for your convenience.

Choose our 6FX2003 Servo Motor Connectors for dependable connection solutions tailored for High Torque DC Servo Motors and Hydraulic Brake Motors in demanding industrial automation environments.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor systems in various industrial applications. We offer comprehensive technical support to ensure optimal performance and ease of integration.

Technical support includes assistance with product selection, wiring configurations, and troubleshooting to help you achieve the best results with your servo motor setup. Our team of experts is available to provide guidance on compatibility with different servo motor models and controllers.

We also offer detailed product documentation, including datasheets, installation guides, and wiring diagrams, to support your engineering and maintenance teams. For any service requirements, we provide repair and replacement options to minimize downtime and maintain system efficiency.

Whether you are upgrading your current system or designing a new application, our servo motor connectors come with the assurance of quality and durability backed by our dedicated support services.
