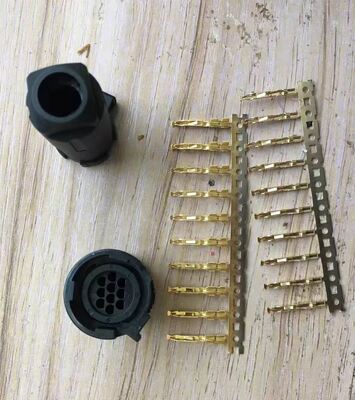

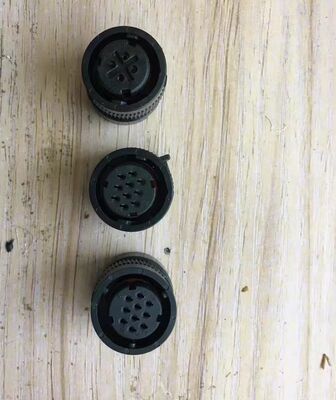

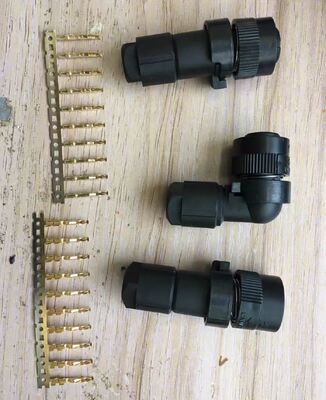

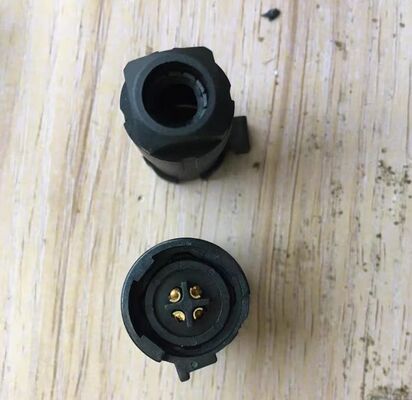

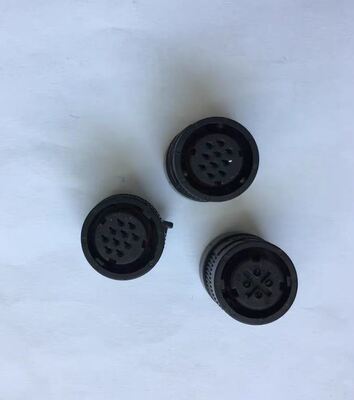

1000V 4-Pin 10-Pin Silver Gold Plated Servo Motor Connectors for FANUC Yaskawa Sanyo Denki Industrial Automation

Product Description:

The 6FX2003 Servo Motor Connectors are designed to provide reliable and high-performance connectivity solutions for various servo motor applications, including High Torque DC Servo Motor systems, DC Servo Motor Drive units, and Brushless Servo Motor configurations. These connectors are engineered to meet the demanding requirements of modern servo motor technology, ensuring optimal electrical performance, durability, and ease of installation.

One of the standout features of the 6FX2003 Servo Motor Connectors is their impressive voltage rating of 1000V. This high voltage rating ensures that the connectors can safely handle the electrical loads commonly encountered in high-power servo motor applications. Whether you are working with a High Torque DC Servo Motor that requires substantial power or a sophisticated Brushless Servo Motor system, these connectors provide the robust insulation and electrical integrity necessary for reliable operation.

The termination type of the 6FX2003 connectors is versatile, supporting both crimp and solder methods. This flexibility allows for easy integration into various wiring setups and manufacturing processes. Crimp termination offers a quick and secure mechanical and electrical connection, ideal for high-volume production environments or field installations. Meanwhile, solder termination provides a permanent bond, ensuring excellent conductivity and mechanical strength, which is particularly beneficial in applications where vibration and movement are concerns, such as in DC Servo Motor Drive systems.

Contact quality is critical in servo motor connectors, and the 6FX2003 excels in this aspect by employing premium contact plating materials. The connector contacts are plated with silver, known for its excellent electrical conductivity and corrosion resistance, which helps maintain low contact resistance and efficient power transfer. Additionally, some pins are gold-plated, providing enhanced durability and resistance to oxidation, which is especially important in harsh environmental conditions or in applications requiring frequent mating cycles.

Insulation resistance is another key attribute of the 6FX2003 Servo Motor Connectors. The product comes with options for 6-pin and 7-pin configurations, catering to different wiring and signal requirements of servo motor systems. The insulation resistance is engineered to provide reliable isolation between contacts, preventing electrical leakage and enhancing the overall safety and performance of the servo motor connection. This characteristic is essential when dealing with the complex control signals and power delivery in advanced DC Servo Motor Drive systems.

The 6FX2003 connectors are widely used in various servo motor applications, including High Torque DC Servo Motors, where precise control and reliable power delivery are crucial. High Torque DC Servo Motors demand connectors that can withstand high current loads and deliver consistent performance under mechanical stress. The robust construction and high voltage rating of the 6FX2003 make it an ideal choice for these demanding applications.

In addition, these connectors are highly compatible with Brushless Servo Motor setups. Brushless Servo Motors rely on efficient electrical connections to ensure smooth operation, reduced electrical noise, and long service life. The high-quality contact plating and secure termination methods of the 6FX2003 connectors support these requirements effectively.

Furthermore, the 6FX2003 connectors are designed with user convenience in mind. Their ergonomic design facilitates easy handling and installation, reducing assembly time and minimizing the risk of wiring errors. This makes them suitable not only for original equipment manufacturers (OEMs) but also for maintenance and repair operations in the field.

In summary, the 6FX2003 Servo Motor Connectors offer a comprehensive solution for connecting High Torque DC Servo Motors, DC Servo Motor Drive units, and Brushless Servo Motors. With a high voltage rating of 1000V, flexible crimp/solder termination options, superior silver and gold contact plating, and reliable insulation resistance in 6-pin and 7-pin configurations, these connectors ensure optimal electrical performance and durability. They are an excellent choice for engineers and technicians seeking dependable connectivity for their servo motor applications.

Features:

• Product Name: Servo Motor Connectors
• Material: Metal/Plastic
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Gender: Available for 4PIN, 6PIN, 8PIN, 12PIN, 17PIN configurations
• Connector Type: Servo Motor
• Termination Type: Crimp and Solder options available
• Compatible with High Torque DC Servo Motor applications
• Ideal for use in DC Servo Motor Drive systems
• Designed to support High Torque DC Servo Motor performance

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are engineered to provide reliable and efficient connectivity solutions for a wide range of industrial and automation applications. Originating from China and certified with CE and ISO9001 standards, these connectors ensure high-quality performance and safety compliance. Designed to accommodate various termination types such as crimp and solder, these connectors are ideal for use with brushless servo motors, AC servo drives, and AC servo motor drivers, facilitating seamless communication and power transfer.

These connectors come with multiple gender options, including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin configurations, making them highly versatile for different servo motor setups. With a voltage rating of up to 1000V and current ratings ranging from 1A to 10A and beyond, they are suitable for handling diverse electrical loads encountered in servo motor control systems. The operating temperature range of -40℃ to +105℃ ensures that these connectors perform reliably even in harsh environmental conditions, making them suitable for use in industrial automation, robotics, CNC machinery, and other precision motion control equipment.

Typically packaged in sturdy carton boxes, the NO MARK 6FX2003 connectors are ready for prompt delivery within 1-3 working days. Their supply ability of 1000 pieces per day supports large-scale manufacturing demands, while the minimum order quantity of 100 units is ideal for both small and medium-sized enterprises. Payment can be conveniently made via T/T or PayPal, providing flexibility for international clients.

In practical application, these servo motor connectors are extensively used in scenarios where brushless servo motors require stable and secure electrical connections to AC servo drives and AC servo motor drivers. This includes automation lines, robotic arms, conveyor systems, and other precision control setups that demand high reliability and durability. The connectors’ robust design and versatile pin configurations help maintain signal integrity and reduce downtime, ensuring smooth operation of servo motor systems across various industrial sectors.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under strict quality control and certified with CE and ISO9001, these connectors are ideal for use with High Torque DC Servo Motor and Electro Hydraulic Servo applications.

We offer customization services to cater to your specific requirements, including options for 6PIN or 7PIN insulation resistance, metal or plastic materials, and termination types such as crimp or solder. These connectors support a voltage rating of 1000V and are specially designed as Servo Motor connectors to ensure reliable and efficient performance.

Our minimum order quantity is 100 pieces, with a supply ability of up to 1000 pcs/day, ensuring timely delivery within 1-3 working days. Packaging is done in sturdy carton boxes to protect the products during transit.

We accept flexible payment terms including T/T and PayPal to facilitate smooth transactions. Whether you are integrating Electro Hydraulic Servo systems or High Torque DC Servo Motor setups, our connectors provide the durability and performance you need.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor systems. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your connectors.

Our support team is equipped to help with wiring configurations, compatibility checks, and resolving any connectivity issues that may arise during operation. We also provide detailed product documentation and datasheets to assist in the proper selection and usage of our servo motor connectors.

In addition to technical support, we offer various services such as customization options to meet specific application requirements, testing services to verify connector performance, and replacement parts to maintain system integrity over time.

We are committed to delivering high-quality support and services to maximize the efficiency and reliability of your servo motor connections.
