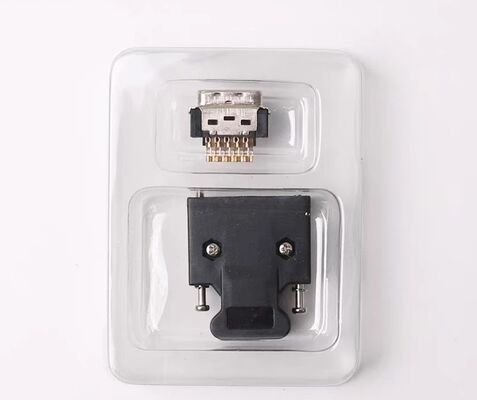

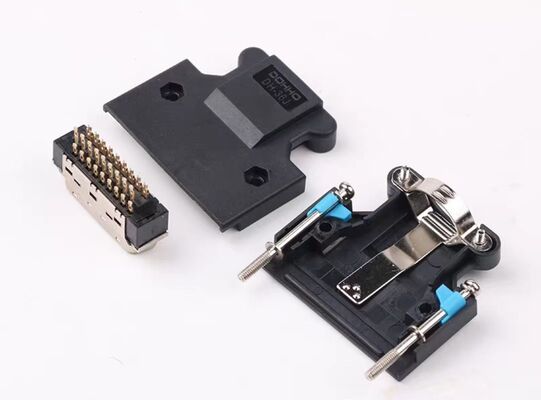

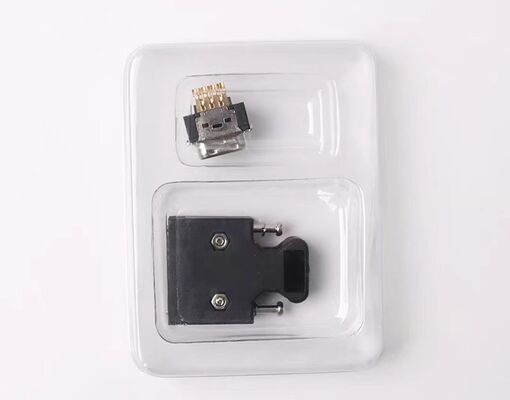

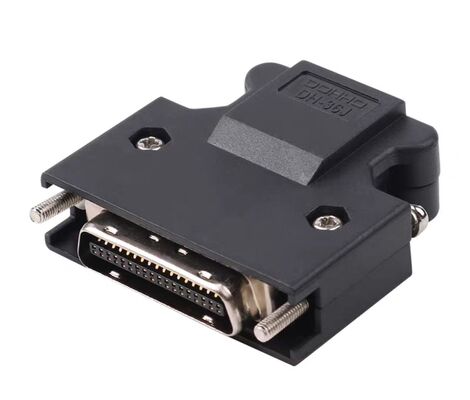

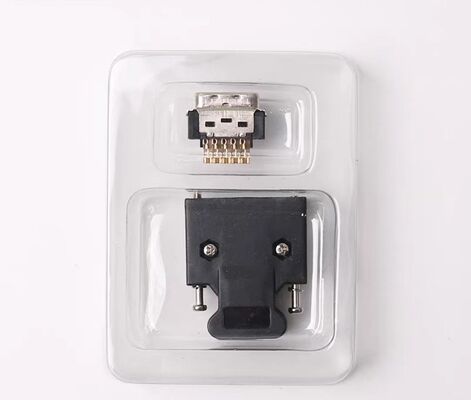

SCSI Connector SM-14P/20/26/36P/50P Full Metal Box Compatible with Mitsubishi/Yaskawa Servo

Product Description:

Servo Motor Connectors are essential components designed to establish reliable electrical connections between servo motors and their control systems. These connectors are meticulously engineered to accommodate the demanding requirements of industrial automation, where precision, durability, and performance are paramount. Constructed from a combination of high-quality metal and plastic materials, these connectors offer a robust and resilient solution that ensures long-lasting operation even in challenging industrial environments.

The metal components provide excellent conductivity and mechanical strength, while the plastic parts contribute to insulation and protection against environmental factors such as dust, moisture, and vibration. This hybrid material composition ensures that the connectors maintain optimal performance and safety standards, making them ideal for use with a variety of servo motor types, including AC Brushless Servo Motors, Hydraulic Brake Motors, and High Torque DC Servo Motors.

One of the key technical specifications of these Servo Motor Connectors is their current rating, which varies to suit different application needs. They are available with current ratings ranging from as low as 1A to as high as 10A or more, providing flexibility to handle diverse power requirements. This range makes them suitable for lightweight servo applications as well as heavy-duty motors that demand higher current capacity, ensuring efficient power transmission without overheating or signal loss.

In addition to current rating, insulation resistance is a critical attribute that these connectors offer. Designed with 6PIN and 7PIN configurations, the insulation resistance ensures that electrical signals are transmitted accurately without interference or leakage. This is especially important in industrial automation settings where precise control and feedback signals are necessary for maintaining system stability and performance. The multiple pin configurations also allow for easy integration with various servo motor models and controllers, enhancing compatibility and simplifying installation.

The connectors support a broad wire gauge range, typically accommodating wires from 18 to 24 AWG, and in some cases, even larger diameters ranging from AWG 3 to 12. This versatility enables the connectors to be used with different wire sizes depending on the current load and application requirements. Larger wire gauges are often required for motors with higher torque and power demands, such as Hydraulic Brake Motors and High Torque DC Servo Motors, ensuring that the electrical connections can safely carry the necessary current without excessive resistance or heat buildup.

Applications of these Servo Motor Connectors are predominantly found in the field of industrial automation, where they play a vital role in facilitating the control and operation of servo motors. Whether it is in robotics, CNC machinery, conveyor systems, or automated assembly lines, these connectors ensure seamless communication between the motor and the control unit. Their reliability and durability help reduce downtime and maintenance costs, contributing to overall operational efficiency.

Moreover, the connectors are designed to withstand harsh industrial conditions, including exposure to vibrations, temperature fluctuations, and mechanical stresses. This ruggedness is crucial for maintaining stable connections in environments where AC Brushless Servo Motors and Hydraulic Brake Motors are commonly employed. The connectors' design also emphasizes ease of use, featuring secure locking mechanisms and ergonomic structures that allow for quick and safe installation or replacement.

In summary, Servo Motor Connectors made from metal and plastic materials offer a dependable and versatile solution for connecting servo motors in industrial automation applications. With current ratings from 1A to 10A and beyond, insulation resistance tailored for 6PIN and 7PIN configurations, and support for a wide range of wire gauges from 18-24 AWG up to AWG 3-12 diameter, these connectors meet the stringent demands of modern motor control systems. Their compatibility with AC Brushless Servo Motors, Hydraulic Brake Motors, and High Torque DC Servo Motors further underscores their importance in delivering high performance, durability, and safety in industrial settings.

Features:

• Product Name: Servo Motor Connectors
• Operating Temperature: -40℃ To +105℃
• Connector Type: Servo Motor
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN options available
• Wire Gauge Compatibility: 18-24 AWG or more, supporting AWG 3-12 diameter
• Termination Type: Crimp and Solder termination options
• Compatible with AC Servo Drive systems
• Suitable for DC Servo Motor Drive applications
• Ideal for High Torque DC Servo Motor connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are precision-engineered components designed to meet the demanding requirements of various industrial and automation applications. Originating from China and certified with CE and ISO9001 standards, these connectors ensure high reliability and quality assurance for critical servo motor connections. Their robust construction using metal and plastic materials, combined with silver and gold-plated contact pin options, guarantees excellent conductivity and corrosion resistance, making them ideal for long-term use in harsh environments.

These servo motor connectors are widely used in conjunction with AC Servo Drives and AC Brushless Servo Motors, where efficient and secure electrical connections are essential for system performance and safety. The connectors support a range of wire gauges from 18-24 AWG up to 3-12 AWG diameter, accommodating various power and signal transmission needs. With multiple pin configurations available — including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin options — users can easily select the appropriate connector to match their servo motor and drive system requirements.

In scenarios involving Hydraulic Brake Motors, the NO MARK 6FX2003 connectors provide reliable connectivity that withstands mechanical vibration and environmental stresses. This makes them suitable for heavy-duty industrial machinery and automation setups where precision motor control and braking are critical. Their current rating options, ranging from 1A to 10A and beyond, allow for versatile application across different motor types and power levels.

Packaging in sturdy carton boxes ensures that these connectors are delivered safely, and with a supply ability of 1000 pieces per day, orders can be fulfilled promptly. The typical delivery time of 1-3 working days supports urgent project timelines, while flexible payment terms such as T/T and PayPal facilitate smooth transactions. The minimum order quantity of 100 pieces is ideal for manufacturing batches or stocking for maintenance and repair operations.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are perfectly suited for a wide range of industrial applications, including robotics, CNC machinery, automated assembly lines, and any system employing AC brushless servo motors, AC servo drives, or hydraulic brake motors. Their durable design, multiple configurations, and certified quality make them a dependable choice for engineers and technicians seeking efficient and secure motor connections.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are expertly designed for seamless integration with AC Brushless Servo Motor systems and Electro Hydraulic Servo applications. Manufactured in China with strict adherence to CE and ISO9001 certifications, these connectors ensure high reliability and performance.

We offer a variety of termination types including Crimp and Solder to meet your specific assembly needs. Available in multiple gender configurations—8pin, 4PIN, 6PIN, 12PIN, and 17PIN—and matching number of contacts, our connectors provide versatile solutions for diverse AC Brushless Servo Motor setups.

The contact plating options include both Silver and Golded Pins, ensuring optimal conductivity and corrosion resistance. Compatible wire gauges range from 18-24 AWG or more, accommodating AWG 3-12 diameter cables for flexible wiring requirements.

With a minimum order quantity of 100 pieces, we package all products securely in carton boxes to guarantee safe delivery. Our supply ability is robust at 1000 pcs/day, and we offer a swift delivery time of 1-3 working days to meet your project deadlines.

Payment terms are flexible, accepting both T/T and PayPal methods. Trust our product customization services to provide tailored Servo Motor Connectors that enhance the efficiency and durability of your AC Brushless Servo Motor and Electro Hydraulic Servo systems.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor applications. These connectors ensure secure electrical transmission and are compatible with a wide range of servo motors and controllers.

For technical support, please ensure you have the product model number and specifications available to assist our support team in providing accurate guidance. Our support services include troubleshooting assistance, product installation guidance, and maintenance tips to maximize the performance and longevity of your servo motor connectors.

We also offer comprehensive services such as connector customization, repair, and replacement parts to meet your specific application requirements. Our team is dedicated to delivering timely and effective solutions to minimize downtime and optimize system reliability.

For detailed product documentation, technical datasheets, and installation manuals, please refer to our official resources. Adhering to the recommended installation procedures and operating conditions will ensure optimal functionality of your servo motor connectors.

Should you require further assistance with your servo motor connectors, our technical experts are available to provide support through various channels to address your inquiries and technical challenges.
