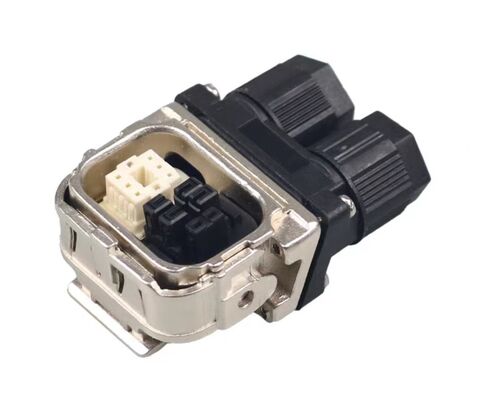

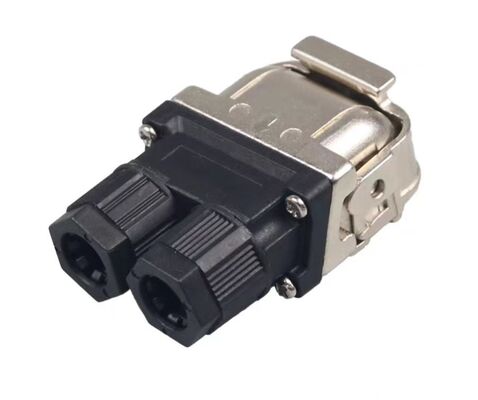

Dual-Output Low-Conduction 1000V Servo Motor Connector and Servo Motor Plug for Industrial Automation

Product Description:

The 6FX2003 Servo Motor Connectors are precision-engineered components designed to meet the demanding requirements of modern industrial automation systems. Crafted from high-quality metal and plastic materials, these connectors combine durability and reliability, ensuring long-lasting performance in various applications. Their robust construction makes them ideal for use with AC Servo Drive systems, AC Servo Motor Drivers, and AC Brushless Servo Motors, where consistent and secure electrical connections are critical for optimal operation.

One of the standout features of the 6FX2003 connectors is their versatile current rating, which can handle from as low as 1A up to 10A and beyond. This wide range allows them to be perfectly suited for different power needs, accommodating various sizes and types of servo motors without compromising on safety or efficiency. Whether you are dealing with low-power control signals or higher current power lines, these connectors ensure stable transmission and minimal electrical resistance, contributing to overall system reliability.

The termination types available for the 6FX2003 connectors include both crimp and solder options. This flexibility caters to different assembly preferences and requirements, making installation straightforward and adaptable to existing manufacturing processes. Crimp termination ensures a quick and reliable mechanical and electrical connection without the need for heat, while solder termination provides a strong, permanent bond that is highly resistant to vibration and mechanical stress. This adaptability is particularly beneficial when integrating the connectors with AC Servo Motor Drivers or AC Brushless Servo Motors, where precision and durability are paramount.

Contact plating is another critical aspect of the 6FX2003 connectors. Featuring silver and gold-plated pins, these connectors offer superior conductivity and corrosion resistance. Silver plating enhances conductivity, reducing contact resistance and improving signal integrity, which is vital for the accurate transmission of control signals in AC Servo Drive systems. Meanwhile, the gold-plated pins provide excellent corrosion resistance and durability, ensuring consistent performance even in harsh environmental conditions. This combination of plating materials guarantees reliable electrical contacts, reducing maintenance needs and extending the lifespan of the connectors.

Designed with ease of use in mind, the 6FX2003 connectors ensure secure and stable connections that can withstand the vibrations and mechanical stresses commonly encountered in industrial environments. Their compact design allows for efficient space utilization within control cabinets and motor assemblies, making them an excellent choice for engineers and technicians working with AC Servo Motor Drivers and AC Brushless Servo Motors. The connectors’ compatibility with various cable sizes and their robust locking mechanisms further enhance their suitability for demanding servo motor applications.

In summary, the 6FX2003 Servo Motor Connectors deliver a perfect blend of material quality, electrical performance, and installation flexibility. Their metal and plastic construction ensures durability, while their current ratings of 1A, 10A, and beyond accommodate a wide range of servo motor applications. The availability of both crimp and solder termination types allows for versatile assembly options, and the silver and gold-plated contact pins provide exceptional conductivity and corrosion resistance. Ideal for use with AC Servo Drive systems, AC Servo Motor Drivers, and AC Brushless Servo Motors, these connectors are an essential component for achieving reliable, high-performance motor control solutions in industrial automation.

Features:

• Product Name: Servo Motor Connectors
• Available Genders and Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Voltage Rating: 1000V
• Contact Plating Options: Silver Pin, Golded Pin
• Termination Type: Crimp and Solder
• Designed for Electro Hydraulic Servo applications
• Compatible with Hydraulic Brake Motors
• Ideal for use in Hydraulic Brake Motors systems

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to provide reliable and efficient connectivity solutions for various servo motor applications. Originating from China and certified with CE and ISO9001, these connectors meet stringent quality standards, ensuring their suitability for industrial and commercial use. With a supply ability of 1000 pcs per day and a minimum order quantity of 100, these connectors are readily available for bulk procurement. Their packaging in sturdy carton boxes guarantees safe transportation and delivery within 1-3 working days. Payment can be conveniently made via T/T or PayPal, facilitating smooth business transactions.

These servo motor connectors are compatible with a wide range of servo motors including Brushless Servo Motor, DC Servo Motor Drive, and High Torque DC Servo Motor systems. They support various current ratings from 1A to 10A and beyond, making them versatile for different power requirements. Constructed from durable metal and plastic materials, these connectors ensure long-lasting performance and resistance to wear and tear in demanding environments.

Available in multiple configurations, including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN contacts, these connectors accommodate diverse wiring needs. They support wire gauges ranging from 18-24 AWG and even larger diameters from AWG 3 to 12, providing flexibility for different cable sizes. The insulation resistance specifications for 6PIN and 7PIN options further enhance the safety and reliability of electrical connections.

The NO MARK 6FX2003 servo motor connectors are ideal for use in various application occasions and scenarios. In industrial automation, they facilitate precise control and power transmission for Brushless Servo Motors used in CNC machines, robotics, and assembly lines. For DC Servo Motor Drive systems, these connectors ensure stable signal and power delivery, essential for maintaining motor performance and efficiency. High Torque DC Servo Motors, often employed in heavy-duty machinery and equipment, benefit from the robust electrical connections these connectors provide, minimizing downtime and enhancing operational reliability.

Moreover, these connectors are widely used in automotive systems, aerospace applications, and home automation where reliable motor control is critical. Their ability to handle different pin configurations and wire gauges makes them adaptable to custom setups and complex wiring requirements. The combination of high-quality materials, certification, and design flexibility makes the NO MARK 6FX2003 servo motor connectors a preferred choice for engineers and manufacturers seeking dependable connectivity solutions for Brushless Servo Motor, DC Servo Motor Drive, and High Torque DC Servo Motor applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and reliability. Manufactured in China under the brand name NO MARK, these connectors are certified with CE and ISO9001, ensuring excellent performance in industrial automation applications.

Constructed from durable metal and plastic materials, these connectors feature contact plating options including silver and gold-plated pins for optimal conductivity. Available in multiple configurations such as 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin, they are perfectly suited for use with DC Servo Motor Drive systems and Brushless Servo Motor setups.

We offer a minimum order quantity of 100 pieces, with a supply ability of 1000 pcs per day to meet your production demands. Our packaging is secure, using sturdy carton boxes to ensure safe delivery. Orders are processed with a fast delivery time of 1-3 working days, and we accept payment terms via T/T and PayPal.

Customize your servo motor connectors to perfectly fit your DC Servo Motor Drive needs and enhance the efficiency of your Brushless Servo Motor operations. Contact us today to discuss your specific requirements and benefit from our reliable, high-quality connector solutions.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for high-performance servo motor systems. To ensure optimal operation, please follow the installation guidelines carefully and verify all connections before powering the system.

For troubleshooting, inspect connectors for any signs of wear, corrosion, or damage. Ensure that the connectors are properly seated and locked in place. If you experience intermittent signal issues or power loss, re-seat the connectors and check the wiring continuity.

We recommend regular maintenance checks to clean the connectors using appropriate contact cleaners and to inspect for any mechanical stresses or environmental damage. Replacement of connectors should be done using genuine parts to maintain system integrity and performance.

For technical assistance, refer to the product manual for detailed wiring diagrams, specifications, and installation procedures. Our support team is available to help resolve any issues related to compatibility, configuration, and performance optimization.

Additionally, we offer services including connector customization, application consultation, and on-site support to ensure your servo motor systems operate efficiently and reliably. Please consult our service offerings for more information on how we can assist with your specific needs.
