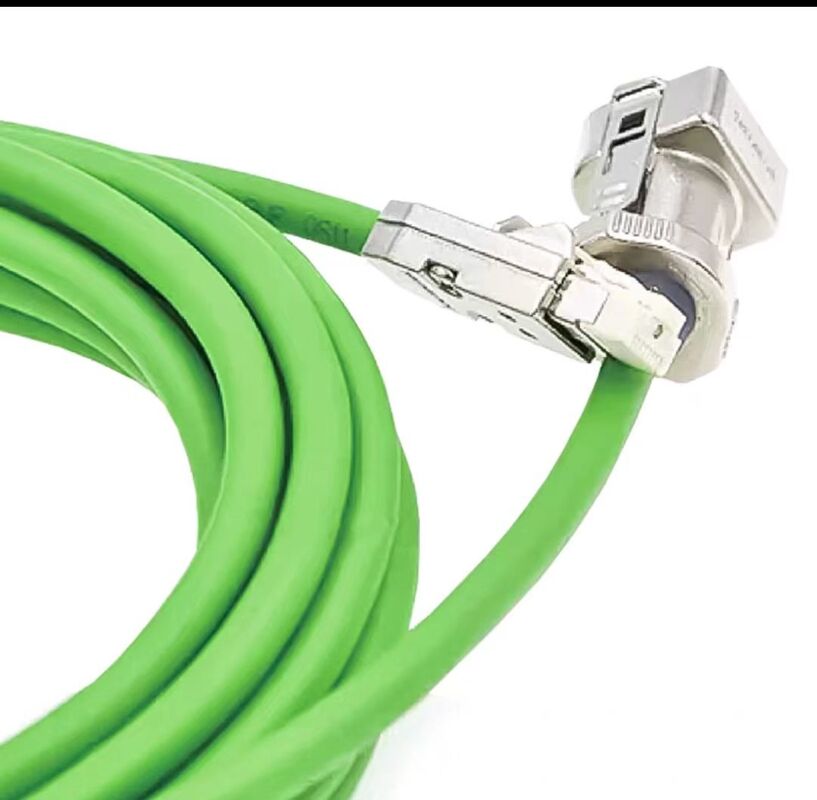

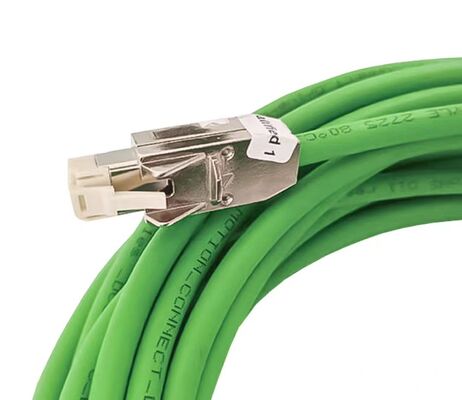

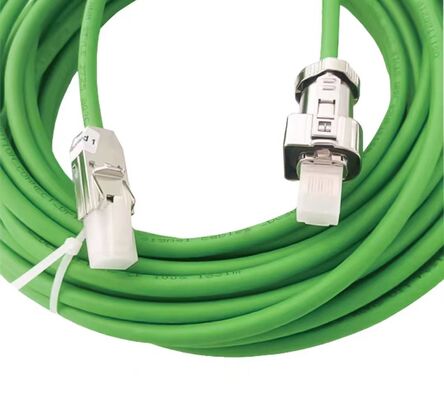

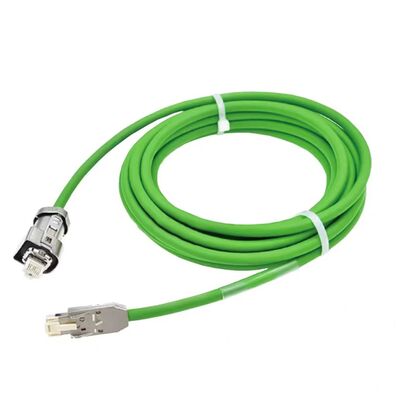

Suitable for servo S120 828D encoder cable 6FX5002/8002-2DC10-1FA0/1BA0

Product Description:

The 6FX2003 Servo Motor Connectors are expertly designed components that provide reliable and efficient connectivity solutions for a broad range of servo motor applications. Constructed using a combination of high-quality metal and durable plastic materials, these connectors ensure excellent mechanical strength and electrical conductivity, making them ideal for demanding industrial environments. Their robust build allows them to withstand rigorous usage while maintaining consistent performance, which is essential in applications involving Hydraulic Brake Motors, AC Brushless Servo Motors, and Electro Hydraulic Servo systems.

One of the standout features of the 6FX2003 series is the variety of contact configurations available. These connectors come with multiple pin options including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin arrangements, allowing for versatile application across different motor types and control systems. This wide range of contact numbers ensures that users can select the perfect connector to match their specific wiring and signal requirements, enhancing system integration and minimizing installation complexity.

The termination types offered with the 6FX2003 connectors include both crimp and solder options. This flexibility in termination methods caters to various assembly preferences and technical needs. Crimp termination provides a secure mechanical and electrical connection that is quick and reliable, ideal for high-volume production or field service. On the other hand, solder termination offers enhanced electrical continuity and is often preferred in applications where vibration resistance and long-term durability are critical. This adaptability makes the 6FX2003 connectors suitable for a multitude of servo motor setups including those found in advanced AC Brushless Servo Motor configurations.

Operating performance under extreme conditions is a critical factor for servo motor connectors, and the 6FX2003 excels in this area with an impressive operating temperature range from -40℃ to +105℃. This wide temperature tolerance ensures that the connectors function reliably in harsh environments, whether in cold outdoor installations or high-heat industrial processes. Such resilience is particularly valuable in Electro Hydraulic Servo systems and Hydraulic Brake Motors, where temperature fluctuations can be significant and connector failure is not an option.

Furthermore, the metal and plastic materials used in the 6FX2003 connectors are selected to provide optimal electrical insulation and corrosion resistance. The metal contacts guarantee low resistance and stable signal transmission, while the plastic housing protects against environmental factors such as dust, moisture, and mechanical impact. This combination is essential for maintaining the integrity and longevity of connections in servo motor applications that demand precision and durability.

In summary, the 6FX2003 Servo Motor Connectors are a comprehensive solution for engineers and technicians working with Hydraulic Brake Motors, AC Brushless Servo Motors, and Electro Hydraulic Servo systems. Their versatile pin configurations, flexible termination options, rugged material construction, and wide operating temperature range make them an excellent choice for ensuring reliable electrical connections. Whether used in manufacturing, automation, or heavy machinery control, these connectors deliver consistent performance and durability, helping to optimize motor functionality and system efficiency.

Features:

• Product Name: Servo Motor Connectors
• Material: Metal/Plastic
• Application: Industrial Automation
• Operating Temperature: -40℃ To +105℃
• Wire Gauge: 18-24 AWG Or More AWG 3-12 Diameter
• Mounting Type: Panel Mount/Cable Mount
• Compatible with Brushless Servo Motor systems
• Ideal for AC Servo Motor Driver connections
• Supports reliable connection for AC Servo Motor Driver applications

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are precision-engineered connectors originating from China, designed to meet the demanding requirements of various servo motor applications. Certified with CE and ISO9001 standards, these connectors ensure reliable performance and quality assurance, making them an ideal choice for industrial and automation systems.

These connectors support a wide range of termination types, including crimp and solder, accommodating different installation preferences and ensuring secure and stable connections. With multiple gender options such as 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin configurations, these connectors cater to diverse wiring needs. They are compatible with wire gauges ranging from 18-24 AWG or even larger diameters between AWG 3-12, providing flexibility for various current ratings from 1A up to 10A and beyond.

In practical applications, NO MARK Servo Motor Connectors are widely used with High Torque DC Servo Motors, where precise and reliable connections are critical for controlling motor speed and position. Their robust design also makes them suitable for Hydraulic Brake Motors, where durability and resistance to harsh operating environments are essential. Additionally, these connectors are commonly employed in AC Servo Motor Drivers, ensuring efficient power transmission and signal integrity in sophisticated automation equipment.

With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, NO MARK can efficiently serve both small-scale and large-scale production needs. The product is packaged securely in carton boxes to protect the connectors during shipment. Customers benefit from a fast delivery time of 1-3 working days and flexible payment terms including T/T and PayPal, making procurement hassle-free and timely.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are well-suited for industrial automation, robotics, manufacturing machinery, and other scenarios where reliable electrical connections to servo motors and drivers are paramount. Their versatility in pin configurations, current ratings, and wire compatibility makes them a dependable choice for engineers and system integrators focused on high-performance servo motor control solutions.

Customization:

Our 6FX2003 Servo Motor Connectors, branded NO MARK and originating from China, offer exceptional customization services tailored to meet your specific needs. Certified with CE and ISO9001, these connectors are designed for reliable performance in industrial automation applications.

With a mounting type available in both Panel Mount and Cable Mount options, and constructed from durable metal and plastic materials, the 6FX2003 connectors support a voltage rating of up to 1000V. Ideal for Brushless Servo Motor systems, including AC Brushless Servo Motor setups, these connectors ensure optimal connectivity and efficiency.

We cater to a minimum order quantity of 100 units, with a supply ability of 1000 pcs/day, ensuring timely fulfillment of your requirements. Packaging is done securely in carton boxes to maintain product integrity during transit.

Our delivery time ranges from 1 to 3 working days, and we accept payment terms via T/T and PayPal for your convenience. Trust our 6FX2003 Servo Motor Connectors to provide the perfect connection solution for your Brushless Servo Motor needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for various servo motor applications. We offer comprehensive technical support to ensure optimal performance and ease of integration with your systems.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips. Our team of experts is available to help you understand connector specifications, compatibility, and wiring configurations to meet your specific requirements.

We also provide detailed documentation, including datasheets, wiring diagrams, and application notes, to support your engineering and design processes. For custom solutions or special requests, our engineering support can collaborate with you to develop connectors tailored to your unique needs.

Additionally, we offer repair and replacement services to minimize downtime and maintain the reliability of your servo motor systems. Our goal is to ensure that your Servo Motor Connectors deliver consistent performance and contribute to the success of your projects.
