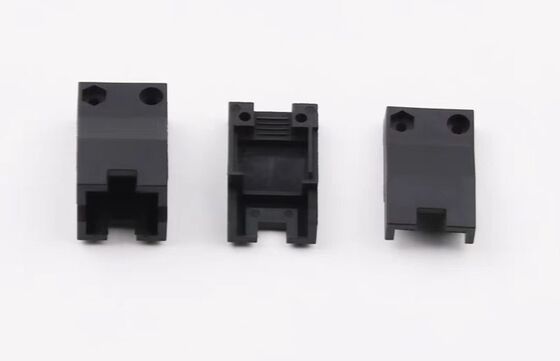

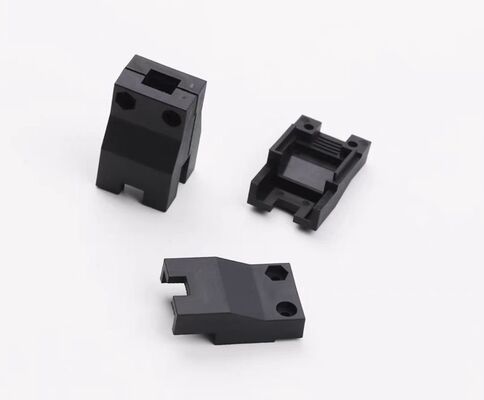

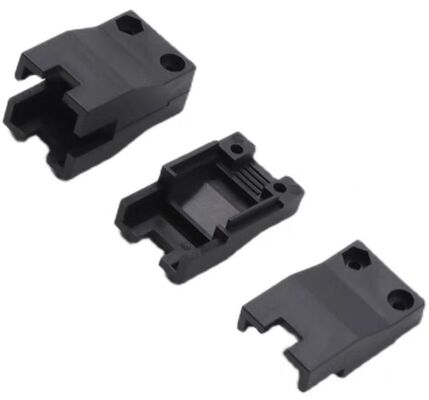

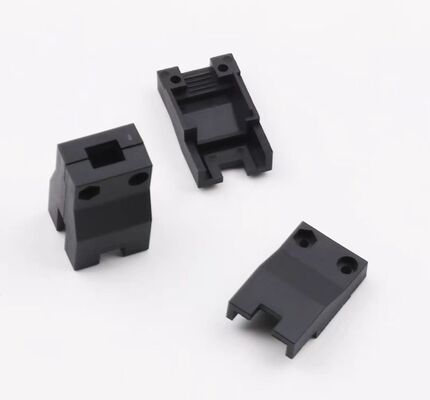

6-Pin 9-Pin 15-Pin Male and Female Universal Servo Motor Connector with Silver and Gold-Plated Contacts for Servo Encoder Connector

Product Description:

The Servo Motor Connectors are specially designed components that provide reliable and efficient connectivity solutions for various servo motor applications, particularly in the field of industrial automation. These connectors are engineered to meet the rigorous demands of modern AC Brushless Servo Motor systems, ensuring optimal performance and durability in both panel mount and cable mount configurations.

One of the standout features of these Servo Motor Connectors is their versatile mounting options. Available in both panel mount and cable mount types, they offer flexibility for different installation environments. The panel mount connectors are ideal for fixed installations on control panels or machinery, providing a secure and stable connection point. On the other hand, cable mount connectors are designed for direct attachment to cables, facilitating easy and quick connections in dynamic setups where movement or frequent disconnections may be necessary.

The connectors boast superior contact plating to guarantee excellent electrical conductivity and resistance to corrosion. With options including silver-plated contacts and gold-plated pins, these connectors ensure minimal contact resistance and enhanced signal integrity. The silver plating provides robust durability and excellent conductivity, which is critical in high-power applications, while the gold-plated pins offer exceptional corrosion resistance and reliable performance even in harsh industrial environments.

Designed specifically as servo motor connectors, these components are optimized for use with AC Brushless Servo Motors and Electro Hydraulic Servo systems. This specialization ensures that the connectors meet the unique electrical and mechanical requirements of servo motor applications, including high current capacity, precise signal transmission, and robust mechanical stability. The connectors support both 6-pin and 7-pin configurations, catering to different wiring schemes and control signal needs, which is crucial for complex industrial automation setups.

In terms of insulation resistance, these connectors provide outstanding protection against electrical leakage and shorts, which is essential for maintaining system reliability and safety. The insulation resistance specifications for the 6-pin and 7-pin variants are carefully designed to withstand the demanding electrical stresses encountered in industrial environments. This feature ensures the longevity of both the connectors and the connected servo motor systems, minimizing downtime and maintenance costs.

Applications of these Servo Motor Connectors are predominantly found in industrial automation, where precision control and reliable power transmission are paramount. They are widely used in robotic arms, CNC machinery, automated assembly lines, and other equipment requiring precise motor control. The compatibility with AC Brushless Servo Motors and Electro Hydraulic Servo systems makes them indispensable in modern manufacturing and process automation industries, where efficiency and accuracy are critical.

Furthermore, the design and construction of these connectors emphasize durability and ease of use. The connectors are built to withstand harsh industrial conditions, including exposure to dust, moisture, and mechanical vibrations. The robust housing materials and secure locking mechanisms ensure that connections remain intact even in challenging operational environments. This reliability is vital for maintaining continuous operation and preventing costly production interruptions.

In summary, the Servo Motor Connectors combine versatility, durability, and high performance to serve the demanding needs of industrial automation applications involving AC Brushless Servo Motors and Electro Hydraulic Servo systems. Their panel mount and cable mount options, along with silver and gold contact plating, provide tailored solutions for various installation and operational requirements. With excellent insulation resistance and support for multiple pin configurations, these connectors are an essential component for achieving reliable and efficient servo motor connectivity in modern industrial setups.

Features:

• Product Name: Servo Motor Connectors (6FX2003)
• Operating Temperature Range: -40℃ to +105℃
• Insulation Resistance Options: 6PIN and 7PIN
• Available Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Termination Type: Crimp and Solder
• Compatible with Brushless Servo Motor applications
• Suitable for DC Servo Motor Drive systems
• Ideal for AC Servo Motor Driver connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are high-quality connectors designed specifically for use with DC Servo Motor Drive systems and Electro Hydraulic Servo applications. Manufactured in China under strict quality control and certified by CE and ISO9001, these connectors ensure reliable performance and durability in various industrial environments. Their robust construction, combining metal and plastic materials, guarantees excellent insulation resistance and long-lasting mechanical stability, making them ideal for demanding servo motor drive connections.

These connectors are widely used in scenarios where precise control and efficient power transmission are critical. For instance, in DC Servo Motor Drive setups, the connectors provide secure and stable electrical connections that support high-speed motor operations and accurate feedback signals. Similarly, in Electro Hydraulic Servo systems, which require precise hydraulic control combined with electronic feedback, these connectors facilitate seamless integration between electronic controllers and hydraulic actuators, ensuring smooth and responsive motion control.

The product caters to various connector configurations with options including 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN genders, making it versatile enough to suit different servo motor wiring requirements. The termination type can be either crimp or solder, allowing flexibility in assembly and installation processes. Furthermore, the connectors operate reliably within a wide temperature range of -40℃ to +105℃, which makes them suitable for harsh industrial environments, including outdoor installations and heavy machinery operation.

With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, NO MARK ensures timely delivery within 1-3 working days, packaged securely in carton boxes to prevent damage during transit. Payment terms are flexible, supporting both T/T and PayPal, facilitating smooth purchasing experiences for clients worldwide.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are perfect for applications involving DC Servo Motor Drive and Electro Hydraulic Servo systems, offering reliable electrical connections, durability, and adaptability to diverse industrial scenarios. Their certification, robust material composition, and wide operating temperature range make them an excellent choice for engineers and technicians seeking dependable servo motor connector solutions.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards for AC Brushless Servo Motor applications. Manufactured in China under the renowned brand NO MARK, these connectors are CE and ISO9001 certified, ensuring reliable performance and quality.

We offer customization services to cater to various requirements, including connector types specifically for AC Brushless Servo Motor systems. Available connector options include 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN configurations, with termination types of Crimp or Solder to suit your assembly needs. The contact plating options feature Silver or Golded Pins to provide optimal conductivity and resistance to corrosion.

The insulation resistance is carefully designed for 6PIN and 7PIN versions to guarantee safe and efficient operation within your AC Brushless Servo Motor setups. We maintain a supply ability of 1000 pcs/day, with a minimum order quantity of 100 pieces, packed securely in carton boxes to ensure safe delivery.

Our delivery time is quick, typically within 1-3 working days, and we support flexible payment terms including T/T and PayPal. Whether you require standard configurations or customized solutions for your AC Brushless Servo Motor connectors, we are equipped to provide high-quality products tailored to your needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for your servo motor systems. For technical support, please ensure that you have the model number and specifications of your connectors ready. Our support team can assist with installation guidance, troubleshooting, compatibility questions, and maintenance tips to ensure optimal performance.

We offer comprehensive services including product selection assistance, custom configuration options, and replacement parts to meet your specific requirements. Our experts are committed to helping you maximize the efficiency and lifespan of your servo motor connectors.

For detailed documentation, including datasheets, wiring diagrams, and installation manuals, please refer to the resources section on our website. Regular updates and firmware support are also available to keep your systems running smoothly.

Should you encounter any issues or require further assistance, our technical support team is ready to provide prompt and professional service to resolve your concerns effectively.
