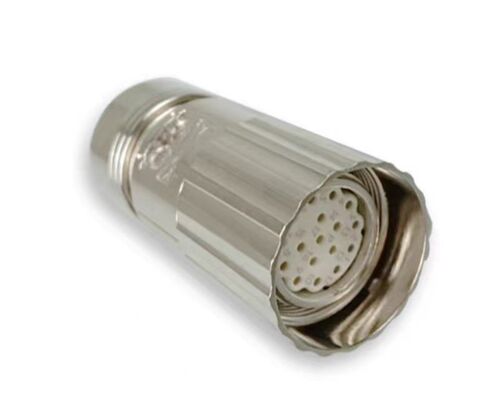

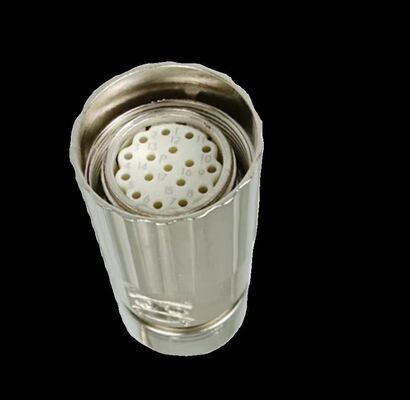

17-pin 1000V Servo Motor Connector M23 Connector with Crimp/Solder Termination for Industrial Automation

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connectivity in high-performance servo motor applications. Specifically engineered to support High Torque DC Servo Motor systems, these connectors play a crucial role in maintaining the seamless operation of DC Servo Motor Drive setups. Their robust design and versatile features make them ideal for both industrial and commercial applications where precision and durability are paramount.

One of the standout characteristics of these Servo Motor Connectors is their compatibility with a wide range of wire gauges, accommodating from 18 to 24 AWG or even larger wire sizes, including AWG 3-12 diameter wires. This broad spectrum of wire gauge compatibility allows for flexible integration with various DC Servo Motor Drive systems, facilitating optimal power transmission and signal integrity. Whether you are working on compact servo motors or larger, high torque units, these connectors provide the necessary adaptability to suit your requirements.

The connectors feature high-quality contact plating options, including silver and gold-plated pins. The silver plating ensures excellent conductivity and resistance to corrosion, which is vital for maintaining stable connections in demanding environments. The gold-plated pins, on the other hand, offer superior corrosion resistance and enhanced electrical conductivity, making them perfect for applications requiring the utmost reliability and signal clarity. This dual plating option ensures that users can select the best connector type based on their specific operational needs and environmental conditions.

Manufactured using a combination of metal and plastic materials, these Servo Motor Connectors are designed to deliver a balance of strength, durability, and insulation. The metal components provide structural integrity and resistance to mechanical stress, while the plastic parts offer excellent electrical insulation and protection against environmental factors such as moisture and dust. This combination ensures that the connectors can withstand the rigors of continuous use in industrial settings without compromising performance.

In terms of termination, these connectors support both crimp and solder termination types. Crimp termination offers a quick and reliable method for attaching wires, ensuring strong mechanical and electrical connections without the need for heat. This makes it ideal for field installations and situations where time efficiency is crucial. Solder termination, on the other hand, provides a permanent and highly secure connection, favored in applications where vibration resistance and long-term reliability are critical. The availability of both termination options gives users the flexibility to choose the method that best suits their installation and maintenance preferences.

Mounting versatility is another key feature of these Servo Motor Connectors. They are available in both panel mount and cable mount configurations, allowing for easy integration into various system designs. Panel mount connectors can be securely fixed onto control panels or equipment enclosures, providing a stable interface for connecting the DC Servo Motor Drive. Cable mount connectors, meanwhile, offer mobility and convenience by attaching directly to cables, facilitating flexible routing and connection of servo motor wiring in dynamic environments. This dual mounting option enhances the adaptability of the connectors across different application scenarios.

Overall, Servo Motor Connectors are indispensable components for ensuring efficient and reliable connections in High Torque DC Servo Motor systems and DC Servo Motor Drive applications. Their wide wire gauge compatibility, superior contact plating, durable metal/plastic construction, flexible termination types, and versatile mounting options collectively contribute to their outstanding performance and longevity. Whether deployed in robotics, automation, or precision control systems, these connectors provide the dependable connectivity required to maximize the efficiency and functionality of DC Servo Motor Drive technologies.

Features:

• Product Name: Servo Motor Connectors
• Compatible Wire Gauge: 18-24 AWG or More, AWG 3-12 Diameter
• Material: Durable Metal and Plastic Construction
• Insulation Resistance Options: Available in 6PIN and 7PIN Configurations
• Mounting Type: Supports Panel Mount and Cable Mount Installations
• Application: Ideal for Industrial Automation Systems
• Suitable for High Torque DC Servo Motor Connections
• Compatible with AC Brushless Servo Motor Setups
• Designed for Reliable Use with Brushless Servo Motor Equipment

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specifically designed to meet the rigorous demands of various industrial and automation applications. These connectors are perfectly suited for use with AC Servo Motor Drivers and AC Servo Drives, providing reliable and efficient electrical connections essential for precise motion control systems. Their robust design and high voltage rating of 1000V ensure safe and stable performance even in high-power environments.

One of the primary application occasions for the 6FX2003 model is within automated manufacturing lines where AC Servo Motor Drivers are employed to control robotic arms, CNC machines, and conveyor systems. The connector’s termination type, which supports both crimp and solder methods, offers flexibility for different installation preferences and ensures secure connections that withstand continuous operation under varying mechanical stresses.

The 6FX2003 connectors are also ideal for use in harsh industrial environments due to their wide operating temperature range from -40℃ to +105℃. This makes them especially suitable for outdoor servo motor applications or indoor setups where temperature fluctuations are common. They can be found in sectors such as automotive manufacturing, packaging machinery, and textile production, where reliable AC Servo Drives are critical for maintaining high precision and productivity.

From a supply perspective, NO MARK guarantees fast and efficient delivery with a supply ability of 1000 pieces per day and a delivery time of just 1-3 working days. The product is packaged securely in carton boxes to ensure safe transportation. Additionally, the connectors carry CE and ISO9001 certifications, affirming their compliance with international quality and safety standards.

With a minimum order quantity of 100 units and flexible payment terms including T/T and PayPal, the 6FX2003 Servo Motor Connectors are accessible for both small and large-scale operations. Their compatibility with AC Servo Motor Drivers and AC Servo Drives makes them a vital component in modern automation systems, ensuring seamless integration and optimal performance across various industrial scenarios.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under strict CE and ISO9001 certifications, these connectors are ideal for use with High Torque DC Servo Motor, DC Servo Motor Drive, and AC Servo Motor Driver applications.

Constructed from durable metal and plastic materials, the 6FX2003 connectors support a voltage rating of up to 1000V, ensuring reliable operation in demanding environments. Available in various gender configurations including 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN, they provide versatile connectivity options for both panel mount and cable mount installations.

We offer a minimum order quantity of 100 pieces, with a supply ability of up to 1000 pcs per day to meet your production needs. Each order is carefully packaged in carton boxes to ensure safe delivery, with a typical delivery time of 1-3 working days.

Payment terms are flexible, accepting T/T and PayPal to accommodate different purchasing preferences. Although the price is currently not available, our team is ready to provide detailed quotations upon request.

Choose the 6FX2003 Servo Motor Connectors for dependable performance and seamless integration with your High Torque DC Servo Motor, DC Servo Motor Drive, and AC Servo Motor Driver systems.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems, ensuring optimal performance and durability in various industrial applications. These connectors feature robust construction with high-quality materials to withstand harsh environments and continuous operation.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips to maximize the lifespan and efficiency of your servo motor systems. Our expert team is available to help you understand connector specifications, compatibility, and wiring configurations to ensure seamless integration with your equipment.

We also offer comprehensive services such as customization options to meet specific requirements, testing and validation support, and firmware updates where applicable. Our commitment is to provide you with the highest level of technical expertise and customer care to keep your servo motor systems running smoothly and reliably.
