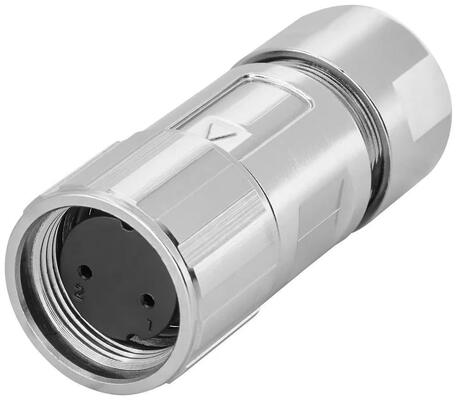

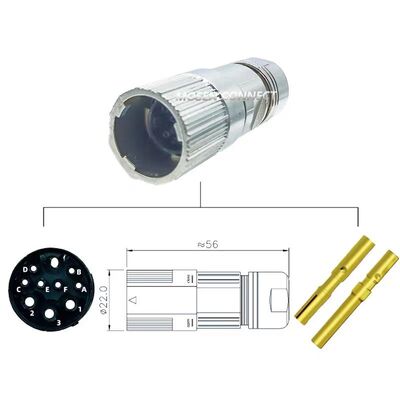

6FX2003 V90 Servo Motor Connector 8 Pin Servo Connector for Industrial Automation

Product Description:

The 6FX2003 Servo Motor Connectors are engineered to provide reliable and robust connections for a wide range of servo motor applications, including High Torque DC Servo Motor systems and AC Servo Motor Driver setups. These connectors are meticulously designed to ensure optimal performance and durability, making them an ideal choice for demanding industrial environments where precision and stability are paramount.

One of the standout features of the 6FX2003 series is its wide operating temperature range, from -40℃ to +105℃. This extensive temperature tolerance ensures that the connectors can function reliably in a variety of harsh conditions, whether exposed to extreme cold or intense heat. This characteristic is particularly beneficial for applications involving AC Servo Drive systems that operate in environments with fluctuating temperatures, maintaining consistent electrical connectivity without degradation.

The 6FX2003 connectors come in multiple configurations to suit various design requirements, featuring options for 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN contact arrangements. This variety allows engineers and technicians to select the exact connector type needed based on the number of contacts necessary for their specific servo motor or drive system. Whether you are working with compact High Torque DC Servo Motors or more complex AC Servo Motor Drivers, the 6FX2003 connectors provide the flexibility and adaptability required for seamless integration.

In addition to the diverse pin configurations, the connectors offer versatile mounting options, including both Panel Mount and Cable Mount types. The Panel Mount option enables secure attachment to control panels or equipment housings, ensuring a stable, fixed connection point. Meanwhile, the Cable Mount variant is designed for direct integration with cables, facilitating streamlined wiring setups and reducing installation time. These mounting options are designed to accommodate various industrial setups and user preferences, contributing to ease of installation and maintenance.

Durability and reliability are at the core of the 6FX2003 connectors' design. The connectors are constructed from high-quality materials that resist corrosion, mechanical stress, and wear, which is essential for maintaining signal integrity and power transmission in servo motor systems. This durability is especially critical when dealing with High Torque DC Servo Motors, where consistent power delivery and signal accuracy directly impact performance and safety.

Furthermore, the connectors’ precise engineering ensures excellent electrical contact with minimal resistance, supporting the high current and voltage demands typical of AC Servo Drive applications. This level of performance helps in reducing power loss, preventing overheating, and enhancing the overall efficiency of servo motor control systems. The 6FX2003 connectors are thus a vital component in ensuring that both High Torque DC Servo Motor and AC Servo Motor Driver systems operate smoothly and reliably.

Overall, the 6FX2003 Servo Motor Connectors stand out as a comprehensive solution for connecting servo motors and their drivers. Their wide operating temperature range, multiple pin and mounting configurations, and robust construction make them suitable for a broad spectrum of industrial applications. Whether you require connectors for a compact High Torque DC Servo Motor or a sophisticated AC Servo Drive system, the 6FX2003 series offers the performance, reliability, and flexibility necessary to meet modern automation and control demands.

Features:

• Product Name: Servo Motor Connectors
• Operating Temperature: -40℃ to +105℃
• Termination Type: Crimp/Solder
• Insulation Resistance: Available in 6PIN and 7PIN configurations
• Material: Combination of Metal and Plastic for durability and insulation
• Application: Ideal for Industrial Automation systems
• Compatible with High Torque DC Servo Motor applications
• Supports AC Servo Drive connectivity
• Suitable for Hydraulic Brake Motors integration

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are engineered to meet the demanding requirements of various industrial and automation applications. Designed and manufactured in China, these connectors come with CE and ISO9001 certification, ensuring high quality and reliability in every unit. Available in multiple configurations including 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN, they provide versatile connectivity options suitable for a wide range of servo motor systems.

These connectors are ideal for use in Electro Hydraulic Servo systems where precise and reliable signal transmission is critical for controlling hydraulic actuators. Their robust insulation resistance and superior contact plating, available in both silver and gold-plated pins, guarantee stable electrical performance and long-lasting durability in harsh industrial environments. The connectors support both crimp and solder termination types, allowing flexible installation based on specific application needs.

For AC Servo Drive applications, the NO MARK 6FX2003 connectors offer excellent electrical conductivity and secure panel mount or cable mount options, making them suitable for integration into complex servo control systems. Their high supply ability of 1000 pieces per day ensures availability for large-scale production or maintenance projects. Packaged securely in carton boxes, these connectors are delivered within 1-3 working days, facilitating quick turnaround times.

With a minimum order quantity of 100 units and flexible payment terms including T/T and PayPal, these connectors are accessible for both small and large businesses. Their design prioritizes ease of installation and maintenance, contributing to reduced downtime in automated manufacturing lines. Whether used in Electro Hydraulic Servo or AC Servo Drive systems, the NO MARK 6FX2003 connectors provide a reliable solution for secure and efficient servo motor connections.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are perfectly suited for demanding servo motor applications requiring high-quality, durable, and versatile connectivity solutions. Their comprehensive features and certifications ensure that they meet the stringent requirements of modern electro hydraulic and AC servo drive technologies.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are expertly designed for use in Brushless Servo Motor, DC Servo Motor Drive, and Electro Hydraulic Servo applications. Manufactured in China under the brand NO MARK, these connectors come with CE and ISO9001 certifications, ensuring top quality and reliability.

We offer customization services tailored to your specific needs, including various termination types such as Crimp and Solder. The connectors support multiple gender configurations including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options. For insulation resistance, options for 6-pin and 7-pin are available, designed to operate efficiently within a temperature range of -40℃ to +105℃.

With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs per day, we ensure timely delivery within 1-3 working days. All orders are carefully packaged in carton boxes to protect the product during shipping. Payment terms are flexible, accepting T/T and PayPal for your convenience.

Whether you require connectors for industrial automation or specialized servo motor drives, our customization services provide the perfect solution to meet your operational demands efficiently and reliably.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems. For technical support, we offer comprehensive assistance including troubleshooting, installation guidance, and product configuration to ensure optimal performance.

Our support team is equipped to help with wiring instructions, compatibility questions, and maintenance tips to maximize the lifespan and efficiency of your servo motor connectors.

Additionally, we provide detailed product documentation, including datasheets, wiring diagrams, and application notes to assist engineers and technicians in integrating our connectors seamlessly into their systems.

For specialized service requirements, custom solutions and modifications are available upon request to meet specific application needs.
