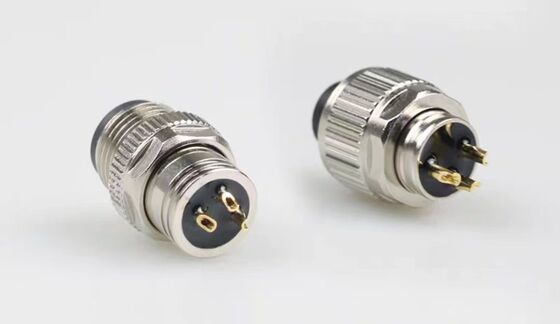

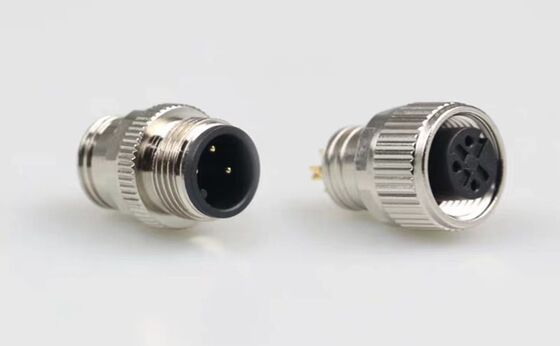

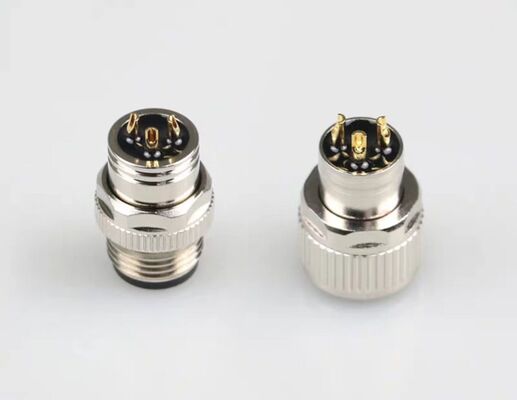

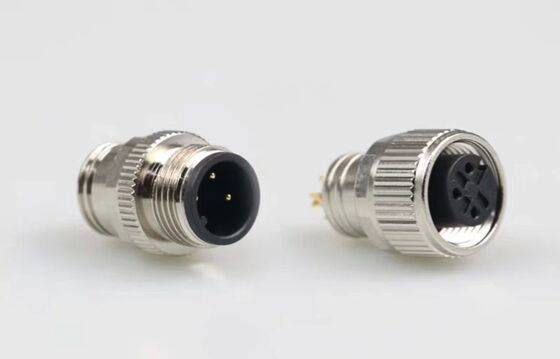

M12 connector, integral non-detachable, shielded, solder-type, waterproof male and female, 4-pin, 5-pin, 8-pin, 12-pin

Product Description:

The 6FX2003 Servo Motor Connectors are designed to deliver exceptional performance and reliability in demanding applications, making them an ideal choice for a wide range of servo motor systems, including Hydraulic Brake Motors and High Torque DC Servo Motor setups. These connectors are engineered to meet the rigorous requirements of modern industrial environments, ensuring secure and stable connections under various operating conditions.

One of the standout features of the 6FX2003 connectors is their impressive operating temperature range, spanning from -40℃ to +105℃. This wide temperature tolerance makes them suitable for use in harsh environments where temperature fluctuations are common, such as in heavy machinery or outdoor installations. Whether you are deploying these connectors in cold storage facilities or in high-heat manufacturing plants, they maintain optimal performance without compromising safety or functionality.

The 6FX2003 connectors offer versatile mounting options to accommodate different installation needs. Available in both panel mount and cable mount configurations, these connectors provide flexibility during setup, allowing for easy integration into existing systems or new designs. The panel mount version is perfect for secure and stable attachment to control panels or equipment housings, while the cable mount option facilitates streamlined cable connections in tight spaces or mobile applications.

Designed with a voltage rating of 1000V, the 6FX2003 connectors are well-suited for high-power servo motor systems. This high voltage capacity ensures safe and reliable transmission of electrical signals and power, even in applications involving high torque DC servo motors and Hydraulic Brake Motors. Users can depend on these connectors to handle demanding electrical loads without risk of breakdown or failure.

Another important feature of the 6FX2003 connectors is their availability in multiple contact configurations, including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin options. This variety allows for precise matching of the connector to the specific wiring requirements of your servo motor system. Whether your setup involves simple signal connections or complex multi-channel control, the 6FX2003 series offers an appropriate solution that ensures efficient and organized cable management.

In applications involving Hydraulic Brake Motors, the reliability and durability of the connectors are crucial. The 6FX2003 connectors provide secure locking mechanisms and robust construction materials that resist vibration, moisture, and dust ingress. This durability enhances the longevity of the connections and reduces maintenance needs, thereby improving overall system uptime and performance.

The 6FX2003 Servo Motor Connectors also contribute to system safety. Their design includes features that prevent accidental disconnection and ensure proper mating of connectors, which is vital in high torque DC servo motor applications where sudden loss of connection could lead to equipment damage or safety hazards. With these connectors, users can maintain a high level of operational safety and efficiency.

In summary, the 6FX2003 Servo Motor Connectors are a versatile and reliable choice for demanding servo motor applications, including those involving Hydraulic Brake Motors and High Torque DC Servo Motors. Their wide operating temperature range, multiple mounting options, high voltage rating, and variety of contact configurations make them adaptable to a broad spectrum of industrial needs. By choosing the 6FX2003 connectors, users ensure secure electrical connections that withstand harsh environments and deliver consistent performance, enhancing both the reliability and safety of their servo motor systems.

Features:

• Product Name: Servo Motor Connectors
• Model Number: 6FX2003
• Operating Temperature Range: -40℃ to +105℃
• Application: Industrial Automation, suitable for AC Servo Motor Driver and Hydraulic Brake Motors
• Termination Type: Crimp and Solder options available
• Contact Plating: Silver and Gold-plated Pins for enhanced conductivity
• Designed for reliable connection in AC Servo Motor Driver systems
• Compatible with Hydraulic Brake Motors for robust industrial performance

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are engineered to meet the demanding requirements of industrial automation applications. Designed with high-quality metal and plastic materials, these connectors provide reliable and durable connections for various servo motor systems including Hydraulic Brake Motors, DC Servo Motor Drive, and AC Servo Drive setups. With a voltage rating of 1000V and compatibility with wire gauges ranging from 18-24 AWG or more, as well as AWG 3-12 diameter, the 6FX2003 connectors ensure optimal electrical performance and safety in complex automation environments.

Ideal for use in industrial automation, these connectors are widely applied in machinery that requires precise motor control and feedback systems. They play a critical role in connecting servo motors to controllers in Hydraulic Brake Motors, ensuring smooth braking performance and responsive control. Similarly, in DC Servo Motor Drive systems, the 6FX2003 connectors facilitate stable power transmission and signal integrity, allowing for accurate speed and position control of motors used in manufacturing lines, robotics, and CNC machinery.

In applications involving AC Servo Drives, these connectors help maintain consistent electrical connections under varying operational conditions, supporting high-speed and high-torque motor operations. Their robust design supports continuous use in harsh industrial environments, contributing to reduced downtime and enhanced system reliability.

Manufactured in China and certified with CE and ISO9001, the NO MARK 6FX2003 Servo Motor Connectors meet international quality standards, ensuring safety and performance consistency. The product is available with a minimum order quantity of 100 pieces, packaged securely in carton boxes to prevent damage during shipping. With a supply ability of 1000 pieces per day and a delivery time of just 1-3 working days, customers can rely on quick and efficient fulfillment of orders.

Payment terms are flexible, accepting T/T and PayPal, making procurement straightforward for businesses worldwide. Whether upgrading existing servo motor systems or designing new automation setups, the NO MARK 6FX2003 connectors offer a dependable solution for connecting Hydraulic Brake Motors, DC Servo Motor Drives, and AC Servo Drives in a wide range of industrial applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to provide reliable connections for various applications including Brushless Servo Motor, DC Servo Motor Drive, and Hydraulic Brake Motors. Manufactured in China under the trusted brand NO MARK, these connectors meet CE and ISO9001 certification standards, ensuring high quality and durability.

Available in multiple gender configurations including 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN, our connectors are made from premium metal and plastic materials. They feature contact plating options with silver or gold-plated pins to guarantee excellent conductivity and corrosion resistance. Termination types include both crimp and solder, allowing for versatile installation methods.

We offer a minimum order quantity of 100 pieces, with a supply ability of 1000 pcs per day to meet your production needs. The connectors are carefully packaged in carton boxes to ensure safe delivery. Our standard delivery time is 1-3 working days, and we accept flexible payment terms including T/T and PayPal.

Choose our Servo Motor Connectors for superior performance and compatibility with your Brushless Servo Motor, DC Servo Motor Drive, and Hydraulic Brake Motors applications. Contact us today to customize your order and experience reliable connectivity solutions.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connectivity for servo motors in various industrial applications. These connectors ensure secure signal transmission and power delivery, facilitating optimal motor performance.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations to maximize the lifespan and functionality of the connectors.

We offer comprehensive services such as connector customization, compatibility verification with different servo motor models, and replacement part sourcing to meet specific customer requirements.

Our engineering team is available to provide technical consultations and support during the integration of servo motor connectors into your systems, ensuring seamless operation and adherence to industry standards.

For detailed product specifications, wiring diagrams, and application notes, please refer to the product documentation provided with each connector or available on our website.
