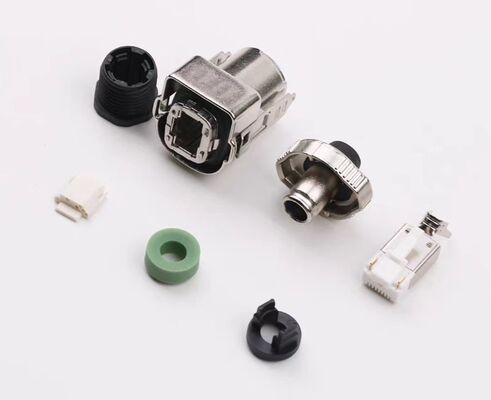

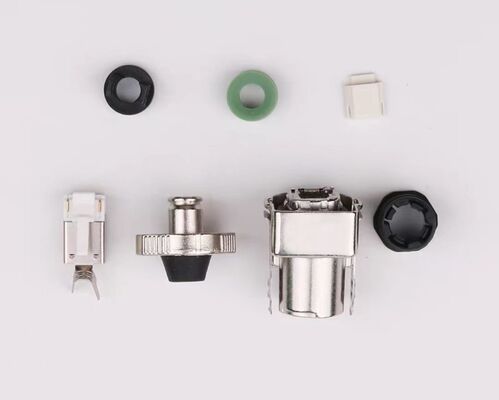

Zinc Alloy Large Head Coded RJ45 Crystal Head Servo Motor Connector IP67 6FX5002-0DM67

Compatible RJ45 Crystal Head 4/2 Zinc Alloy Large Head Coded Connector 6FX5002-0DM67 IP67

Product Description:

The Servo Motor Connectors are specifically designed to meet the demanding requirements of modern servo systems, including High Torque DC Servo Motors, AC Servo Drives, and Brushless Servo Motors. These connectors ensure reliable and efficient electrical connections, which are critical for the optimal performance and longevity of servo motor applications across various industries.

One of the standout features of these Servo Motor Connectors is their wide operating temperature range, from -40℃ to +105℃. This extensive temperature tolerance makes them suitable for use in harsh environments and extreme conditions, ensuring consistent performance whether in cold storage facilities or high-temperature industrial settings. Such resilience is essential for maintaining uninterrupted operation in servo motor systems, which often operate under continuous or heavy-duty conditions.

The connectors are designed to handle a broad range of current ratings, accommodating from as low as 1A to as high as 10A and beyond. This flexibility makes them ideal for diverse servo motor applications, from smaller High Torque DC Servo Motors requiring precise control at lower currents to more powerful AC Servo Drives and Brushless Servo Motors that demand higher current capacities for robust torque and performance. The ability to support varying current levels ensures these connectors can be used in a wide array of servo motor configurations.

Insulation resistance is a critical parameter for any connector used in servo motor systems, as it impacts safety and signal integrity. These connectors come with options for 6PIN and 7PIN configurations, providing versatility to match the specific wiring requirements of different servo motors. The high insulation resistance ensures minimal leakage currents and reduces the risk of electrical shorts or interference, which is crucial for maintaining the precision and reliability of servo motor control signals.

Termination types for these Servo Motor Connectors include both crimp and solder options, catering to different assembly preferences and application needs. Crimp termination offers a quick and reliable connection method that is often favored in automated production lines due to its consistency and ease of use. On the other hand, solder termination provides a secure and durable connection that can enhance conductivity and mechanical strength, especially in applications subjected to vibration or mechanical stress. This dual termination option allows engineers and technicians to select the most appropriate method based on their specific installation and maintenance requirements.

Contact plating is another critical aspect of these connectors, with options including silver-plated and gold-plated pins. Silver plating is known for its excellent electrical conductivity and cost-effectiveness, making it suitable for general servo motor applications where reliable signal transmission and power delivery are essential. Gold-plated pins, however, offer superior corrosion resistance and longevity, which is particularly beneficial in environments prone to oxidation or where long-term reliability is paramount. This choice of contact plating ensures that the connectors provide optimal electrical performance and durability, regardless of the operational environment.

Overall, the Servo Motor Connectors are engineered to support the sophisticated demands of High Torque DC Servo Motors, AC Servo Drives, and Brushless Servo Motors with precision and reliability. Their robust construction, wide operating temperature range, versatile current ratings, high insulation resistance, multiple termination methods, and premium contact plating options collectively make them an indispensable component for modern servo motor systems. Whether used in industrial automation, robotics, or advanced manufacturing processes, these connectors contribute significantly to the efficient and stable operation of servo motors, ensuring that they deliver the necessary torque, speed, and control with minimal downtime or maintenance.

Features:

• Product Name: Servo Motor Connectors (6FX2003)
• Termination Type: Crimp and Solder options available
• Material: Durable Metal and Plastic construction
• Current Rating: Supports from 1A up to 10A and beyond
• Mounting Type: Suitable for Panel Mount and Cable Mount applications
• Compatible with DC Servo Motor Drive systems
• Ideal for AC Servo Drive integration
• Ensures reliable connections for DC Servo Motor Drive setups

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed specifically for demanding industrial automation applications. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure high reliability and quality, making them an ideal choice for various servo motor systems including Electro Hydraulic Servo, Brushless Servo Motor, and AC Servo Motor Driver setups.

These connectors support both panel mount and cable mount installation types, providing flexibility to fit different system configurations. With contact plating options featuring silver and gold-plated pins, the connectors deliver excellent conductivity and resistance to corrosion, ensuring stable and efficient signal transmission even in harsh industrial environments. The connectors come with current ratings ranging from 1A to 10A, accommodating a wide range of power requirements for servo motor control systems.

Available with 6-pin and 7-pin insulation resistance configurations, the 6FX2003 model is suitable for precise and secure connections needed in industrial automation. The product is packaged securely in carton boxes to prevent damage during shipping, with a minimum order quantity of 100 units. NO MARK offers a supply ability of up to 1000 pieces per day, ensuring prompt availability for large-scale projects.

Delivery time is efficient, typically within 1-3 working days, and payment terms include T/T and PayPal for customer convenience. These connectors are widely used in electro hydraulic servo systems where precise control and rapid response are critical, as well as in brushless servo motor applications that demand high efficiency and durability. Furthermore, they are compatible with AC servo motor drivers, facilitating smooth integration with various driver technologies.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are essential components for industrial automation setups requiring robust, reliable, and high-performance connections. Their versatile mounting options, excellent plating materials, and adherence to international quality standards make them a preferred choice for engineers and system integrators working with Electro Hydraulic Servo, Brushless Servo Motor, and AC Servo Motor Driver systems.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are manufactured under the brand name NO MARK in China, ensuring high quality and reliability. Certified with CE and ISO9001, these connectors are designed to meet rigorous industry standards for use in DC Servo Motor Drive and AC Servo Drive applications.

We offer product customization services to cater to your specific requirements, including wire gauge options ranging from 18-24 AWG or more, and AWG 3-12 diameter, made from durable metal and plastic materials. The connectors support both panel mount and cable mount mounting types, with termination options available in crimp or solder styles to suit various installation needs.

Operating efficiently within a temperature range of -40℃ to +105℃, our Servo Motor Connectors are ideal for diverse environments and applications involving AC Servo Drive systems. With a minimum order quantity of 100 units, we ensure prompt delivery within 1-3 working days, packaged securely in carton boxes.

Our supply ability stands at 1000 pieces per day, and we accept flexible payment terms, including T/T and PayPal, making it convenient for businesses worldwide to procure these connectors for their servo motor drive solutions.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor systems. We offer comprehensive technical support to ensure optimal performance and ease of installation. Our support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance tips.

We provide detailed product documentation, including datasheets, wiring diagrams, and application notes to help users understand the specifications and wiring configurations. Additionally, we offer training sessions and webinars to enhance your knowledge and ensure proper usage of our Servo Motor Connectors.

For service, we ensure prompt response to any product issues, including warranty service and repair options. Our goal is to minimize downtime and maximize the efficiency of your servo motor applications through expert support and high-quality connector solutions.
