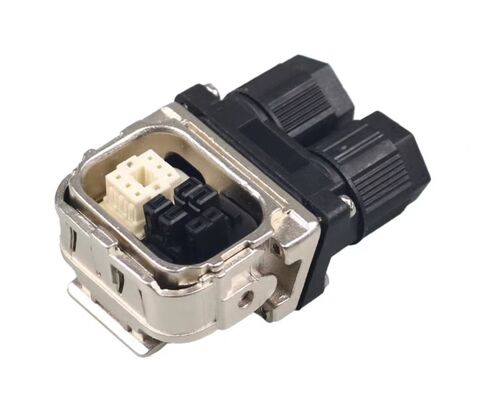

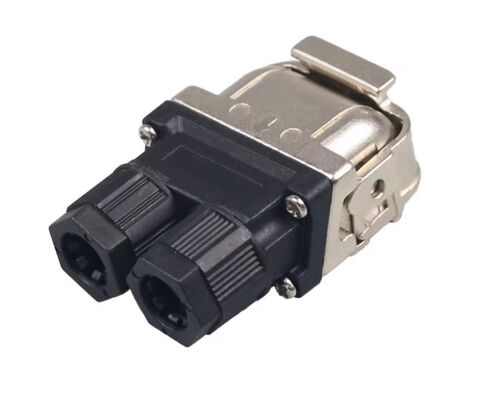

Replacement S200 servo dual-output cable 6FX2003-3HD00 hybrid connector low-voltage motor plug

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connections in various industrial automation systems. These connectors are specifically engineered to meet the demanding requirements of AC servo motor drivers and brushless servo motors, providing a secure and stable interface that facilitates seamless communication between the motor and its control system.

One of the standout features of these servo motor connectors is their impressive operating temperature range, which spans from -40℃ to +105℃. This wide temperature tolerance makes them suitable for use in harsh industrial environments where temperature fluctuations are common. Whether in cold storage facilities or high-temperature manufacturing plants, these connectors maintain their performance and integrity, ensuring uninterrupted operation of your AC servo drive systems.

The connectors support a versatile wire gauge range from 18 to 24 AWG, as well as larger diameters from AWG 3 to 12. This flexibility allows them to accommodate various wire sizes, making them adaptable to different power and signal transmission needs in industrial automation setups. The ability to handle thicker wires is particularly beneficial for high-current applications, ensuring minimal voltage drop and enhanced efficiency.

Designed for industrial automation applications, these servo motor connectors play a critical role in the precise control and motion of machinery. Their robust construction and reliable contact design help minimize electrical noise and signal loss, which are crucial for maintaining the accuracy and responsiveness of brushless servo motors and AC servo motor drivers. This ensures smooth and precise motor operation, which is vital in industries such as robotics, CNC machinery, and automated assembly lines.

These connectors come in various configurations to suit different needs, featuring multiple contact options including 4-pin, 6-pin, 8-pin, 12-pin, and even 17-pin variants. This range allows engineers to select the appropriate connector based on the number of signals or power lines required by their specific servo motor setup. Whether you need a simple connection for basic control signals or a more complex interface for advanced motor feedback and power lines, these connectors provide the necessary flexibility.

Mounting options for these connectors include both panel mount and cable mount types. Panel mount connectors are ideal for fixed installations where the connector is secured to a control panel or equipment chassis, providing a stable and durable connection point. Cable mount connectors, on the other hand, are designed for direct attachment to cables, facilitating easy installation and maintenance in dynamic or portable applications. This dual mounting capability ensures that these connectors can be integrated seamlessly into a wide range of industrial automation systems.

In summary, Servo Motor Connectors are indispensable components for anyone working with AC servo motor drivers, brushless servo motors, and AC servo drives. Their wide operating temperature range, compatibility with various wire gauges, multiple contact options, and flexible mounting types make them ideal for the rigorous demands of industrial automation. By ensuring reliable electrical connections and reducing potential points of failure, these connectors contribute significantly to the efficiency, reliability, and longevity of servo motor systems, ultimately enhancing the overall productivity and performance of automated machinery.

Features:

• Product Name: Servo Motor Connectors
• Termination Type: Crimp/Solder
• Insulation Resistance: Available in 6PIN and 7PIN options
• Gender Options: 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN
• Current Rating: Supports from 1A to 10A and beyond
• Operating Temperature Range: -40℃ to +105℃
• Compatible with High Torque DC Servo Motor applications
• Designed for use with AC Servo Motor Driver systems
• Suitable for Brushless Servo Motor connections

Technical Parameters:

Our Servo Motor Connectors are ideal for applications involving Hydraulic Brake Motors, High Torque DC Servo Motors, and Brushless Servo Motors, providing reliable performance and durability.

Applications:

The NO MARK Servo Motor Connector, model number 6FX2003, is a high-quality connector designed specifically for AC Brushless Servo Motor applications. Manufactured in China and certified with CE and ISO9001 standards, this connector ensures reliability and safety in demanding industrial environments. Its robust design supports a voltage rating of up to 1000V and offers insulation resistance options for 6PIN and 7PIN configurations, making it an ideal choice for various servo motor connection requirements.

This connector is widely used in conjunction with AC Servo Drives and Brushless Servo Motors, providing secure and efficient electrical connections that are critical for precise motor control. The 6FX2003 connector supports current ratings ranging from 1A to 10A and beyond, accommodating a wide range of servo motor power needs. Its versatility makes it suitable for use in automation systems, CNC machines, robotic arms, and other industrial machinery that rely on AC Brushless Servo Motors for smooth and accurate motion control.

Due to its high supply ability of 1000 pieces per day and a minimum order quantity of 100, the 6FX2003 connector is perfect for large-scale manufacturing and maintenance operations. Packaged securely in carton boxes, these connectors are protected during shipping and storage. The delivery time is prompt, typically within 1-3 working days, ensuring that production lines experience minimal downtime.

Furthermore, the 6FX2003 Servo Motor Connector supports flexible payment terms, including T/T and PayPal, which facilitates convenient and secure transactions for buyers worldwide. This makes it an accessible component for businesses seeking reliable connectors for brushless servo motor systems.

In summary, the NO MARK 6FX2003 connector is an essential component for anyone working with AC Brushless Servo Motors and AC Servo Drives. Its high voltage and current ratings, combined with certified quality and fast delivery, make it suitable for various industrial application occasions and scenarios such as automated manufacturing, robotics, and precision machinery where dependable motor connections are crucial for optimal performance.

Customization:

Our 6FX2003 servo motor connectors are designed to provide seamless integration with AC Servo Drive systems and High Torque DC Servo Motors. Manufactured in China under strict quality controls, these connectors meet CE and ISO9001 certifications ensuring reliability and safety.

Constructed from durable metal and plastic materials, the connectors support wire gauges ranging from 18-24 AWG or more, accommodating AWG 3-12 diameter wires. They are suitable for current ratings from 1A up to 10A and beyond, making them ideal for various High Torque DC Servo Motor applications.

Operating efficiently within a temperature range of -40℃ to +105℃, these connectors guarantee stable performance in demanding environments. Packaged securely in carton boxes, we maintain a supply ability of 1000 pcs/day to meet your production needs.

With a minimum order quantity of 100 pieces, delivery is prompt within 1-3 working days. Payment terms are flexible, accepting T/T and PayPal for your convenience. Choose the 6FX2003 connectors for reliable connection solutions in your AC Servo Drive and High Torque DC Servo Motor projects.

Support and Services:

Our Servo Motor Connectors are designed to ensure reliable and secure connections for servo motor systems, providing optimal performance in various industrial applications. The connectors feature robust construction to withstand harsh environments, vibration, and mechanical stress.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, and troubleshooting to help you achieve the best system integration. Our team can help you identify the correct connector type, pin configuration, and compatibility with your servo motor and controller setup.

We also provide detailed datasheets and technical documentation to support your engineering and maintenance teams. For any issues encountered during operation, our support services offer diagnostics and solutions to minimize downtime and maintain system efficiency.

Additionally, our service extends to custom connector configurations and special cable assemblies tailored to your specific requirements, ensuring seamless connectivity and enhanced performance of your servo motor applications.
