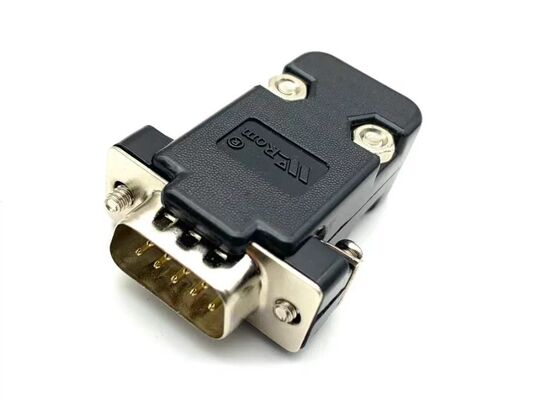

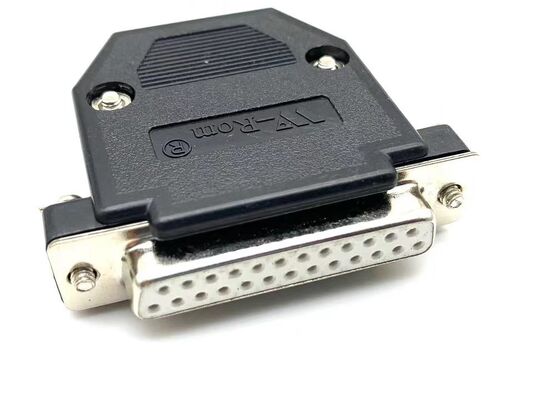

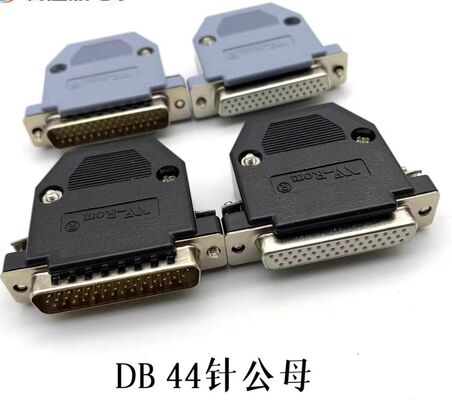

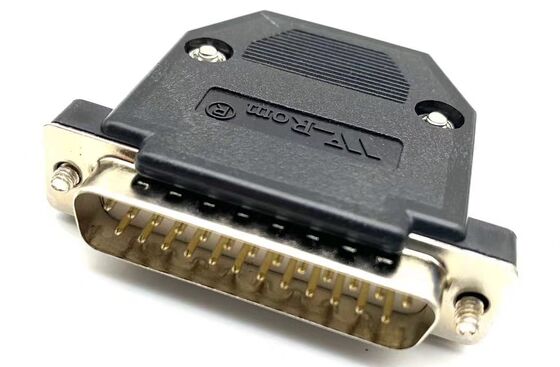

1000V Voltage Rating Silver/Gold Plated Pins Servo Motor Connector for Industrial Automation

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connections in various servo motor applications. Specifically tailored for use with AC Servo Drives, AC Servo Motor Drivers, and AC Brushless Servo Motors, these connectors ensure optimal performance and durability in demanding industrial environments. They are available in multiple configurations, including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin variants, catering to diverse wiring and signal transmission requirements.

One of the key features of these Servo Motor Connectors is their versatile termination type, offering both crimp and solder options. This flexibility allows for easy installation and secure connections, whether you prefer mechanical crimping for quick assembly or soldering for a more permanent bond. The crimp termination ensures strong mechanical retention and excellent electrical conductivity, while the solder termination provides a stable and reliable joint resistant to vibration and environmental stress.

Designed to handle voltage ratings up to 1000V, these connectors are well-suited for high-power applications commonly encountered in AC Servo Drive systems. The high voltage rating ensures safety and reliability, even under demanding operating conditions. This makes them ideal for use in AC Servo Motor Drivers, where stable and secure electrical connections are essential for maintaining precise motor control and performance.

The contact plating of the Servo Motor Connectors further enhances their reliability. Contacts are available with silver plating and gold-plated pins, ensuring excellent conductivity and resistance to corrosion. Silver-plated contacts provide low electrical resistance and are cost-effective for general applications, while gold-plated pins offer superior corrosion resistance and enhanced signal integrity, which is critical for high-precision AC Brushless Servo Motor systems. This dual plating option allows users to select the most appropriate connector type based on their specific operational requirements and environmental conditions.

Current ratings for these connectors vary to accommodate different power needs, ranging from as low as 1A up to 10A and beyond. This wide current rating spectrum makes them suitable for a variety of servo motor setups, from small, low-power AC Brushless Servo Motors to larger, high-current AC Servo Drive assemblies. The connectors maintain excellent electrical performance across their current range, ensuring stable power delivery and signal transmission without degradation.

The gender options of the connectors include male and female types, designed to mate securely for reliable connections. The availability of connectors in multiple pin counts—4, 6, 8, 12, and 17 pins—provides flexibility in wiring configurations, accommodating different sensor, power, and feedback signal requirements intrinsic to AC Servo Motor Drivers and AC Servo Drives. This variety supports complex motor control systems by facilitating organized and efficient cable management.

In summary, the Servo Motor Connectors are robust, high-performance components engineered to meet the rigorous demands of modern servo motor technology. Their flexible termination options, high voltage and current ratings, and superior contact plating make them an excellent choice for enhancing the reliability and efficiency of AC Servo Drive systems, AC Servo Motor Drivers, and AC Brushless Servo Motors. Whether used in industrial automation, robotics, or precision motion control applications, these connectors provide the dependable electrical connections essential for optimal motor operation and longevity.

Features:

• Product Name: Servo Motor Connectors
• Connector Type: Servo Motor
• Available Genders: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Insulation Resistance Options: 6PIN, 7PIN
• Termination Type: Crimp and Solder
• Wire Gauge Compatibility: 18-24 AWG or more, AWG 3-12 diameter
• Compatible with DC Servo Motor Drive systems
• Supports AC Servo Motor Driver applications

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are designed for versatile and demanding applications across various industries. Manufactured in China and certified with CE and ISO9001, these connectors ensure high reliability and quality, making them ideal for use in precision equipment and automation systems. With a robust construction combining metal and plastic materials, the 6FX2003 model offers durability and excellent performance under different environmental conditions.

This product is especially suitable for Hydraulic Brake Motors, where secure and efficient electrical connections are critical for safety and performance. The connectors support multiple configurations, including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN options, accommodating diverse wiring requirements in complex motor assemblies. Their voltage rating of up to 1000V and current ratings ranging from 1A to 10A and beyond make them adaptable to a wide range of power demands.

In applications involving High Torque DC Servo Motors, the 6FX2003 connectors provide stable and reliable connections, ensuring consistent signal transmission and power delivery. This is essential for maintaining precise motor control and achieving optimal torque output in industrial automation, robotics, and CNC machinery.

Additionally, these connectors are well-suited for DC Servo Motor Drive systems, where they facilitate seamless integration between the motor and the drive controller. The availability of various pin configurations allows for easy customization to meet the specific wiring and communication needs of different servo drive setups.

With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs per day, NO MARK ensures timely availability for large-scale production or maintenance requirements. Packaging in sturdy carton boxes protects the connectors during shipping, with a fast delivery time of 1-3 working days. Payment terms such as T/T and PayPal provide flexible purchasing options for customers worldwide.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are an excellent choice for engineers and system integrators seeking high-quality, adaptable connectors for Hydraulic Brake Motors, High Torque DC Servo Motors, and DC Servo Motor Drives, ensuring reliable performance and long-term durability in demanding applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under the brand NO MARK, these connectors are certified with CE and ISO9001, ensuring reliability and compliance with international standards.

We offer product customization services tailored to your specific needs in industrial automation applications, including Hydraulic Brake Motors, AC Servo Drive systems, and Brushless Servo Motor setups. Our connectors feature a variety of contact options, including 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN configurations, with contact plating available in silver or gold for optimal conductivity and durability.

With mounting types available for both panel mount and cable mount installations, our connectors provide versatile solutions for your equipment. The insulation resistance is available in 6PIN and 7PIN options to suit different performance requirements.

We maintain a supply ability of 1000 pcs per day with a minimum order quantity of 100 units. Packaging is handled carefully in carton boxes to ensure safe delivery, with a delivery time of 1-3 working days. Payment terms include T/T and PayPal for your convenience.

Choose our Servo Motor Connectors for reliable connectivity in your industrial automation projects involving Hydraulic Brake Motors, AC Servo Drive, and Brushless Servo Motor technologies.

Support and Services:

Our Servo Motor Connectors are designed to ensure reliable and efficient connections in your servo motor systems. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips to optimize performance.

We offer comprehensive services including connector customization, compatibility consultation, and repair solutions to meet your specific application requirements. Whether you need help selecting the right connector or resolving connection issues, our support ensures seamless integration and operation.

Additionally, we provide detailed product documentation, including datasheets and wiring diagrams, to facilitate proper usage and enhance system reliability. Trust our technical support and services to maximize the efficiency and longevity of your servo motor connections.
