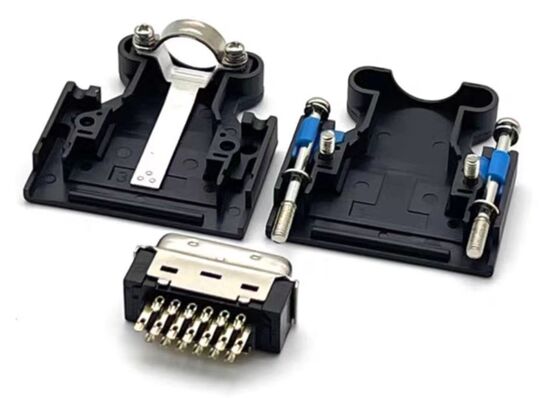

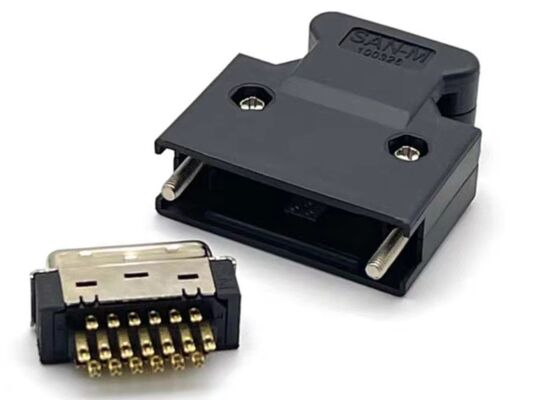

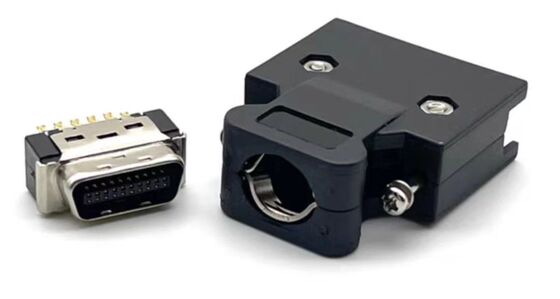

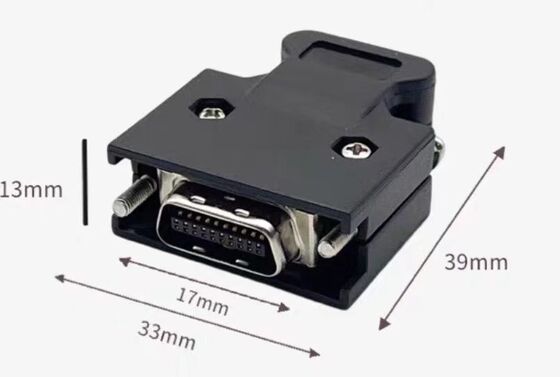

1000V Voltage Rating Servo Motor Connector with -40℃ To +105℃ Operating Temperature for Panel or Cable Mount

Product Description:

The Servo Motor Connectors are engineered to provide reliable and efficient connections for a wide range of servo motor applications, including Electro Hydraulic Servo systems and Brushless Servo Motor setups. Designed with precision and durability in mind, these connectors ensure optimal performance even in demanding environments.

One of the standout features of these Servo Motor Connectors is their impressive insulation resistance, available in both 6PIN and 7PIN configurations. This high insulation resistance guarantees minimal electrical leakage and superior signal integrity, which is crucial for maintaining the accuracy and responsiveness of Electro Hydraulic Servo systems and Brushless Servo Motor operations. The robust insulation effectively protects against electrical interference, enhancing the overall reliability of connected devices.

These connectors are specifically categorized under the Connector Type: Servo Motor, making them perfectly suited for interfacing with various servo motor models. Whether you are working with high-precision Brushless Servo Motor units or rugged Electro Hydraulic Servo equipment, these connectors facilitate secure and stable electrical connections. Their design supports the complex wiring needs of modern servo motors, ensuring seamless integration and communication between components.

Operating under a wide temperature range from -40℃ to +105℃, these Servo Motor Connectors are capable of performing reliably in harsh industrial environments. This broad operating temperature range makes them ideal for applications that experience extreme temperature fluctuations or continuous high-temperature operation. Whether deployed in cold storage facilities or near high-heat machinery, these connectors maintain their integrity and functionality without degradation.

Safety and performance are further ensured by a high voltage rating of 1000V. This voltage rating allows the connectors to handle substantial electrical loads, which is often required in Electro Hydraulic Servo systems and Brushless Servo Motor configurations. The connectors are built to withstand high voltage stresses, preventing electrical failures and contributing to the longevity of the servo motor system.

The termination options for these connectors include both crimp and solder types, providing flexibility to meet various installation and maintenance requirements. Crimp termination offers a quick and reliable way to secure wires, providing strong mechanical and electrical connections without the need for additional tools. On the other hand, solder termination ensures a permanent and highly conductive connection, ideal for applications where vibration resistance and long-term stability are critical. This versatility makes the Servo Motor Connectors adaptable to different assembly processes and user preferences.

In summary, the Servo Motor Connectors stand out as robust, versatile, and high-performance components tailored for Electro Hydraulic Servo and Brushless Servo Motor applications. Their superior insulation resistance in 6PIN and 7PIN options, combined with a wide operating temperature range of -40℃ to +105℃ and a high voltage rating of 1000V, make them suitable for a variety of industrial and commercial servo motor systems. The availability of both crimp and solder termination types further enhances their adaptability, ensuring secure and reliable connections across diverse operational scenarios.

Whether you are looking to upgrade your existing servo motor connections or designing new Electro Hydraulic Servo or Brushless Servo Motor systems, these Servo Motor Connectors offer the reliability, safety, and performance required to meet the demands of modern servo technology. Their robust construction and precise engineering make them an excellent choice for engineers and technicians seeking dependable connectors that can withstand challenging conditions and deliver consistent results.

Features:

• Product Name: Servo Motor Connectors
• Termination Type: Crimp/Solder for secure and reliable connections
• Operating Temperature Range: -40℃ to +105℃, suitable for various environments
• Connector Type: Designed specifically for Servo Motor applications
• Current Rating: Supports from 1A up to 10A and beyond
• Contact Plating Options: Silver and Gold-plated pins for enhanced conductivity and durability
• Compatible with High Torque DC Servo Motor systems
• Ideal for use with AC Servo Drive and DC Servo Motor Drive applications

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of industrial automation environments. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure reliable performance and high safety standards. With a voltage rating of 1000V and available in multiple contact configurations including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, these connectors are versatile enough to accommodate a wide range of servo motor applications.

One of the primary application occasions for the NO MARK 6FX2003 connectors is in DC Servo Motor Drive systems. These connectors provide secure and stable connections essential for the precise control needed in DC Servo Motor Drive operations. Their compatibility with wire gauges ranging from 18-24 AWG and even larger diameters (AWG 3-12) makes them suitable for various cable requirements, ensuring optimal current flow and signal integrity.

In addition to DC Servo Motor Drives, these connectors are also ideal for Brushless Servo Motor applications. Brushless Servo Motors require high-quality, durable connectors that can handle frequent connection and disconnection cycles without compromising performance. The panel mount and cable mount options offered by the NO MARK 6FX2003 model provide flexibility in installation, catering to different machinery designs and space constraints.

The product’s robust construction and packaging in carton boxes ensure that the connectors arrive in perfect condition, ready for immediate use. With a supply ability of 1000 pieces per day and a minimum order quantity of 100, these connectors are perfect for both small-scale and large-scale industrial projects. The fast delivery time of 1-3 working days and flexible payment terms, including T/T and PayPal, make procurement efficient and convenient.

Overall, the NO MARK Servo Motor Connectors 6FX2003 are essential components in industrial automation setups, especially where reliable connections for DC Servo Motor Drives and Brushless Servo Motors are critical. Their multiple pin configurations, high voltage rating, and versatile mounting types make them suitable for a wide array of industrial automation scenarios, ensuring seamless operation and longevity.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet diverse customization needs for AC Brushless Servo Motor applications. Manufactured in China under the trusted brand NO MARK, these connectors come with CE and ISO9001 certifications, ensuring high quality and reliability.

We offer customization options for various connector genders including 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN configurations, suitable for Electro Hydraulic Servo systems and AC Servo Motor Driver setups. The connectors are made from durable metal and plastic materials, supporting wire gauges from 18-24 AWG and even larger diameters ranging from AWG 3 to 12.

Our Servo Motor Connectors provide excellent insulation resistance, especially in 6PIN and 7PIN types, ensuring optimal performance in demanding industrial environments. With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs/day, we guarantee prompt delivery within 1-3 working days, securely packaged in carton boxes.

Payment terms are flexible, accepting T/T and PayPal, making the procurement process smooth and convenient. Choose our customized Servo Motor Connectors to enhance the efficiency and reliability of your AC Brushless Servo Motor and related Electro Hydraulic Servo applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications, ensuring optimal performance and longevity. We offer comprehensive technical support to assist you with installation, troubleshooting, and maintenance of the connectors.

Our technical support team is available to guide you through selecting the appropriate connector for your specific servo motor requirements, addressing compatibility questions, and providing detailed product specifications.

We also provide services including custom connector configurations, testing, and quality assurance to meet your unique application needs. Our commitment is to ensure seamless integration and operation of our Servo Motor Connectors within your systems.

For any technical inquiries or service requests, please refer to our support resources or product documentation to find detailed guides and FAQs that can assist you in resolving common issues.
