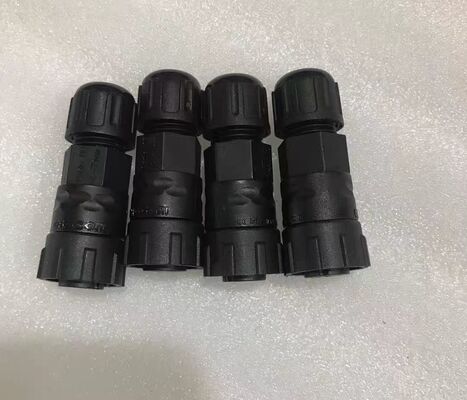

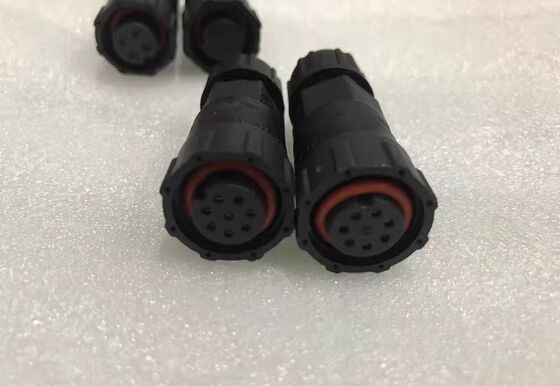

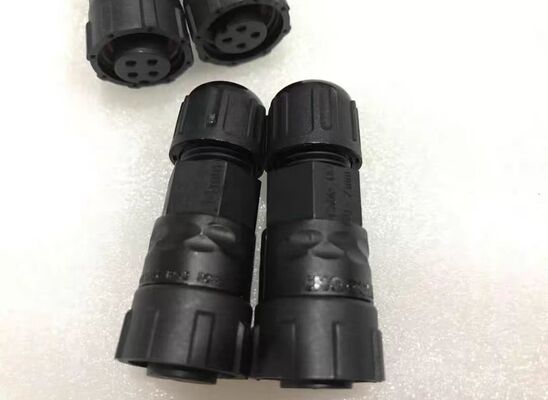

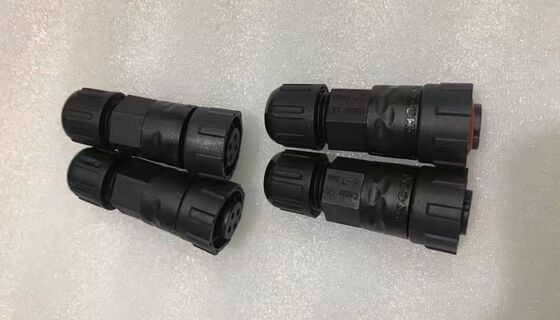

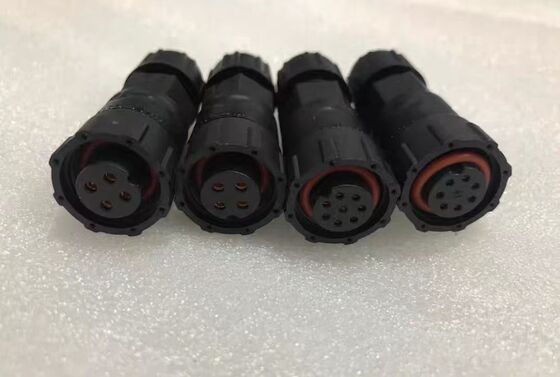

Original Estun 7-pin and 9-pin Aviation Plug Servo Motor Connector with CHOGORI Male and Female Connector

Product Description:

The 6FX2003 Servo Motor Connectors are precision-engineered components designed to ensure reliable and efficient connectivity for a wide range of servo motor applications. These connectors are specifically built to meet the demanding requirements of AC Servo Motor Driver systems and Brushless Servo Motor setups, offering superior performance and durability. With multiple pin configurations such as 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, the 6FX2003 series provides versatile options to accommodate various wiring needs and control signals for different servo motor models.

One of the standout features of the 6FX2003 servo motor connectors is their exceptional insulation resistance, available in both 6PIN and 7PIN variants. This high insulation resistance is crucial for maintaining electrical integrity and preventing signal interference, which is particularly important in environments where precise motor control is essential. The connectors are designed to handle wire gauges ranging from 18 to 24 AWG or even larger, with an AWG diameter range of 3 to 12, ensuring compatibility with a broad spectrum of cable sizes commonly used in industrial servo motor installations.

The gender options for these connectors include male and female configurations, allowing for flexible integration with various servo motor drivers and control units. This adaptability makes the 6FX2003 series particularly suitable for complex systems involving Brushless Servo Motors, where reliable and consistent electrical connections are paramount for optimal motor performance and longevity.

Contact plating is another critical attribute of the 6FX2003 connectors. The contacts are available with silver plating or pin golded plating, both of which enhance conductivity and reduce the risk of corrosion over time. Silver plating offers excellent electrical conductivity and is cost-effective, while gold-plated pins provide superior resistance to oxidation and wear, ensuring stable connections even in harsh industrial environments. This attention to contact quality guarantees that the connectors maintain low contact resistance and high signal integrity, essential for precise control in AC Servo Motor Driver applications.

These connectors are engineered for robust mechanical and electrical performance, making them ideal for use with Brushless Servo Motors which demand high reliability and minimal downtime. The 6FX2003 series supports secure locking mechanisms and durable housing materials that protect against vibration, dust, and moisture, further extending the service life of the connection and reducing maintenance requirements.

In addition to their technical excellence, the 6FX2003 servo motor connectors are designed for ease of installation and maintenance. Their clear pin configurations and sturdy construction simplify wiring tasks, enabling technicians to quickly and accurately connect components in complex servo motor control systems. This efficiency is vital in industrial settings where minimizing downtime and ensuring consistent motor operation are critical.

Overall, the 6FX2003 Servo Motor Connectors represent a reliable, versatile, and high-performance solution for connecting AC Servo Motor Drivers and Brushless Servo Motors. Their wide range of pin options, superior insulation resistance, flexible wire gauge compatibility, and high-quality contact plating make them an excellent choice for engineers and technicians seeking dependable connectors for demanding servo motor applications. Whether in automation, robotics, or precision machinery, the 6FX2003 connectors deliver the quality and reliability needed to support advanced servo motor control systems effectively.

Features:

• Product Name: Servo Motor Connectors
• Material: Metal/Plastic
• Operating Temperature Range: -40℃ to +105℃
• Model Name: 6FX2003
• Contact Plating: Silver Pin and Golded Pin options
• Mounting Type: Panel Mount and Cable Mount available
• Compatible with AC Servo Motor Driver applications
• Designed for use with Brushless Servo Motor systems
• Ideal for AC Servo Drive integration

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are designed specifically for seamless integration with a wide range of servo motor applications, particularly in the industrial automation sector. These connectors are ideal for use with DC Servo Motor Drive systems, ensuring reliable and efficient power transmission and signal integrity. Their robust construction and versatile termination options, including crimp and solder types, make them suitable for rigorous industrial environments where consistent performance is critical.

These connectors support multiple pin configurations such as 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, accommodating various wiring needs and device specifications. This flexibility allows for easy compatibility with High Torque DC Servo Motor systems, which demand secure and stable electrical connections to handle high current loads and maintain precise control. Additionally, the connectors are compatible with AC Brushless Servo Motor setups, commonly used in precision machinery and robotics, where accurate feedback and smooth operation are essential.

With a wire gauge range of 18-24 AWG and the capability to support even larger diameters from AWG 3 to 12, the 6FX2003 connectors can handle diverse cable sizes, providing adaptability across different servo motor configurations. Manufactured in China and certified with CE and ISO9001 standards, these connectors meet stringent quality and safety requirements, ensuring consistent performance and durability in demanding industrial contexts.

Packaging is thoughtfully done in carton boxes for secure transportation, and the supply ability of 1000 pieces per day guarantees quick availability. Customers benefit from a minimum order quantity of 100 units and a fast delivery time of 1-3 working days, supported by convenient payment terms such as T/T and PayPal. These attributes make the NO MARK 6FX2003 Servo Motor Connectors a reliable choice for engineers and procurement teams looking to enhance their servo motor drive systems with high-quality, adaptable connectivity solutions.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China and certified with CE and ISO9001, these connectors ensure reliable operation for your DC Servo Motor Drive, AC Servo Motor Driver, and Brushless Servo Motor applications.

We offer product customization services with a minimum order quantity of 100 units. Our connectors support various insulation resistances including 6PIN and 7PIN configurations, and current ratings ranging from 1A to 10A and beyond. The wire gauge compatibility spans from 18-24 AWG to larger diameters such as AWG 3-12, accommodating diverse wiring requirements.

Available gender options include 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, with flexible mounting types including panel mount and cable mount to suit your installation needs. Each connector is carefully packaged in a sturdy carton box to ensure safe delivery.

With a supply ability of 1000 pieces per day and a delivery time of 1-3 working days, we are equipped to handle both small and large orders efficiently. Payment terms include T/T and PayPal for your convenience. Although pricing is not available directly, please contact us for detailed quotations and further customization options.

Choose our Servo Motor Connectors to enhance the performance and reliability of your servo motor systems, including DC Servo Motor Drives, AC Servo Motor Drivers, and Brushless Servo Motors.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. For technical support, we offer detailed product documentation, including datasheets and installation guides, to assist with proper connector selection and usage. Our support team is available to help troubleshoot any issues related to connector compatibility, wiring, and performance.

We provide customization services to tailor connector solutions to your specific requirements, including cable length adjustments and special configurations. Additionally, we offer repair and maintenance services to ensure long-term reliability of your servo motor connections.

For optimal performance, we recommend regular inspection and cleaning of connectors to prevent contamination and ensure stable electrical contact. Our technical support resources also include application notes and FAQs to help you maximize the efficiency and lifespan of your servo motor systems.
