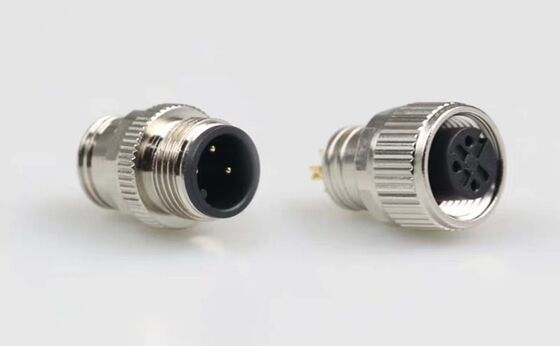

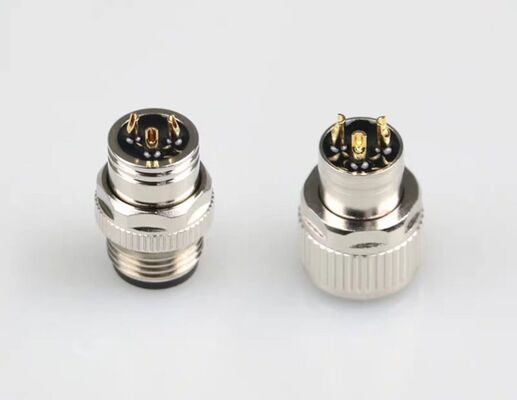

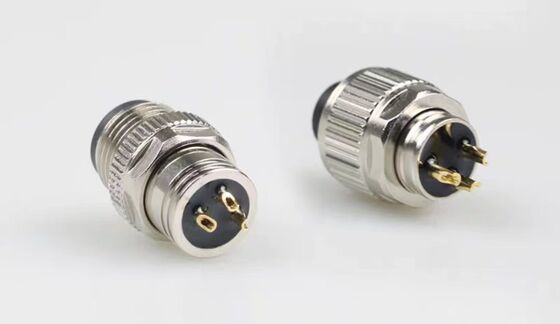

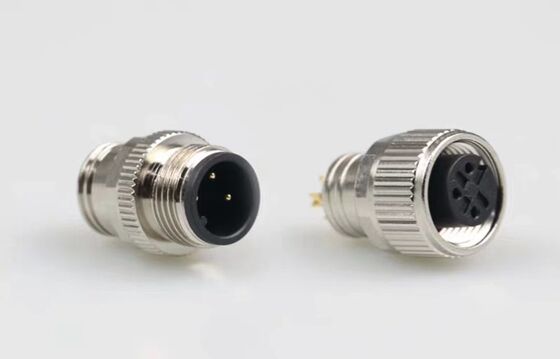

M12 connector, integral non-detachable, shielded, solder-type, waterproof male and female, 4-pin, 5-pin, 8-pin, 12-pin

M12 connector, integral non-detachable, shielded, solder-type, waterproof male and female, 4-pin, 5-pin, 8-pin, 12-pin

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connections between Brushless Servo Motors and AC Servo Drives. These connectors are engineered to meet the demanding requirements of modern servo systems, offering exceptional performance, durability, and ease of installation. Constructed from a combination of high-quality metal and plastic materials, these connectors provide excellent mechanical strength and resistance to environmental factors, making them ideal for industrial automation, robotics, and precision control applications.

The material composition of Servo Motor Connectors includes robust metal contacts coupled with durable plastic housings. The metal contacts are precision-engineered to deliver optimal electrical conductivity and mechanical stability, ensuring seamless signal transmission between the Brushless Servo Motor and the AC Servo Drive. The plastic housing not only enhances the connector’s structural integrity but also provides insulation and protection against dust, moisture, and other contaminants, thereby extending the service life of the connection system.

One of the standout features of these connectors is the contact plating options available. Customers can choose between silver-plated pins and gold-plated pins, depending on their specific requirements. Silver plating offers excellent conductivity and is well-suited for general applications, while gold plating provides superior corrosion resistance and durability, making it ideal for high-reliability environments. This flexibility ensures that the connectors can meet the stringent demands of various servo drive systems and operational conditions.

Servo Motor Connectors are available in a variety of pin configurations to accommodate different wiring and control needs. The product range includes connectors with 4-pin, 6-pin, 8-pin, 12-pin, and even 17-pin options, providing versatility for different types of Brushless Servo Motor and AC Servo Drive setups. This wide selection enables system designers and engineers to select the most appropriate connector based on the number of signal lines, power requirements, and control signals needed for their specific application.

The connectors support a broad range of wire gauges, from 18 to 24 AWG or even larger diameters ranging from AWG 3 to 12. This adaptability allows for the use of various cable types, ensuring compatibility with different power and signal transmission needs. Whether the application demands thin, flexible wires or thicker, high-current cables, these connectors can accommodate the necessary wire gauge to maintain optimal performance and safety.

Termination types for the Servo Motor Connectors include both crimp and solder options. The crimp termination method offers a fast, reliable, and tool-friendly way to secure wires to the connector pins, ensuring strong mechanical and electrical connections. On the other hand, solder termination provides a more permanent and robust bond, which is especially beneficial in high-vibration environments often encountered in servo drive systems. This dual termination capability enhances the product’s versatility, allowing users to choose the most suitable method based on their assembly processes and application requirements.

In summary, Servo Motor Connectors are meticulously designed to provide dependable connectivity solutions for Brushless Servo Motors and AC Servo Drives. Their combination of metal and plastic materials, versatile contact plating options, multiple pin configurations, wide wire gauge compatibility, and flexible termination methods make them indispensable components in modern servo drive systems. By ensuring secure, efficient, and long-lasting connections, these connectors play a critical role in the performance and reliability of industrial automation and control applications.

Features:

• Product Name: Servo Motor Connectors
• Operating Temperature Range: -40℃ to +105℃
• Contact Plating Options: Silver Plated Pins and Gold Plated Pins
• Current Rating: From 1A to 10A and beyond
• Material Composition: Durable Metal and Plastic
• Mounting Types: Panel Mount and Cable Mount Options
• Compatible with AC Brushless Servo Motor applications
• Suitable for Hydraulic Brake Motors connectivity
• Ideal for High Torque DC Servo Motor systems

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors, originating from China and certified with CE and ISO9001, are engineered specifically for high-performance industrial automation applications. These connectors are essential components in systems utilizing AC Servo Drive and AC Servo Motor Driver technologies, ensuring reliable and efficient power and signal transmission in demanding environments.

Designed with durable metal and plastic materials, the 6FX2003 connectors offer robust protection against wear and environmental factors, making them ideal for use in various industrial automation scenarios. Their versatile mounting options, including panel mount and cable mount, provide flexibility in installation, accommodating different equipment layouts and design requirements.

With termination types available in both crimp and solder, these connectors cater to diverse assembly preferences and ensure secure connections within AC Servo Drive setups. The reliable connection integrity supports the high precision and performance needed for AC Servo Motor Driver systems, which are commonly used in robotics, CNC machinery, packaging equipment, and factory automation lines.

The NO MARK 6FX2003 connectors are suitable for occasions where rapid deployment and dependable operation are critical. Thanks to a supply ability of 1000 pieces per day and a swift delivery time of 1-3 working days, manufacturers and system integrators can maintain efficient production schedules and minimize downtime. The minimum order quantity is set at 100 pieces, with flexible payment terms including T/T and PayPal, making procurement straightforward and convenient.

Packaging in sturdy carton boxes ensures that the connectors reach the customer in perfect condition, ready for immediate integration into AC Servo Drive systems. Whether upgrading existing machinery or building new automation lines, the 6FX2003 connectors provide the reliability and performance required for cutting-edge industrial automation solutions.

Customization:

Our Servo Motor Connectors (Model Number: 6FX2003) by NO MARK are designed to meet the highest standards of quality and reliability, certified by CE and ISO9001. Originating from China, these connectors are ideal for applications in Industrial Automation, particularly for Brushless Servo Motor and High Torque DC Servo Motor systems.

We offer product customization services with a minimum order quantity of 100 units. The connectors feature versatile mounting types, including Panel Mount and Cable Mount options, and support termination types such as Crimp and Solder to suit various installation requirements. Made from durable Metal and Plastic materials, they ensure excellent insulation resistance for both 6PIN and 7PIN configurations.

Packaging is done securely in carton boxes to protect the products during shipment. With a supply ability of 1000 pieces per day, we guarantee a fast delivery time of 1-3 working days. Payment terms are flexible, accepting T/T and PayPal methods.

Whether you need connectors for Brushless Servo Motor or other High Torque DC Servo Motor applications, our customizable Servo Motor Connectors provide reliable performance and quality assurance tailored to your specific needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems in various industrial applications. To ensure optimal performance and longevity of the connectors, please follow the installation guidelines carefully.

For technical support, users can refer to the detailed product manuals and datasheets available on our website. These documents include specifications, wiring diagrams, and troubleshooting tips to assist with common issues.

We offer comprehensive services including connector customization, compatibility consulting, and on-site technical assistance to help integrate our servo motor connectors seamlessly into your systems.

Regular maintenance is recommended to prevent connection failures. Inspect connectors periodically for signs of wear, corrosion, or damage, and replace any faulty components promptly to maintain system integrity.

Our engineering support team is available to assist with any technical inquiries related to product selection, installation procedures, or performance optimization to ensure your application requirements are met effectively.

For warranty and repair services, please refer to our terms and conditions to understand the coverage and process for servicing your servo motor connectors.
