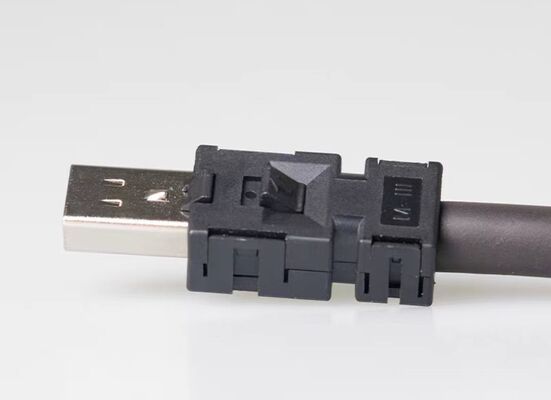

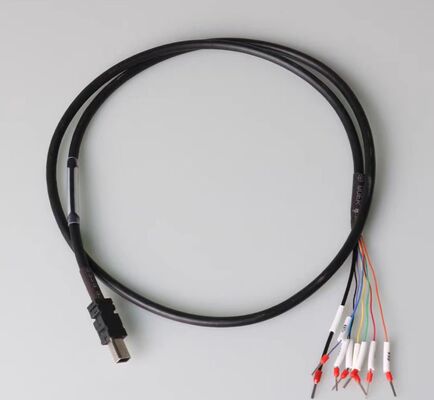

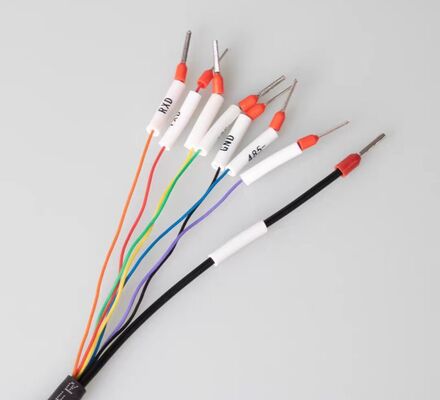

6PIN 7PIN Insulation Resistance Servo Motor Connector with 1000V Voltage Rating and Panel Mount/Cable Mount Options

Product Description:

The Servo Motor Connectors are essential components designed to ensure reliable and efficient connections in various servo motor applications, including DC Servo Motor Drive, AC Servo Motor Driver, and Electro Hydraulic Servo systems. These connectors are engineered to provide excellent electrical performance, mechanical robustness, and ease of installation, making them ideal for demanding industrial environments.

One of the standout features of these Servo Motor Connectors is their impressive insulation resistance, available in configurations of 6PIN and 7PIN. This high insulation resistance ensures minimal electrical leakage and maximizes safety and signal integrity, which is crucial for the precise control required in servo motor operations. Whether you are working with a DC Servo Motor Drive or an AC Servo Motor Driver, these connectors provide the dependable insulation necessary for seamless performance.

The termination types offered for these connectors include both crimp and solder options. This flexibility allows users to choose the most suitable termination method based on their specific application needs and equipment compatibility. Crimp terminations provide a quick and secure connection, ideal for automated assembly processes, while solder terminations offer a strong, permanent bond that can withstand vibration and thermal cycling often encountered in Electro Hydraulic Servo systems.

Wire gauge compatibility is another critical aspect of these Servo Motor Connectors. They support a wide range of wire gauges, from 18-24 AWG and even larger diameters within the range of AWG 3-12. This versatility allows the connectors to accommodate various current loads and cable sizes, making them suitable for both low-current signal transmission and higher power delivery applications. The ability to handle larger wire diameters is particularly beneficial for Electro Hydraulic Servo applications where higher power currents are common.

When it comes to current rating, these connectors are designed to handle from as low as 1A up to 10A and beyond, depending on the specific model and application requirements. This broad current rating range ensures compatibility with different types of servo motor drives, including both DC Servo Motor Drive and AC Servo Motor Driver systems, where varying power levels are necessary to drive the motors effectively.

Mounting options for the Servo Motor Connectors are thoughtfully designed to suit diverse installation scenarios. Both panel mount and cable mount configurations are available, offering flexibility in how the connectors are integrated into machinery and control panels. Panel mount connectors provide a secure and accessible connection point on control cabinets or motor housings, while cable mount connectors facilitate straightforward cable-to-cable connections, simplifying wiring harness assembly and maintenance.

In addition to their technical specifications, these Servo Motor Connectors are constructed from high-quality materials that ensure durability and resistance to environmental factors such as moisture, dust, and vibration. This robustness is essential for maintaining reliable connections in the harsh conditions often encountered in industrial settings where Electro Hydraulic Servo systems and servo motor drives operate.

Overall, the Servo Motor Connectors are designed to meet the demanding needs of modern servo motor control systems. Their combination of high insulation resistance, versatile termination types, wide wire gauge compatibility, broad current ratings, and flexible mounting options make them ideal for use with DC Servo Motor Drive, AC Servo Motor Driver, and Electro Hydraulic Servo applications. By choosing these connectors, engineers and technicians can ensure a secure, efficient, and long-lasting connection that supports optimal servo motor performance and system reliability.

Features:

• Product Name: Servo Motor Connectors
• Application: Industrial Automation
• Compatible with DC Servo Motor Drive and Brushless Servo Motor systems
• Contact Plating: Silver Pin and Golded Pin options available
• Voltage Rating: 1000V for high voltage applications
• Number of Contacts: Available in 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations
• Mounting Type: Supports both Panel Mount and Cable Mount installation
• Ideal for use with Brushless Servo Motor applications

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of various industrial automation applications. Originating from China and certified with CE and ISO9001 standards, these connectors ensure high quality and reliability. With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, they are well-suited for bulk procurement and large-scale industrial projects.

These connectors are ideal for use with AC Brushless Servo Motors, providing secure and stable electrical connections essential for precise motor control in automation systems. Their current rating ranges from 1A to 10A and beyond, making them adaptable to different power demands. The termination type options include crimp and solder, allowing flexibility depending on the assembly requirements and ensuring a robust connection under various operating conditions.

In addition to AC Brushless Servo Motors, the 6FX2003 connectors are perfectly suited for Hydraulic Brake Motors, which require reliable and durable connections to maintain consistent braking performance in industrial machinery. The connectors’ metal and plastic material composition offers excellent durability and resistance to wear and environmental factors, supporting their use in harsh industrial environments.

High Torque DC Servo Motors, which demand high current and stable signal transmission for efficient torque delivery, also benefit from these connectors. Their operating temperature range of -40℃ to +105℃ ensures reliable performance in extreme temperature conditions, making them suitable for a wide range of industrial settings.

Packaged securely in carton boxes, the NO MARK Servo Motor Connectors are shipped promptly with a delivery time of 1 to 3 working days. Payment can be conveniently made via T/T or PayPal, streamlining the purchasing process. These features make the 6FX2003 model an excellent choice for engineers and procurement specialists seeking dependable connectors for servo motor applications in industrial automation.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under the trusted NO MARK brand, these connectors are certified with CE and ISO9001, ensuring reliable and safe operation for your applications.

The 6FX2003 connectors are suitable for AC Servo Drive systems, AC Brushless Servo Motor setups, and AC Servo Motor Driver applications. With a voltage rating of 1000V and options for 6PIN or 7PIN insulation resistance, they provide excellent connectivity and durability.

Each connector features premium contact plating options, including silver and gold-plated pins, to ensure optimal conductivity and corrosion resistance. Packaged securely in carton boxes, we guarantee safe delivery with a fast turnaround time of 1-3 working days.

We support a minimum order quantity of 100 pieces and have a robust supply ability of 1000 pieces per day. Payment terms include T/T and PayPal for your convenience. Choose our 6FX2003 Servo Motor Connectors for dependable performance in your AC Servo Drive, AC Brushless Servo Motor, and AC Servo Motor Driver projects.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motors in various industrial applications. To ensure optimal performance, it is important to follow proper installation and maintenance procedures.

Before installation, verify that the connector specifications match the servo motor requirements, including voltage, current, and pin configuration. Ensure that all connectors are free from damage and contamination.

When connecting, align the connectors carefully to avoid bending pins or damaging contacts. Use appropriate tools to secure the connection firmly without applying excessive force.

Regularly inspect the connectors for signs of wear, corrosion, or damage. Clean contacts with a suitable electrical contact cleaner if necessary to maintain good electrical conductivity.

If you encounter any issues with the Servo Motor Connectors, refer to the troubleshooting guide provided in the product manual. Common problems may include intermittent connections, signal loss, or physical connector damage.

For repair or replacement, only use genuine parts and accessories authorized by the manufacturer to ensure compatibility and safety.

Our technical support team is available to assist with installation guidance, troubleshooting, and product information to help you maximize the performance and reliability of your servo motor systems.
