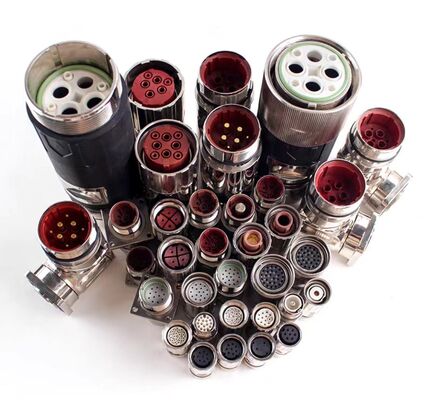

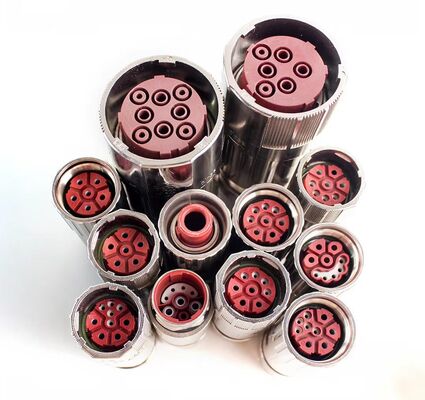

923 Series Servo Motor Connector Aviation Plug with 1000V Voltage Rating Multiple Pin Configurations and Wide Operating Temperature

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connections for various types of servo motors. These connectors are essential in applications involving Hydraulic Brake Motors, Electro Hydraulic Servo systems, and AC Servo Motor Drivers, ensuring optimal performance and durability in demanding environments. Available in multiple configurations, these connectors cater to a wide range of industrial and automation needs.

One of the key features of these Servo Motor Connectors is their versatility in terms of the number of contacts. They come in several options including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin variants, allowing users to select the perfect connector type based on the complexity and requirements of their servo motor setup. This flexibility ensures compatibility with a broad spectrum of servo motor applications, from simple single-axis systems to complex multi-axis machinery.

The termination type of these connectors is designed to accommodate different installation preferences and technical requirements. They support both crimp and solder termination methods, providing secure and stable connections. Crimp termination is ideal for quick and reliable assembly, ensuring a firm mechanical and electrical bond, while solder termination offers enhanced conductivity and durability, making these connectors suitable for high-performance environments.

Designed to handle various wire gauges, the Servo Motor Connectors support wire sizes ranging from 18 to 24 AWG and beyond, accommodating wire diameters from 3 to 12 AWG. This broad wire gauge compatibility ensures that the connectors can be effectively used with different cable types and thicknesses, meeting the needs of diverse servo motor systems. Whether it's a compact, low-current application or a heavy-duty industrial setup, these connectors provide the necessary flexibility and robustness.

Current rating is another critical aspect of these connectors. They are capable of handling current ratings starting from 1A up to 10A and beyond, making them suitable for a wide range of electrical loads. This makes the connectors ideal for use in Hydraulic Brake Motors and Electro Hydraulic Servo systems, where current demands can vary significantly. Their ability to safely carry higher currents ensures reliable operation and protection against electrical failures.

The Servo Motor Connectors are specifically designed as connector types for servo motor applications. Their robust construction and precise engineering make them perfect for integration with AC Servo Motor Drivers and other servo control equipment. These connectors provide stable and low-resistance connections, which are crucial for maintaining the accuracy and responsiveness of servo motor systems in automation, robotics, and industrial machinery.

In addition to their technical specifications, these connectors are built with high-quality materials that ensure excellent durability and resistance to environmental factors such as vibration, temperature variations, and moisture. This makes them suitable for use in harsh industrial environments where Hydraulic Brake Motors and Electro Hydraulic Servo systems operate. Their reliable performance reduces downtime and maintenance costs, contributing to overall system efficiency.

In summary, the Servo Motor Connectors offer a comprehensive solution for connecting servo motors in a wide range of applications. With multiple pin configurations, flexible termination options, broad wire gauge compatibility, and reliable current ratings, these connectors meet the demanding requirements of Hydraulic Brake Motors, Electro Hydraulic Servo units, and AC Servo Motor Drivers. Their robust design and high-quality construction ensure long-lasting performance, making them an essential component for any servo motor-based system.

Features:

• Product Name: Servo Motor Connectors
• Application: Industrial Automation
• Compatible with High Torque DC Servo Motor and AC Servo Drive systems
• Material: Durable Metal and Plastic construction
• Current Rating Options: 1A, 10A, and more
• Contact Plating: Available in Silver and Gold-plated Pins

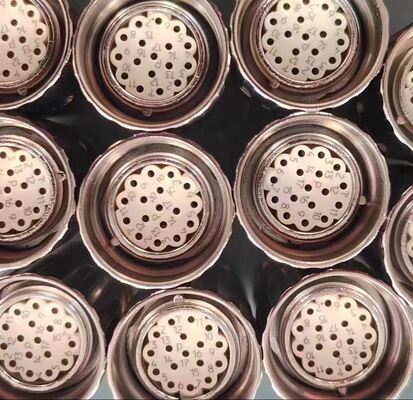

• Gender Options: 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN connectors
• Designed for reliable connections in High Torque DC Servo Motor applications

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to deliver exceptional performance and reliability in various industrial and automation applications. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure high-quality and safety compliance, making them an ideal choice for demanding environments. With a voltage rating of 1000V, they are perfectly suited for high-power applications, including AC Servo Drive systems, Electro Hydraulic Servo mechanisms, and AC Brushless Servo Motor setups.

These connectors support multiple mounting types, including panel mount and cable mount options, providing flexibility in installation to suit different equipment configurations. The termination types available are crimp and solder, allowing for secure and durable electrical connections. The connectors come with varied gender options, including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin versions, accommodating diverse wiring and signal requirements. Additionally, the contact plating is available in silver or gold-plated pins, enhancing conductivity and resistance to corrosion for long-term performance.

In practical application scenarios, the NO MARK 6FX2003 connectors are extensively used in AC Servo Drive systems, where precise motor control and reliable signal transmission are critical. They are also integral to Electro Hydraulic Servo systems, providing robust connections that withstand the rigors of hydraulic power and control environments. Furthermore, these connectors are well-suited for AC Brushless Servo Motor installations, supporting efficient power delivery and signal integrity essential for smooth motor operation.

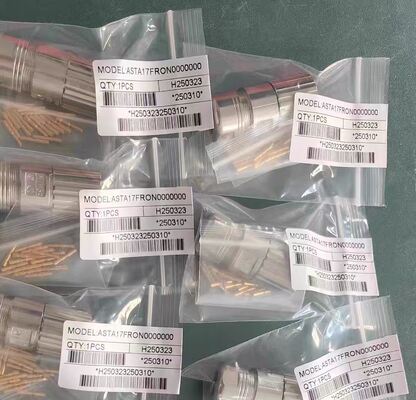

The supply ability of 1000 pieces per day and a minimum order quantity of 100 units make these connectors readily available for mass production or large-scale industrial projects. Packaged carefully in carton boxes to ensure safe delivery, the connectors have a fast delivery time of 1-3 working days. Payment terms are flexible, accepting T/T and PayPal, facilitating convenient transactions for both domestic and international customers.

Overall, the NO MARK Servo Motor Connectors 6FX2003 offer a reliable, high-quality connection solution for various servo motor control systems, enhancing operational efficiency and durability in industrial automation, robotics, and motion control applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed for high performance in industrial automation applications. Manufactured in China, these connectors come with CE and ISO9001 certifications, ensuring top quality and reliability. With a minimum order quantity of 100 units, we offer flexible purchasing options to meet your project needs.

Brand Name: NO MARK

These connectors are available in both panel mount and cable mount types, featuring contact plating options including silver and gold-plated pins for enhanced conductivity and durability. The combination of metal and plastic materials ensures a robust and long-lasting product suitable for demanding environments.

Our supply ability is 1000 pieces per day, with packaging details that include secure carton boxes to protect your order during shipment. Delivery time is fast, typically within 1-3 working days, and we accept payment terms such as T/T and PayPal for your convenience.

Designed specifically for servo motor applications, these connectors are an ideal solution for integrating with AC servo motor drivers and hydraulic brake motors, providing reliable connectivity and performance in hydraulic brake motors systems and other industrial automation setups.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems. For technical support, please ensure that you have the product model number and specifications available when seeking assistance. Our support team can help with installation guidance, troubleshooting, compatibility questions, and maintenance tips to ensure optimal performance of your servo motor connectors.

We offer comprehensive services including product customization, repair, and replacement parts for our servo motor connectors. Additionally, detailed datasheets and user manuals are available to help you understand the technical aspects and proper handling of the connectors.

For optimal performance, please follow the recommended installation procedures and environmental guidelines provided in the technical documentation. Regular inspection and cleaning of the connectors can prevent connection issues and extend the product's service life.

Our technical support team is committed to providing timely and effective solutions to any issues you may encounter with your servo motor connectors, ensuring minimal downtime and maximum efficiency in your applications.
