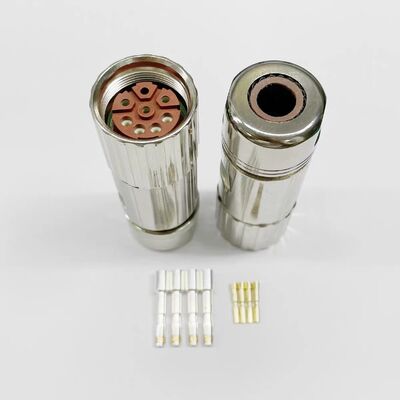

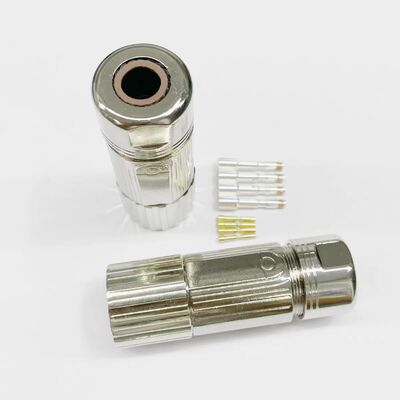

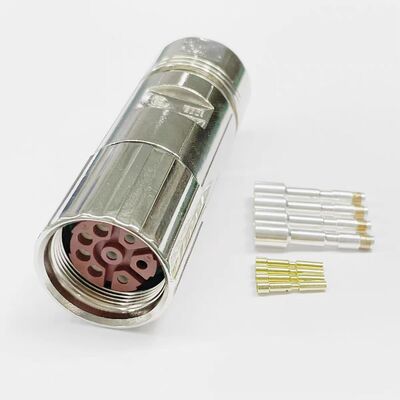

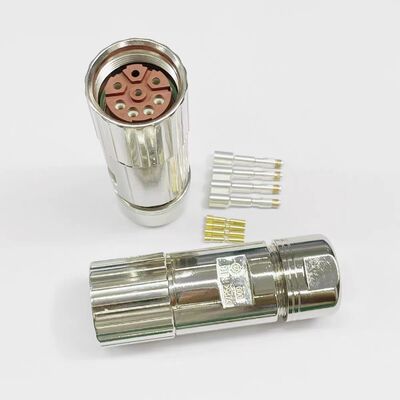

Servo motor M23 connector 6FX2003-0LU00 encoder 6-pin aviation plug threaded type

Product Description:

Servo motor connectors are essential components designed to ensure reliable and efficient connections in various servo motor systems, including Electro Hydraulic Servo applications, AC Servo Drive setups, and High Torque DC Servo Motor configurations. These connectors are engineered to handle a wide range of current ratings, typically from 1A to 10A and beyond, making them suitable for both low-power control signals and high-power motor drives.

One of the key features of these servo motor connectors is their compatibility with different wire gauges, ranging from 18 to 24 AWG, and even accommodating larger diameters from AWG 3 to 12. This flexibility allows for the use of thicker or thinner wires depending on the power and signal requirements of the servo motor system. Whether it’s a delicate signal line in an AC Servo Drive or a robust power line in a High Torque DC Servo Motor, these connectors provide the necessary adaptability.

Servo motor connectors come in various gender configurations to suit diverse application needs. Commonly available options include 4-pin, 6-pin, 8-pin, 12-pin, and even 17-pin connectors. This variety ensures that users can select the exact connector type required for their specific servo motor setup, whether it’s a simple Electro Hydraulic Servo control system or a complex multi-phase AC Servo Drive mechanism. The different pin counts also facilitate the transmission of multiple signals and power lines through a single connector, streamlining wiring and improving system organization.

The termination type of these connectors is versatile, with both crimp and solder options available to accommodate different installation preferences and requirements. Crimp terminations provide a quick, reliable, and mechanically strong connection, ideal for field installations and maintenance. On the other hand, solder terminations offer excellent electrical conductivity and durability, often preferred in high-performance or permanent installations such as those found in High Torque DC Servo Motor systems.

Constructed from high-quality materials, servo motor connectors typically feature metal contacts combined with robust plastic housings. The metal components ensure excellent electrical conductivity, corrosion resistance, and mechanical strength, essential for maintaining stable connections under demanding conditions. The plastic housings provide insulation, protection against environmental factors, and secure locking mechanisms to prevent accidental disconnections. This combination of metal and plastic materials results in connectors that are both durable and reliable, capable of withstanding the vibrations and stresses commonly encountered in Electro Hydraulic Servo and AC Servo Drive environments.

In summary, servo motor connectors are indispensable for establishing secure and efficient electrical connections in a variety of servo motor applications. Their broad current rating range, adaptable wire gauge compatibility, multiple pin configurations, and flexible termination types make them highly versatile components suitable for diverse systems such as Electro Hydraulic Servo controls, AC Servo Drives, and High Torque DC Servo Motors. With their robust metal and plastic construction, these connectors ensure long-lasting performance and reliability, contributing to the overall efficiency and effectiveness of servo motor operations.

Features:

• Product Name: Servo Motor Connectors
• Material: Metal/Plastic
• Gender Options: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Contact Plating: Silver Pin, Gold Plated Pin
• Mounting Type: Panel Mount, Cable Mount
• Number of Contacts: 8PIN, 4PIN, 6PIN, 12PIN, 17PIN
• Compatible with AC Servo Drive systems
• Ideal for High Torque DC Servo Motor applications
• Suitable for Hydraulic Brake Motors connectivity

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to provide reliable and efficient connections in various servo motor applications. Manufactured in China and certified with CE and ISO9001, these connectors ensure high quality and durability, making them ideal for demanding industrial environments. With a voltage rating of 1000V and compatibility with wire gauges ranging from 18-24 AWG to larger diameters such as AWG 3-12, these connectors support a wide range of electrical requirements. Their versatile design includes multiple contact options—8-pin, 4-pin, 6-pin, 12-pin, and 17-pin—catering to different servo motor configurations and control needs.

The servo motor connectors are perfectly suited for use with brushless servo motors, high torque DC servo motors, and AC brushless servo motors. In industrial automation, these connectors facilitate precise control and power transmission, ensuring smooth and efficient operation of servo motors in robotics, CNC machinery, and automated assembly lines. Their robust construction supports operating temperatures from -40℃ to +105℃, allowing them to perform reliably in harsh conditions such as extreme cold or heat commonly found in manufacturing plants and outdoor installations.

These connectors find application occasions in various scenarios, including factory automation systems where brushless servo motors require stable and secure electrical connections to maintain high performance and minimize downtime. High torque DC servo motors utilized in packaging machines and conveyor systems benefit from the connector’s ability to handle high current and voltage ratings. In addition, AC brushless servo motors used in precision positioning and motion control systems rely on these connectors for accurate signal transmission and power delivery.

With a supply ability of 1000 pieces per day and a minimum order quantity of 100, NO MARK ensures prompt delivery within 1-3 working days, packaged securely in carton boxes to prevent damage during transit. Flexible payment terms such as T/T and PayPal facilitate smooth procurement processes for businesses worldwide. Overall, the NO MARK 6FX2003 Servo Motor Connectors provide a dependable solution for enhancing the performance and reliability of various servo motor types across multiple industrial applications.
