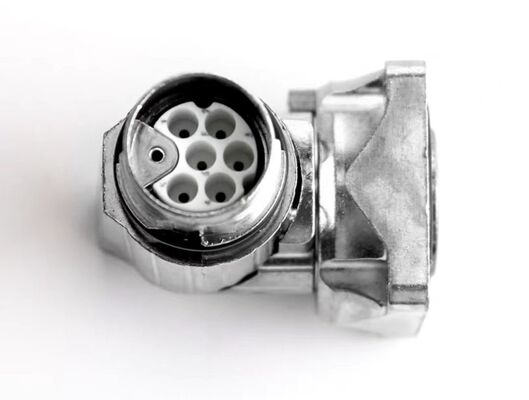

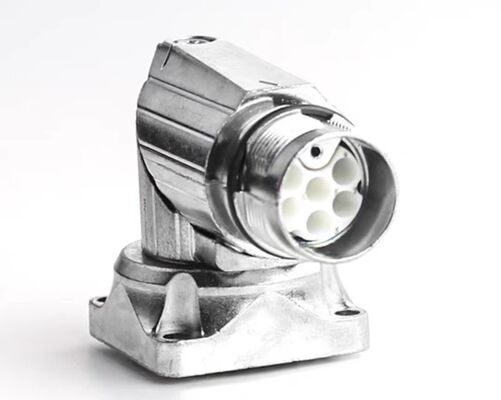

Servo Motor Connector M17 Power Socket BEDC854MR0000150A400 Compatible with Lenz Motor for Industrial Automation

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connections in various servo motor applications, including Hydraulic Brake Motors, DC Servo Motor Drive systems, and High Torque DC Servo Motor configurations. These connectors are engineered to provide secure mounting, excellent electrical performance, and durability, making them indispensable in both industrial and commercial settings.

One of the key features of our Servo Motor Connectors is their versatile mounting options. Available in both Panel Mount and Cable Mount types, these connectors offer flexibility to suit different installation needs. Panel Mount connectors are ideal for fixed installations where the connector is mounted directly onto a control panel or chassis. On the other hand, Cable Mount connectors provide a convenient and flexible solution for direct cable connections, facilitating easy assembly and maintenance.

The current rating of these connectors is designed to accommodate a wide range of servo motor applications. They support current ratings from as low as 1A to as high as 10A and beyond, ensuring compatibility with various power requirements. This range makes them suitable for delicate control systems as well as more demanding motor drives, such as those found in High Torque DC Servo Motor setups and Hydraulic Brake Motors, where precise control and high power are essential.

Termination options for these connectors include both crimp and solder types, catering to different assembly preferences and requirements. Crimp termination provides a quick and reliable method for securing wires without the need for soldering, which is beneficial in mass production or field servicing. Solder termination, on the other hand, ensures a strong and stable electrical connection, often preferred in applications where vibration resistance and long-term reliability are critical, such as in DC Servo Motor Drive systems.

Insulation resistance is a crucial attribute for maintaining the safety and performance of servo motor connections. Our Servo Motor Connectors offer insulation resistance options tailored for 6PIN and 7PIN configurations, ensuring that electrical isolation between contacts is maintained effectively. This high insulation resistance helps prevent short circuits and electrical leakage, which is vital for the smooth operation of sensitive servo motor controls and the protection of connected equipment.

The construction materials used in these connectors combine metal and plastic components to optimize durability and performance. The metal parts provide excellent conductivity and mechanical strength, ensuring that the connectors can withstand mechanical stresses and maintain a stable electrical connection. The plastic parts offer insulation, environmental protection, and resistance to corrosion, contributing to the overall longevity and reliability of the connectors in various operating environments.

In applications involving Hydraulic Brake Motors, the robust design and high current rating of these Servo Motor Connectors ensure that braking signals and motor controls are transmitted accurately and without interruption. Similarly, in DC Servo Motor Drive applications, the connectors facilitate precise control signals and power delivery, which are critical for achieving the desired motor performance and responsiveness.

High Torque DC Servo Motor systems benefit significantly from these connectors due to their ability to handle higher current loads and maintain reliable connections under demanding conditions. The combination of strong mechanical mounting, high insulation resistance, and flexible termination options makes these connectors an ideal choice for such high-performance motor applications.

In summary, Servo Motor Connectors are versatile, reliable, and designed to meet the rigorous demands of modern servo motor systems. With options for panel and cable mounting, a wide range of current ratings, crimp and solder termination types, and robust insulation resistance for 6PIN and 7PIN configurations, these connectors are perfectly suited for Hydraulic Brake Motors, DC Servo Motor Drive, and High Torque DC Servo Motor applications. Their durable metal and plastic construction ensures long-lasting performance, making them a vital component in achieving efficient and safe motor control.

Features:

• Product Name: Servo Motor Connectors
• Model: 6FX2003
• Wire Gauge: 18-24 AWG or more, AWG 3-12 Diameter
• Termination Type: Crimp/Solder
• Connector Type: Servo Motor
• Insulation Resistance: Available in 6PIN and 7PIN configurations
• Compatible with High Torque DC Servo Motor applications
• Ideal for use with Hydraulic Brake Motors
• Supports AC Brushless Servo Motor connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are expertly designed to meet the rigorous demands of industrial automation applications. Manufactured in China and certified with CE and ISO9001, these connectors ensure high quality and reliability. With a supply ability of 1000 pieces per day, they are readily available to support large-scale production needs. Their minimum order quantity is 100 units, making them suitable for both small and bulk orders. Packaged securely in carton boxes, these connectors are delivered within 1-3 working days, ensuring fast turnaround times. Payment can be conveniently made through T/T or PayPal, providing flexible options for customers worldwide.

These servo motor connectors are engineered to operate efficiently within a wide temperature range from -40℃ to +105℃, making them ideal for harsh industrial environments. They support various current ratings, including 1A and 10A, catering to different power requirements. The connectors come in multiple configurations with 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin contacts, allowing compatibility with a broad spectrum of servo motor drivers and drives. Their versatile mounting types—panel mount or cable mount—offer flexible installation options to suit different machinery setups.

Specifically tailored for applications involving AC Servo Motor Drivers and DC Servo Motor Drives, the 6FX2003 connectors provide secure and stable electrical connections, which are critical for precise motor control and performance. Whether used in robotics, CNC machines, conveyor systems, or automated production lines, these connectors ensure seamless communication between the motor drivers and the servo motors, enhancing overall system efficiency and reliability.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are essential components in the industrial automation sector. Their robust design, multiple pin configurations, and adaptability to both AC Servo Motor Drivers and DC Servo Motor Drives make them indispensable for engineers and technicians aiming to achieve optimal motor control performance in demanding operational scenarios.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards in industrial automation. Manufactured in China and certified with CE and ISO9001, these connectors ensure reliable performance in demanding environments.

We offer product customization services tailored to your specific needs, including options for gender configurations such as 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN to suit various applications. The connectors are compatible with DC Servo Motor Drive systems and Electro Hydraulic Servo setups, providing excellent insulation resistance especially for 6PIN and 7PIN variants.

Operating efficiently within a temperature range of -40℃ to +105℃, these servo motor connectors are ideal for DC Servo Motor Drive applications requiring durability and precision. Our minimum order quantity is 100 pieces, with a supply ability of 1000 pcs/day, ensuring timely delivery within 1-3 working days.

Packaging is done carefully in carton boxes to protect the product during transit. We accept flexible payment terms including T/T and PayPal to facilitate smooth transactions. Trust our Servo Motor Connectors for your industrial automation needs, combining quality, customization, and fast delivery.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and compatibility information to ensure optimal performance of your servo motor systems.

We provide detailed product documentation, including datasheets and wiring diagrams, to help you select and implement the right connectors for your needs. Our technical team is available to assist with custom configurations and to address any specific requirements you may have.

In addition to support, we offer a range of services such as connector customization, testing, and quality assurance to meet industry standards. Whether you need help with product selection, integration, or maintenance, our experts are committed to delivering solutions that enhance the efficiency and reliability of your servo motor installations.
