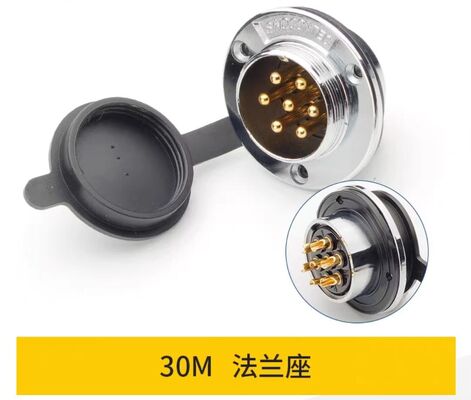

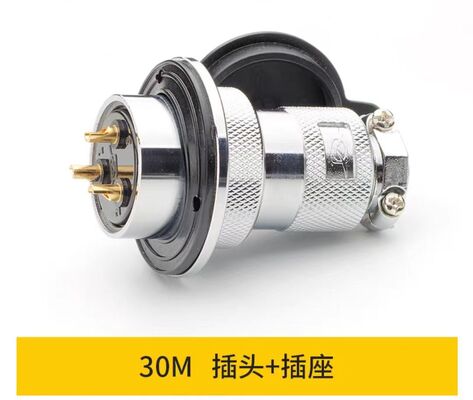

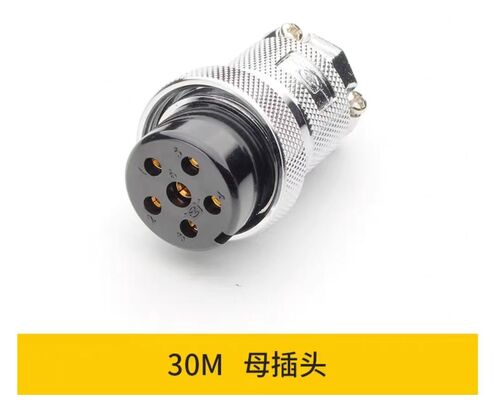

Zhongqiang Aviation Plug and Socket 30M with 30mm Opening 1000V Voltage Rating Metal/Plastic Servo Motor Connector

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connectivity for a wide range of servo motor applications. Built to meet the demanding requirements of modern automation and control systems, these connectors ensure seamless communication and power transfer between servo motors and their respective controllers, such as AC Servo Motor Drivers. Whether you are working with hydraulic brake motors or other advanced servo motor systems, these connectors offer the durability and performance necessary to maintain optimal operation.

Constructed from a combination of high-quality metal and plastic materials, the Servo Motor Connectors strike an ideal balance between robustness and lightweight design. The metal parts provide excellent mechanical strength and resistance to wear and corrosion, while the plastic components contribute to insulation and reduce overall weight. This combination makes the connectors highly suitable for use in environments where both mechanical stress and electrical reliability are critical factors, such as in hydraulic brake motors and precision servo motor control systems.

One of the standout features of these connectors is their versatility in terms of pin configurations. Available in multiple options including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin variants, the connectors can accommodate a wide variety of servo motor wiring requirements. This wide range of contact numbers makes them compatible with numerous types of servo motors and controllers, allowing engineers and technicians to select the exact connector that matches their specific application needs. Whether you require a simple 4-pin connector for basic motor control or a complex 17-pin connector for advanced signal and power integration, these connectors provide a perfect fit.

Mounting options for the Servo Motor Connectors further enhance their adaptability. They are designed to support both panel mount and cable mount configurations, offering flexibility in installation and system integration. Panel mount connectors are ideal for secure and stable attachment to control panels or equipment housings, ensuring a fixed and reliable connection point. On the other hand, cable mount connectors facilitate easy connection and disconnection in cable assemblies, making them suitable for applications requiring frequent maintenance or modular system setups. This dual mounting capability makes the connectors well-suited for diverse industrial environments and application scenarios.

In addition to mechanical and mounting features, the contact plating of these connectors plays a crucial role in ensuring long-term electrical performance. Available with silver-plated or gold-plated pins, the connectors offer superior conductivity and corrosion resistance. Silver plating provides excellent electrical conductivity and is cost-effective, making it a popular choice for many servo motor applications. Gold plating, while more expensive, offers enhanced resistance to oxidation and ensures consistent low-resistance connections over extended periods, especially in harsh or high-reliability environments such as hydraulic brake motors or precision AC Servo Motor Driver setups.

Whether employed in industrial automation, robotics, or specialized motor control systems, these Servo Motor Connectors deliver exceptional performance and reliability. Their robust construction, multiple contact options, flexible mounting methods, and high-quality contact plating make them an indispensable component for engineers designing and maintaining servo motor systems. By ensuring secure and stable electrical connections, these connectors contribute directly to the smooth operation and longevity of hydraulic brake motors and AC servo motor drivers alike.

In summary, the Servo Motor Connectors combine durable metal and plastic construction with versatile pin configurations ranging from 4 to 17 pins, flexible panel or cable mounting options, and premium silver or gold contact plating. These features collectively provide a dependable and adaptable solution for connecting servo motors in various demanding industrial applications, including hydraulic brake motors and AC servo motor driver systems. Choosing these connectors means investing in quality, reliability, and efficient motor control connectivity.

Features:

• Product Name: Servo Motor Connectors
• Contact Plating: Silver Pin and Golded Pin options available
• Mounting Type: Panel Mount and Cable Mount
• Current Rating: Supports 1A, 10A, and higher currents
• Number of Contacts: Available in 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations
• Wire Gauge Compatibility: Suitable for 18-24 AWG or larger, including 3-12 AWG diameter wires
• Ideal for use with Hydraulic Brake Motors
• Compatible with AC Servo Drive systems
• Supports DC Servo Motor Drive applications

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specially designed for high-performance AC Servo Drive systems, providing reliable and efficient connections essential for industrial automation. Manufactured in China, these connectors meet stringent quality standards, holding CE and ISO9001 certifications, which ensure their suitability for critical applications involving AC Brushless Servo Motors and other servo drive equipment. With a voltage rating of 1000V and an operating temperature range from -40℃ to +105℃, these connectors perform reliably in diverse and demanding environments, from cold storage facilities to high-temperature industrial settings.

These connectors are available in various gender configurations including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options, making them highly versatile and compatible with a wide range of AC Servo Drive models. Constructed from durable metal and plastic materials, the 6FX2003 connectors ensure long-lasting mechanical strength and excellent electrical insulation, which is critical for maintaining signal integrity and power transmission in servo motor systems.

In practical applications, the 6FX2003 connectors are widely used in automation machinery, robotics, CNC equipment, and precision manufacturing lines where AC Brushless Servo Motors are employed to deliver precise motion control. Their robust construction and reliable connection performance enable seamless integration into complex servo drive systems, reducing downtime and maintenance costs.

Furthermore, with a supply ability of 1000 pieces per day and a minimum order quantity of 100, these connectors cater well to both small-scale and large-scale production needs. Customers can expect prompt delivery within 1-3 working days, packaged securely in carton boxes to prevent damage during transportation. Payment is flexible, supporting T/T and PayPal methods, which facilitates smooth and efficient procurement processes.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are ideal for engineers and system integrators looking for reliable connectivity solutions for their AC Servo Drive installations, especially in applications involving AC Brushless Servo Motors. They combine quality, versatility, and rapid delivery to support the critical demands of modern industrial automation.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance, making them ideal for applications such as AC Servo Drive, Hydraulic Brake Motors, and AC Brushless Servo Motor systems. Manufactured in China under strict quality controls with CE and ISO9001 certifications, these connectors ensure reliable and efficient operation.

We offer customization services to tailor the connectors to your specific needs. The connectors support wire gauges ranging from 18-24 AWG or more, and AWG 3-12 diameter, accommodating various cable sizes. Available termination types include crimp and solder, providing flexible options for secure connections. The gender options include 4PIN, 6PIN, 7PIN, 8PIN, 12PIN, and 17PIN configurations to suit diverse servo motor requirements.

Constructed from durable metal and plastic materials, our connectors boast excellent insulation resistance and robust performance under demanding conditions. Packaging is done in sturdy carton boxes to ensure safe delivery. We maintain a supply ability of 1000 pieces per day, with a minimum order quantity of 100 pieces. Delivery time is fast, typically within 1-3 working days, and we accept payment via T/T and PayPal for your convenience.

Choose our NO MARK brand Servo Motor Connectors for dependable connectivity solutions tailored to your AC Servo Drive, Hydraulic Brake Motors, and AC Brushless Servo Motor applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for your servo motor systems. We offer comprehensive technical support to ensure optimal performance and ease of installation. Our support services include detailed product documentation, wiring guides, and troubleshooting assistance to help you quickly resolve any issues.

We also provide custom configuration options to meet specific application requirements. Our technical team is available to assist with product selection, compatibility checks, and integration advice to ensure seamless operation within your system.

For maintenance and repair, we recommend regular inspection of connectors for wear and secure engagement to prevent signal loss or power interruptions. Replacement parts and upgrade kits are available to extend the life of your equipment.

Our commitment is to deliver high-quality servo motor connector solutions along with responsive technical support to maximize your system's efficiency and reliability.
