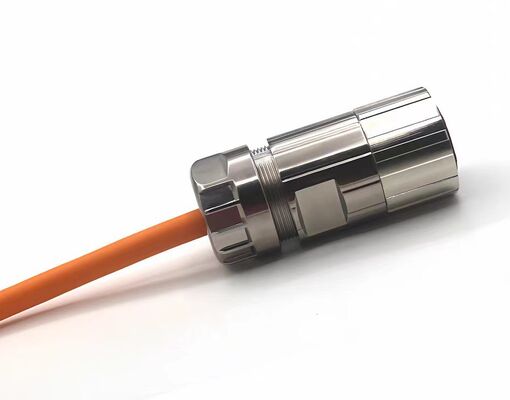

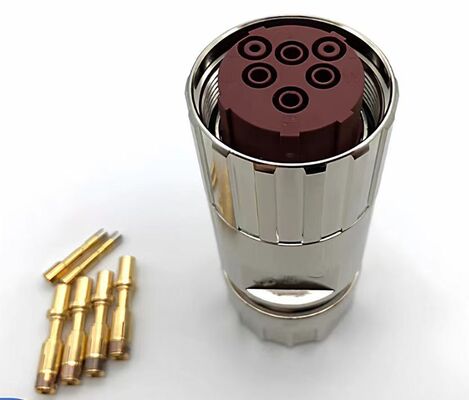

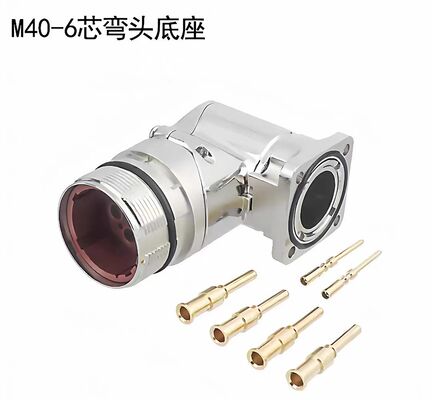

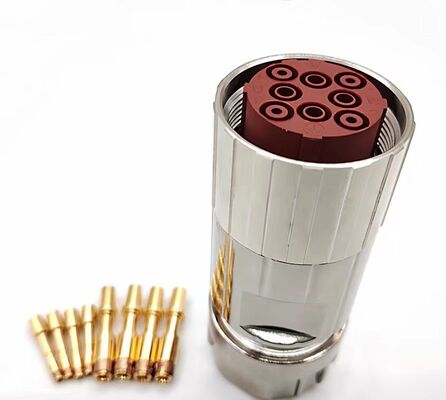

Power supply cable connector 0LU10 for S120 servo motor M40-6 core connection

Product Description:

The 6FX2003 series Servo Motor Connectors are meticulously designed to meet the demanding requirements of modern automation and motion control systems. These connectors are ideal for use with AC Brushless Servo Motors, AC Servo Drives, and DC Servo Motor Drives, providing reliable and efficient electrical connections that ensure optimal performance and durability in various industrial applications.

One of the standout features of the 6FX2003 Servo Motor Connectors is their versatility in terms of the number of contacts available. The product range includes options with 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin configurations. This variety allows engineers and system designers to select the perfect connector type to match their specific wiring and signal transmission needs, whether for simple power connections or complex multi-signal setups in servo motor systems.

The connectors are engineered to accommodate a wide range of wire gauges, supporting wire sizes from 18 AWG up to 24 AWG or even larger, covering wire diameters from AWG 3 to 12. This flexibility ensures compatibility with different cable types and thicknesses, enabling secure and stable connections for power, feedback, and control signals in servo motor applications. The ability to handle heavier gauge wires also means these connectors are well-suited to high-current demands, making them an excellent choice for both AC Brushless Servo Motors and various servo drive systems.

In terms of gender, the 6FX2003 connectors offer both male and female versions across all pin configurations (4-pin, 6-pin, 8-pin, 12-pin, and 17-pin). This dual-gender availability facilitates straightforward mating and connection between the servo motor and its drive or control unit, promoting ease of installation and maintenance. The connectors are designed to provide robust mechanical and electrical integrity, minimizing the risk of disconnections or signal loss during operation.

The contact plating of the 6FX2003 connectors is another critical aspect that enhances their performance and longevity. These connectors feature high-quality silver-plated contacts, with some pins also available in gold plating. Silver plating offers excellent conductivity and corrosion resistance, which is vital for maintaining reliable electrical connections in harsh industrial environments. Gold-plated pins further improve contact reliability by providing superior resistance to oxidation and wear, ensuring consistent signal transmission over extended service life.

These robust contact materials make the 6FX2003 connectors particularly suitable for demanding applications involving AC Servo Drives and DC Servo Motor Drives, where stable and precise electrical connections are essential for accurate motor control and feedback. The combination of silver and gold plating helps to reduce contact resistance and improve overall connector performance, contributing to energy efficiency and system reliability.

Additionally, the 6FX2003 Servo Motor Connectors are designed with user-friendly features that simplify installation and integration into existing systems. Their sturdy construction and secure locking mechanisms prevent accidental disconnections and provide vibration resistance, which is crucial in dynamic environments where servo motors are commonly deployed. This reliability ensures that the connectors maintain continuous and stable connections even under mechanical stress or environmental challenges.

In summary, the 6FX2003 Servo Motor Connectors are high-performance, versatile, and durable components tailored for professional servo motor applications. With multiple pin options (4-pin, 6-pin, 8-pin, 12-pin, and 17-pin), compatibility with a wide range of wire gauges (18-24 AWG or larger, AWG 3-12 diameter), and superior contact plating options (silver and gold), these connectors provide an ideal solution for connecting AC Brushless Servo Motors, AC Servo Drives, and DC Servo Motor Drives. Their reliable electrical and mechanical properties ensure long-lasting, stable connections, making them an indispensable part of any advanced servo control system.

Features:

• Product Name: Servo Motor Connectors
• Connector Type: Servo Motor
• Compatible with Electro Hydraulic Servo systems
• Suitable for AC Brushless Servo Motor applications
• Supports DC Servo Motor Drive configurations
• Wire Gauge: 18-24 AWG or more, AWG 3-12 diameter
• Voltage Rating: 1000V
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN options available
• Termination Type: Crimp or Solder

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are specially designed to meet the demanding requirements of various industrial applications involving AC Servo Motor Drivers and Electro Hydraulic Servo systems. Manufactured in China and certified by CE and ISO9001, these connectors guarantee high quality and reliability in critical environments. With a voltage rating of 1000V and available in multiple gender configurations including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin, the 6FX2003 model offers versatile connectivity options suitable for a wide range of servo motor setups.

These connectors are ideal for use in AC Servo Drive applications where precise control and robust electrical performance are essential. Their silver and gold-plated contacts ensure excellent conductivity and resistance to corrosion, which is crucial for maintaining stable communication between the servo motor and its driver. The mounting options, including panel mount and cable mount types, provide flexibility in installation, enabling seamless integration into existing machinery or new control systems.

In automated manufacturing lines, robotics, and CNC machinery, the NO MARK 6FX2003 connectors facilitate reliable signal transmission and power delivery to AC Servo Motor Drivers, ensuring smooth and efficient operation. Similarly, in electro hydraulic servo systems, these connectors help maintain the integrity of feedback signals and power supply, which is vital for precise hydraulic control and motion accuracy.

With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, these connectors are readily available for both small-scale and large-scale production needs. The packaging in carton boxes ensures safe delivery, and the fast delivery time of 1-3 working days helps minimize downtime in critical operations. Payment options such as T/T and PayPal provide convenience and flexibility for customers worldwide.

Overall, the NO MARK 6FX2003 Servo Motor Connectors are a reliable choice for engineers and technicians working with AC Servo Drives and Electro Hydraulic Servo applications, offering durability, precision, and ease of installation to optimize system performance.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of Electro Hydraulic Servo, Hydraulic Brake Motors, and AC Brushless Servo Motor applications. Manufactured in China under strict quality control, these connectors are certified with CE and ISO9001, ensuring reliable performance and safety.

Constructed from durable metal and plastic materials, the connectors support a variety of configurations including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options. They accommodate current ratings from 1A to 10A and beyond, making them suitable for a wide range of servo motor systems. The connectors operate efficiently within a temperature range of -40℃ to +105℃, ensuring stability under harsh conditions.

We offer customization services to meet your specific wire gauge requirements, supporting 18-24 AWG and even larger diameters from AWG 3 to 12. Each order is packaged securely in carton boxes to protect the connectors during transit, with a minimum order quantity of 100 pieces.

With a supply ability of up to 1000 pieces per day, we guarantee swift delivery within 1-3 working days. Payment terms are flexible, accepting T/T and PayPal, facilitating a smooth transaction process.

Choose our NO MARK brand Servo Motor Connectors for your Electro Hydraulic Servo, Hydraulic Brake Motors, and AC Brushless Servo Motor projects, and experience high-quality, customizable solutions tailored to your industrial needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor systems. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal performance of your servo motor connectors.

We provide detailed product documentation, including datasheets and wiring diagrams, to help you understand the specifications and proper usage of the connectors. Our support team is experienced in addressing common issues such as connection stability, signal integrity, and compatibility with various servo motor models.

In addition to technical support, we offer services such as connector customization, testing, and quality assurance to meet your specific application requirements. Whether you need connectors for industrial automation, robotics, or precision machinery, our services are tailored to help you achieve seamless integration and maximum efficiency.

We are committed to delivering high-quality products and exceptional customer service to support your servo motor applications. For further assistance, please refer to our online resources or contact our support team through the appropriate channels.
