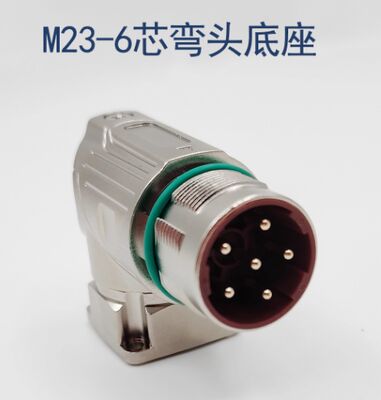

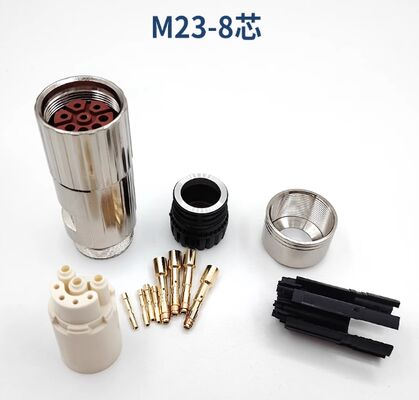

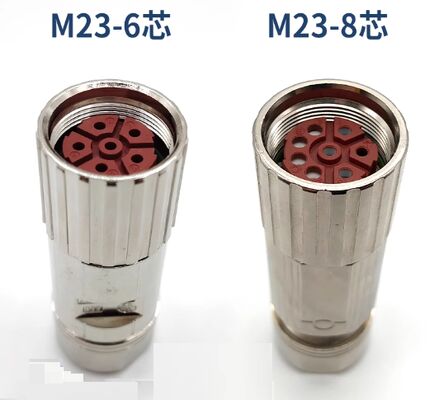

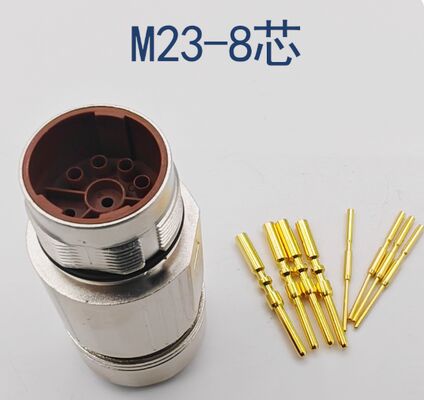

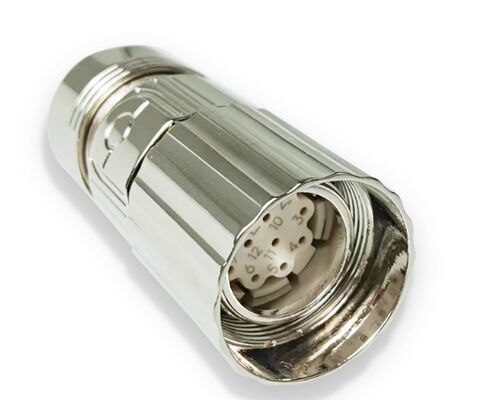

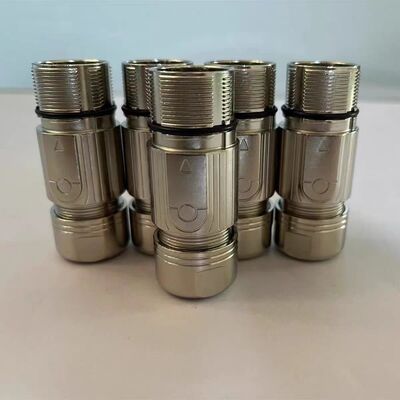

6FX2003 Servo Motor Rating and Silver Gold Plated Pins for Panel or Cable Connector M23 4PIN 6PIN 8PIN

Product Description:

The Servo Motor Connectors are essential components designed to provide reliable and efficient connectivity for various servo motor applications. These connectors are specifically engineered to meet the rigorous demands of industrial automation, ensuring seamless communication and power delivery between servo motors and their respective control systems. With a focus on durability, performance, and precision, our Servo Motor Connectors are ideal for use with High Torque DC Servo Motors, DC Servo Motor Drives, and AC Servo Drives, making them versatile solutions for diverse automation needs.

One of the standout features of these connectors is their superior contact plating. The connectors utilize both silver-plated and gold-plated pins, which significantly enhance conductivity and reduce contact resistance. The silver plating ensures excellent electrical performance and is highly resistant to corrosion, making it suitable for harsh industrial environments. Meanwhile, the gold plating on certain pins provides enhanced durability and improved resistance to wear and oxidation, which is critical for maintaining stable connections over extended periods of use.

In terms of electrical capacity, these Servo Motor Connectors are designed to handle a range of current ratings to accommodate different motor sizes and power requirements. They support current ratings from as low as 1A up to 10A and beyond, ensuring they can effectively meet the power demands of both small precision motors and larger high-torque servo systems. This wide current rating range makes them highly adaptable for various servo motor configurations, including High Torque DC Servo Motors that require robust power delivery for optimal performance.

The connector type is specifically tailored for servo motor applications, featuring configurations with 6-pin and 7-pin options. These pin counts allow for flexible wiring schemes, enabling users to connect multiple signal and power lines efficiently. The insulation resistance of these connectors is meticulously engineered to ensure electrical isolation and safety during operation. High insulation resistance minimizes the risk of short circuits and electrical interference, which is crucial for maintaining the integrity of signals in sensitive servo motor control systems.

Designed primarily for industrial automation environments, these Servo Motor Connectors excel in providing stable and secure connections in automated machinery, robotics, and manufacturing processes. Their robust construction ensures resistance to mechanical stress, vibrations, and environmental factors commonly encountered in industrial settings. This reliability is particularly important when used with DC Servo Motor Drives and AC Servo Drives, where consistent and accurate signal transmission is vital for precise motor control and smooth operation.

Moreover, the Servo Motor Connectors simplify installation and maintenance procedures. Their ergonomic design allows for easy mating and unmating, reducing downtime during assembly or repair. The connectors are also compatible with a wide range of servo motor systems, making them a convenient choice for engineers and technicians working on various automation projects.

In summary, the Servo Motor Connectors combine advanced materials, versatile pin configurations, and robust electrical properties to deliver superior performance in industrial automation applications. Whether you are working with High Torque DC Servo Motors, DC Servo Motor Drives, or AC Servo Drives, these connectors provide the reliability and efficiency needed to ensure seamless motor control and power delivery. Their high-quality contact plating, broad current rating capabilities, and excellent insulation resistance make them the ideal choice for professionals seeking dependable connectors for servo motor systems.

Features:

• Product Name: Servo Motor Connectors
• Mounting Type: Panel Mount / Cable Mount
• Gender Options: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Connector Type: Servo Motor
• Model Name: 6FX2003
• Number of Contacts: Available in 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations
• Compatible with DC Servo Motor Drive systems
• Suitable for Brushless Servo Motor applications
• Supports AC Servo Drive connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the rigorous demands of various industrial and commercial applications. Originating from China and certified with CE and ISO9001, these connectors ensure reliable performance and high-quality standards. They are ideally suited for use with High Torque DC Servo Motors, Electro Hydraulic Servo systems, and AC Servo Motor Drivers, making them indispensable components in modern automation and control systems.

These connectors are perfect for scenarios where robust electrical connections are critical. In automated manufacturing lines, the 6FX2003 connectors facilitate secure and stable connections between servo motors and controllers, ensuring precise motion control and operational efficiency. Their termination types, available in both crimp and solder, offer flexibility for different assembly processes, adapting well to various production environments.

With a current rating ranging from 1A to 10A and beyond, these connectors can handle diverse power requirements, supporting wire gauges from 18-24 AWG or even larger diameters between AWG 3-12. This versatility makes them suitable for both light-duty and heavy-duty servo motor applications. The connectors' insulation resistance for 6PIN and 7PIN configurations guarantees safety and minimizes signal interference, which is crucial in sensitive servo control circuits.

The connectors’ contact plating options include silver and gold-plated pins, which enhance conductivity and corrosion resistance, thus extending the lifespan of the connections under demanding operational conditions. Their packaging in sturdy carton boxes ensures safe shipment, with a rapid delivery time of 1-3 working days, supporting efficient supply chain management.

With a supply ability of 1000 pieces per day and a minimum order quantity of 100 units, NO MARK ensures that these servo motor connectors are readily available for large-scale industrial projects as well as smaller, specialized applications. Payment terms including T/T and PayPal provide convenient and secure transaction options for customers worldwide.

In summary, the NO MARK 6FX2003 Servo Motor Connectors are engineered for use in high-performance servo motor systems such as High Torque DC Servo Motors, Electro Hydraulic Servo setups, and AC Servo Motor Drivers. Their robust design, flexible termination options, and high-quality certifications make them ideal for a wide range of industrial automation scenarios where reliability and precision are paramount.

Customization:

Our NO MARK 6FX2003 Servo Motor Connectors are designed to provide reliable and efficient connections for AC Brushless Servo Motor and AC Servo Drive applications. Manufactured in China and certified with CE and ISO9001, these connectors ensure high quality and performance.

With a voltage rating of 1000V and multiple contact configurations including 8PIN, 4PIN, 6PIN, 12PIN, and 17PIN, the 6FX2003 model offers versatile solutions tailored to your AC Servo Drive needs. The contact plating options of Silver and Golded Pin enhance conductivity and durability, while the insulation resistance is rated for 6PIN and 7PIN contacts.

We support customization services with a minimum order quantity of 100 pieces, packaged securely in carton boxes. Our supply ability reaches up to 1000 pcs per day, ensuring prompt delivery within 1-3 working days. Payment terms include T/T and PayPal for your convenience.

Choose the 6FX2003 Servo Motor Connectors for your AC Brushless Servo Motor and AC Servo Drive projects to guarantee stable and efficient electrical connections backed by trusted certification and fast service.

Support and Services:

Our Servo Motor Connectors are designed to ensure reliable and efficient connections in various servo motor applications. For technical support, please refer to the user manual provided with the product, which includes detailed installation instructions, wiring diagrams, and troubleshooting tips.

If you encounter any issues with the connectors, verify that all connections are secure and that the connectors are compatible with your servo motor specifications. Proper handling and installation are crucial to maintaining optimal performance and preventing damage.

We offer comprehensive services including product customization, replacement parts, and repair services to meet your specific requirements. Our technical team is dedicated to assisting you in integrating our servo motor connectors into your systems effectively.

For detailed technical documentation, firmware updates, and FAQs, please visit our official website. Ensure that you always use genuine accessories and follow recommended guidelines to maximize the lifespan and reliability of your servo motor connectors.
