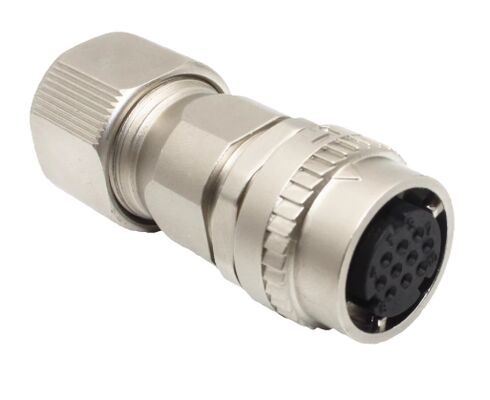

1000V Voltage Rating Servo Motor Connector with Silver and Gold Plated Contacts and Moog Gender Configuration

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connectivity solutions for a wide range of servo motor applications. These connectors are ideally suited for Brushless Servo Motor systems, Hydraulic Brake Motors, and AC Brushless Servo Motor setups, where durability and high performance are critical. With a robust construction and versatile features, these connectors ensure optimal electrical transmission and mechanical stability under demanding operational conditions.

One of the key features of these Servo Motor Connectors is their dual termination type, offering both crimp and solder options. This flexibility allows for secure and dependable cable attachments, catering to different installation preferences and ensuring a solid electrical connection. The crimp termination provides a fast and reliable mechanical connection, ideal for field installations and maintenance, while the solder termination guarantees excellent conductivity and long-term reliability, making it suitable for high-performance servo motor applications.

These connectors come with a Moog gender configuration, a standard well-recognized in the industry, allowing seamless integration with existing servo motor systems. The Moog gender ensures compatibility and interchangeability, making these connectors an excellent choice for upgrading or maintaining Brushless Servo Motor assemblies and Hydraulic Brake Motors. This standardization simplifies the design process and reduces downtime during replacements or repairs.

Contact plating is another critical aspect of these Servo Motor Connectors. They feature silver-plated contacts as well as gold-plated pins, combining the benefits of both metals to enhance electrical performance. Silver plating offers superior conductivity and resistance to corrosion, which is vital for maintaining signal integrity in AC Brushless Servo Motor systems. Meanwhile, the gold-plated pins provide exceptional durability and resistance to wear, ensuring consistent performance through numerous mating cycles. This dual plating approach ensures that the connectors deliver reliable performance even in harsh environments.

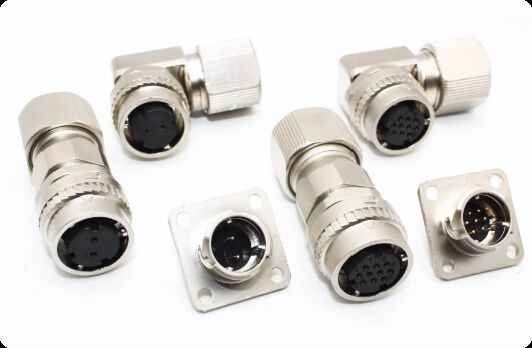

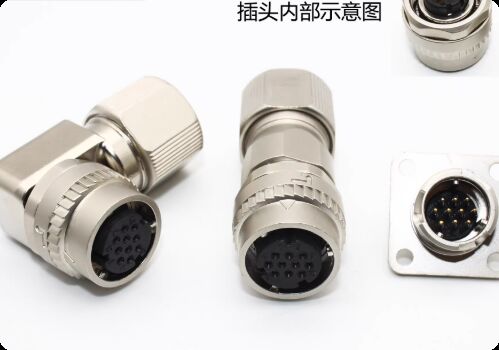

Mounting options for these connectors are versatile, including both panel mount and cable mount configurations. The panel mount type is designed for secure attachment to control panels or motor housings, providing a stable and robust connection point for servo motor wiring. On the other hand, the cable mount configuration allows for direct cable termination, offering flexibility in wiring layouts and ease of installation. This versatility makes these connectors suitable for a variety of servo motor setups, including compact and space-constrained applications.

Safety and electrical integrity are paramount in servo motor systems, and these connectors are rated for a voltage of up to 1000V. This high voltage rating ensures that they can handle the demanding electrical loads typical in Brushless Servo Motor and AC Brushless Servo Motor applications without risk of insulation breakdown or electrical failure. It also provides an added layer of protection for Hydraulic Brake Motors, which often operate under high electrical stress.

In summary, these Servo Motor Connectors offer a comprehensive solution for connecting Brushless Servo Motor systems, Hydraulic Brake Motors, and AC Brushless Servo Motor assemblies. Their crimp and solder termination types provide installation flexibility, while the Moog gender ensures compatibility with industry-standard components. The combination of silver and gold plating on contacts and pins enhances conductivity and durability, ensuring reliable electrical performance. With both panel mount and cable mount options, these connectors can adapt to various installation requirements. Additionally, the 1000V voltage rating guarantees safe and efficient operation under high electrical loads. Overall, these connectors are an excellent choice for engineers and technicians seeking dependable connectivity solutions for advanced servo motor applications.

Features:

• Product Name: Servo Motor Connectors
• Gender: Moog
• Application: Industrial Automation
• Connector Type: Servo Motor
• Voltage Rating: 1000V
• Contact Plating: Silver Pin, Golded Pin
• Compatible with High Torque DC Servo Motor applications
• Ideal for use with DC Servo Motor Drive systems
• Designed to support High Torque DC Servo Motor performance

Technical Parameters:

Applications:

The NO MARK servo motor connector, model number servo motor connector, is a high-quality product originating from China, designed specifically for use in industrial automation. Certified by both CE and ISO9001 standards, this connector ensures reliable performance and safety in various demanding applications. With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs/day, it caters efficiently to both small and large-scale production needs. Packaged securely in carton boxes, the product guarantees safe delivery within 1-3 working days, with flexible payment options including T/T and PayPal.

This servo motor connector is ideal for a wide range of application occasions and scenarios, particularly in systems utilizing brushless servo motors. These connectors are engineered to support brushless servo motors, which are commonly used in precision control applications due to their high efficiency, reliability, and smooth operation. The connector’s termination type, available in both crimp and solder, supports wire gauges from 18-24 AWG or even larger, accommodating various wiring requirements with ease. Its insulation resistance and 10PIN contact configuration ensure secure and stable electrical connections, crucial for maintaining optimal performance in industrial environments.

In hydraulic brake motors and other motor-driven systems, this servo motor connector plays a vital role in ensuring seamless connectivity and signal transmission. The robust design and quality materials used in the connector make it well-suited for harsh industrial conditions where vibration, temperature variations, and mechanical stress are common. Whether it is installed in automated manufacturing lines, robotic arms, or conveyor systems, the connector provides dependable connectivity that supports efficient and uninterrupted operation.

Furthermore, the servo motor connector is designed to be compatible with Omrons domestic contacts, enhancing its adaptability in various industrial setups. Its ability to handle wire diameters ranging from AWG 3-12 further broadens its application scope, making it suitable for diverse motor and control system configurations. Overall, the NO MARK servo motor connector is an essential component for engineers and technicians working with brushless servo motors and hydraulic brake motors, ensuring reliable connections and contributing to the smooth functioning of industrial automation systems.

Customization:

Our servo motor connectors, branded as NO MARK and model number "servo motor connector," are designed to meet the highest industry standards with CE and ISO9001 certifications. Originating from China, these connectors are ideal for applications involving DC Servo Motor Drive systems, High Torque DC Servo Motor setups, and Hydraulic Brake Motors.

We offer customization services to tailor the connectors to your specific requirements, including options for the number of contacts compatible with Omrons Domestic standards, and connector types specifically designed for servo motors. The gender of the connectors is Moog, ensuring robust and reliable connections.

The contact plating options include Silver and Gold-plated pins to ensure excellent conductivity and durability under demanding conditions. Our connectors can operate efficiently in temperatures ranging from -40℃ to +105℃, making them suitable for various harsh environments.

Each order is packaged securely in carton boxes to guarantee safe delivery. We maintain a supply ability of 1000 pcs/day with a minimum order quantity of 100 pieces. Delivery time is quick, typically within 1-3 working days, and payment terms are flexible, accepting T/T and PayPal.

Choose our customized servo motor connectors to enhance the performance and reliability of your DC Servo Motor Drive, High Torque DC Servo Motor, and Hydraulic Brake Motors applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motor systems. These connectors ensure secure signal and power transmission, minimizing downtime and enhancing system performance.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance advice to optimize the lifespan and functionality of your connectors.

We offer comprehensive services such as connector customization, compatibility verification with various servo motor models, and replacement part sourcing to meet your specific application requirements.

For best performance, we recommend proper handling and periodic inspection of the connectors to prevent wear and ensure consistent electrical contact.

Our support team is dedicated to helping you achieve seamless integration of our Servo Motor Connectors into your automation and motion control systems.
