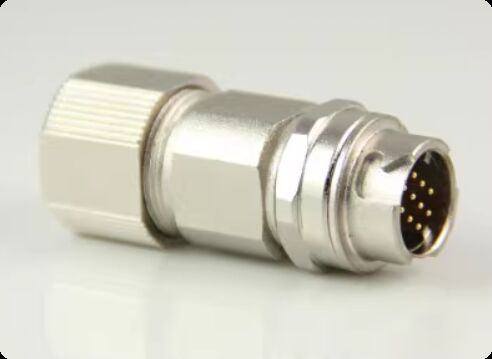

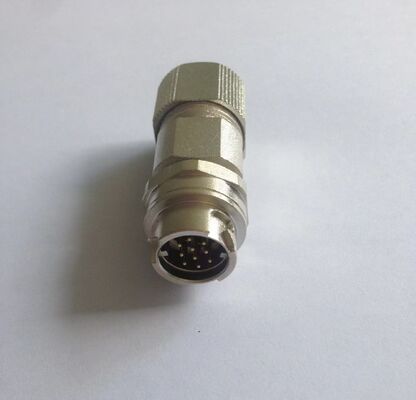

Ningbo Zhongqiang Original DK183 DDK CM10 Plug Maojwei Sinocontec Three-Buckle Connector

Product Description:

The Servo Motor Connectors are precision-engineered components designed to provide reliable and efficient connectivity for various servo motor applications. These connectors are essential in ensuring seamless communication and power transmission between the servo motor and its control system, making them indispensable in both industrial and commercial environments. Constructed from a combination of high-quality metal and durable plastic materials, these connectors offer exceptional durability and resistance to wear, ensuring a long service life even under demanding operating conditions.

One of the standout features of these Servo Motor Connectors is their advanced contact plating. The contacts are available with either silver plating or gold-plated pins, each offering distinct advantages depending on the application requirements. Silver plating provides excellent electrical conductivity and corrosion resistance, making it suitable for general-purpose use. On the other hand, gold-plated pins offer superior corrosion resistance and enhanced signal integrity, which is especially beneficial in high-precision applications where consistent performance is critical.

These connectors are specifically designed for use with High Torque DC Servo Motor systems, where reliable and stable connections are paramount. High Torque DC Servo Motors demand connectors that can handle significant current loads without compromising signal quality or connection stability. The robust design and superior contact plating of these connectors ensure that they meet these rigorous demands effectively.

In addition to their compatibility with High Torque DC Servo Motors, these connectors are also widely used in Electro Hydraulic Servo systems. Electro Hydraulic Servo technology relies heavily on precise control signals and power delivery to operate hydraulic actuators accurately. The Servo Motor Connectors facilitate this by providing secure and efficient connections, enabling smooth and responsive operation of Electro Hydraulic Servo mechanisms. This makes them a preferred choice for applications in automation, robotics, aerospace, and other fields where Electro Hydraulic Servo systems are prevalent.

The connector type is tailored specifically for servo motor applications, featuring a 10PIN configuration that supports multiple signal and power lines within a compact form factor. This 10PIN design allows for organized wiring and reduces the risk of signal interference, which is crucial for maintaining the accuracy and responsiveness of servo motor controls. Furthermore, the connectors exhibit high insulation resistance, ensuring that electrical signals remain isolated and free from leakage or cross-talk, thereby enhancing overall system reliability.

To accommodate various assembly preferences and requirements, these Servo Motor Connectors offer flexible termination options. Users can choose between crimp and solder termination types, providing versatility in installation and maintenance. Crimp termination delivers a fast and reliable method for securing wires, ideal for high-volume or field installations. Solder termination, on the other hand, offers a strong and permanent electrical connection, preferred in applications where durability and long-term stability are critical.

The combination of metal and plastic materials used in the construction of these connectors not only enhances mechanical strength but also offers excellent resistance to environmental factors such as moisture, dust, and temperature variations. This makes the connectors suitable for use in harsh industrial environments, ensuring consistent performance and minimal downtime. The ergonomically designed connectors are easy to handle and install, reducing assembly time and improving overall system efficiency.

In summary, the Servo Motor Connectors are an ideal solution for interfacing with High Torque DC Servo Motors and Electro Hydraulic Servo systems. Their high-quality contact plating options, durable material construction, 10PIN configuration, and flexible termination types make them versatile and reliable components in various servo motor applications. Whether used in automation, robotics, or hydraulic control systems, these connectors provide the performance and reliability needed to ensure optimal operation and longevity of servo motor-driven equipment.

Features:

• Product Name: Servo Motor Connectors
• Contact Plating: Silver Pin and Golded Pin options available
• Number of Contacts: Omrons Domestic standard
• Mounting Type: Panel Mount and Cable Mount configurations
• Voltage Rating: Supports up to 1000V
• Gender: Moog compatible
• Ideal for Electro Hydraulic Servo applications
• Compatible with Brushless Servo Motor systems
• Designed specifically for Electro Hydraulic Servo control units

Technical Parameters:

Applications:

The NO MARK Servo Motor Connector, model number servo motor connector, is specifically designed to meet the demanding requirements of various industrial and automation applications. Manufactured in China and certified with CE and ISO9001, this high-quality connector ensures reliable performance and durability in critical environments. With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs/day, it is an ideal choice for large-scale production needs.

One of the primary application occasions for the NO MARK Servo Motor Connector is in AC Brushless Servo Motor systems. These motors require precise and stable electrical connections to maintain optimal performance and efficiency. The servo motor connector’s metal and plastic construction, combined with insulation resistance and the ability to operate within a wide temperature range of -40℃ to +105℃, guarantees reliable connectivity even in harsh conditions. It supports wire gauges from 18-24 AWG or more, accommodating various cable sizes commonly used in these motors.

In addition to AC Brushless Servo Motors, the servo motor connector is well-suited for Hydraulic Brake Motors. These motors are used in applications where precise control and braking functionality are critical. The connector’s robust design, including 10-pin contacts compatible with Omrons Domestic standards, ensures secure and stable connections that withstand mechanical vibrations and frequent operational cycles. This makes it an excellent component for hydraulic brake motor systems that demand high reliability and safety.

The packaging details include secure carton boxes to prevent damage during transportation, and the delivery time is remarkably fast, ranging from 1 to 3 working days. Payment terms are flexible, accepting T/T and PayPal, which facilitates smooth transaction processes for customers worldwide. Overall, the NO MARK servo motor connector is an essential component for a variety of servo motor-related applications, providing dependable connectivity for AC Brushless Servo Motors, Hydraulic Brake Motors, and other related equipment.

Customization:

Our servo motor connectors, branded as NO MARK and model number servo motor connector, are designed to meet the highest industry standards with certifications including CE and ISO9001. Originating from China, these connectors are tailored for use with AC Servo Drive systems and High Torque DC Servo Motor applications, ensuring reliable and efficient performance.

We offer product customization services to suit your specific requirements. Our connectors support wire gauges ranging from 18-24 AWG or more, with diameters spanning AWG 3-12. The termination type can be customized to either crimp or solder, depending on your application needs. Constructed from durable metal and plastic materials, these connectors provide robust and long-lasting connections.

Each connector features multiple contacts compatible with Omrons Domestic standards, ensuring seamless integration with your servo motor systems. Our minimum order quantity is 100 pieces, with a supply ability of up to 1000 pcs per day, packaged securely in carton boxes for safe delivery.

We guarantee a fast delivery time of 1-3 working days and offer flexible payment terms including T/T and PayPal. Whether you are working on AC Servo Drive projects or high-performance High Torque DC Servo Motor systems, our servo motor connectors can be customized to meet your precise specifications and operational demands.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor systems, ensuring optimal performance and durability in various industrial applications. These connectors are engineered to withstand harsh environments, offering excellent resistance to vibration, moisture, and temperature fluctuations.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations. Our team of experts is dedicated to helping you achieve seamless integration of connectors with your servo motor systems, maximizing efficiency and minimizing downtime.

Services available for Servo Motor Connectors include customization options to meet specific application requirements, testing and validation to ensure compliance with industry standards, and replacement parts availability. We also provide detailed documentation, including datasheets, wiring diagrams, and installation manuals to support your technical needs.

Whether you require support during the design phase or need assistance with ongoing maintenance, our comprehensive technical support and services aim to enhance the reliability and longevity of your servo motor connections.
