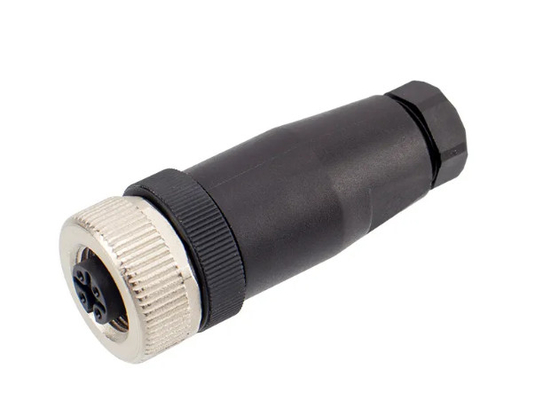

Plastic Plug 3-12pole Circular Auto Sensor Connector M12 Male Female Straight Assembly
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PA66 | Color: | Black |
|---|---|---|---|
| Type: | Mini USB Type | Waterproof: | IP67 |
| Highlight: | M12 Male Auto Sensor Connector,12pole Auto Sensor Connector,Waterproof Electrical Cable Circular Connector |
||
P67 IP68 2 3core 4pole 5 8pin PG7 PG9 A B D Coding M12 Female Male cable plug connector M12 Field Plug
Whether angled or straight, CAZN's M12 Connectors for transmission of digital and analog signals enable fully shielded connections from one device to the next in automation technology. Thanks to their optimally secure data transmission and extremely robust design, process reliability and system availability are assured with these connectors. The patented shield concept and mechanically robust construction allow reliable and safe operation, even in harsh industrial environments.
M12 Features & Benefits
1, Find Exactly What You Need: Configuration options include LEDs, field-attachable/receptacles, many pole options and flexibility in cabling
2, Reduce Installation Time: Save time and effort with an easy installation
3, Global Usability: Internationally standardized M12 connector technology with various codings
4, Flexible Designs: Choose between numerous connection possibilities to guarantee a fit for any application
M12 Features & Benefits
1, Find Exactly What You Need: Configuration options include LEDs, field-attachable/receptacles, many pole options and flexibility in cabling
2, Reduce Installation Time: Save time and effort with an easy installation
3, Global Usability: Internationally standardized M12 connector technology with various codings
4, Flexible Designs: Choose between numerous connection possibilities to guarantee a fit for any application
Pins Number: 2 3 4 5 6 8 12 17 pins

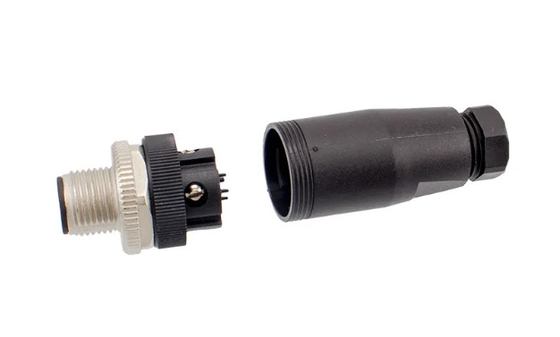

Plug: assembled type, injection molding with cable type (length can be customized at will)
Metal housing connector excellent 360° full shielding,new more damped design
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB Board type
Waterproof grade: Ip65 IP67
Products comply with IEC 61076-2-101 Industry 4.0 agreement,NEMA2000 standard
| Field | Value |
|---|---|
| Model Number | M12-4pin 5pin 8pin 12pin 17pin |
| Type | Plug - Male Pins Female pin |
| Place of Origin | Guangdong, China |
| Brand | no mark |
| Packaging | CARTON |
| Description | CONNECTOR |
| D/C | 30V |
| Number of pins | 2pin, 3pin, 4pin, 5pin, 6pin, 8pin |
| Current Rate | 2A |
| Cording | A/B/D/X |
| Contact carrier material | PA |

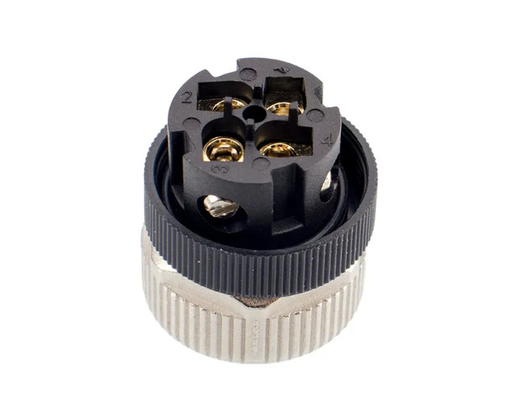

| Type of connection | Screw / solder connection |
| Cable diameter PG7 | 4~6mm |
| Cable diameter PG9 | 6~8mm |
| Degree of protection | IP67 |

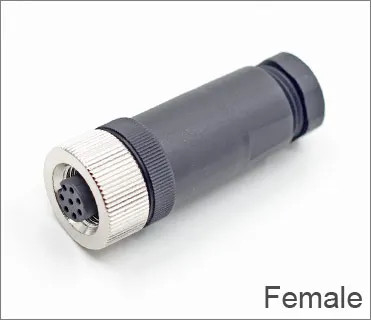

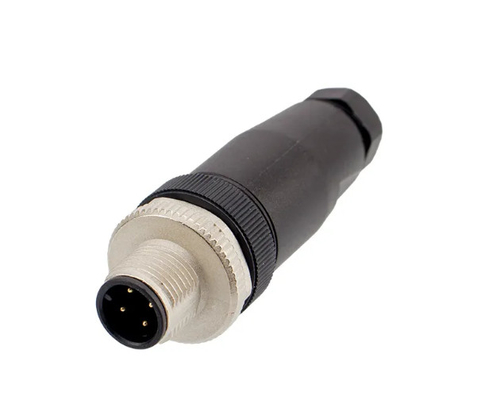

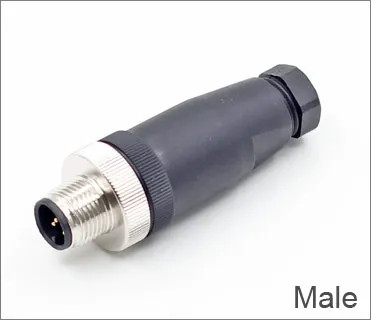

| Gender | Female and Male |
