| Material: | PA66 | Application: | Servo Connector |
|---|---|---|---|
| Name: | MDR Wire Mount Male Plug Connector | Voltage Rating: | 40V AC |
| High Light: | 40V AC Motor Side Connector,Servo Motor Side Connector,Servo Motor Connectors PA66 |
||
| Field | Value |
|---|---|
| Brand Name | NO MARK |
| Model Number | JZSP-C7M9-2-E |
| Type | Yaskawa Servo 7 series |
| Application | Servo Connector |
| Gender | Male female |
| Number of Positions | 7 pin |
| Flame Retardancy | 94V-0 |
| Insulation Material | Glass Reinforced Polyester (PBT) |
| Contact Material | Phosphorous Bronze T=0.3 |
| Solder Material | Copper, Tin-Plated/Gold-Plated (80μ'' min Lead Free) |
| Shell Material | Carbon Steel Nickel Plated |
| Contact Resistance | 35m ohm max |
| Voltage Rating | 40V AC |
| Product Name | ZSP-C7M9-2-E for Yaskawa Servo 7 Series |
| Model | SM-J27S-06FMH-7KL-M-CF |
| Length | As per your requirements |
| Condition | Fixed mounting or hyperflexible towing chain cable |
| Warranty | 1 year |
| Delivery time: | 3-10days |
| Application | Industrial Ect |
| Technical consulting support | Yes |
| MOQ | 1 Pcese |
Glass filled PBT UL94V-0,Black, Copper Alloy, Gold/Tin plating over Nickel; Support Bracket: Zinc Ally, Nickel Plating; Outer Shell; SPCC Nickel plasting; Fastener: Copper Alloy; Tin Plating; Logo: SM; Contact Resistance: 30M max.at DC 100mA
Withstanding voltage: 500V AC/rms 50Hz for 1 minute
Current Rating: 1Amp AC/DC
Operating Temperature: -55 degree C + 105 degree C
Soldering Temperature: 265degree C 6s MAX

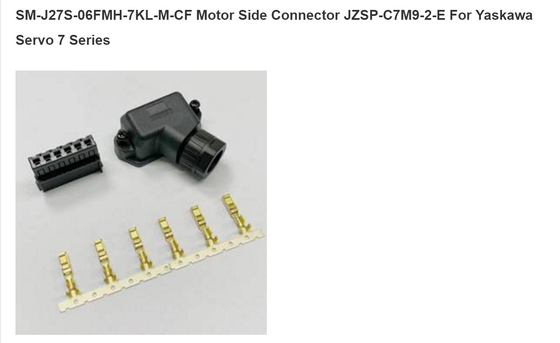

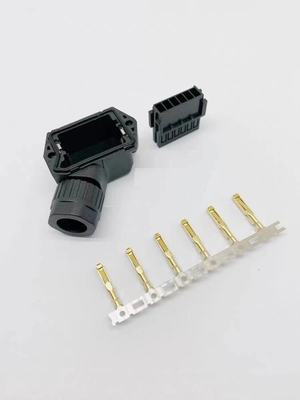

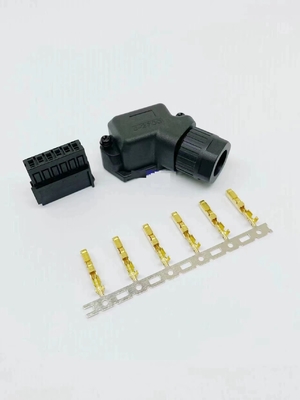

FOR:Yaskawa Servo 7 Series SM-J27S-06FMH-7KL-M-CF
Motor side connector JZSP-C7M9-2-E
Model: SM-J27S for Anchuan 7 SERVO MOTORS(200W~ 600W )
The types of different power motors are as follows:
1:SGM7J-A5 ~ C2 50W~ 150W JZSP-C7M9-1-E
2:SGM7J-02 ~ 06 200W ~ 600W JZSP-C7M9-2-E
3:SGM7J-08
Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
