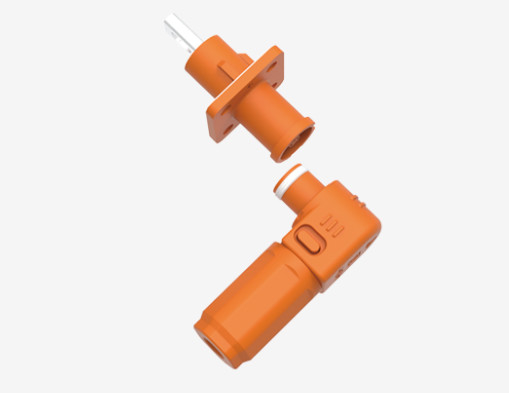

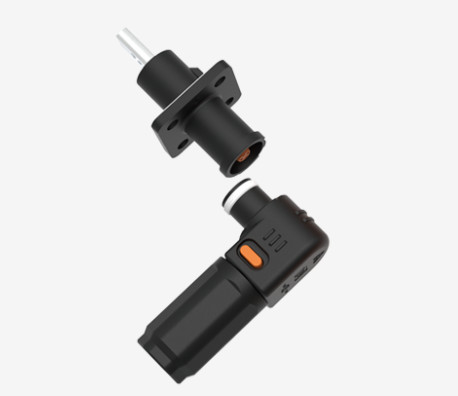

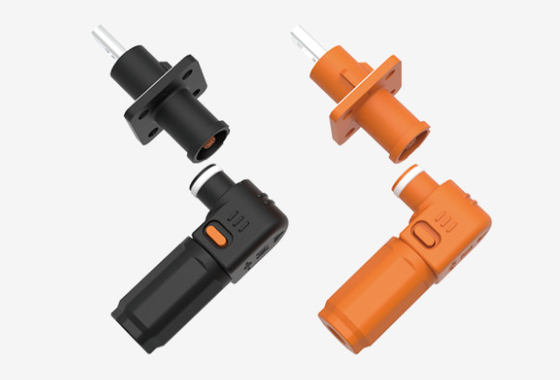

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A
Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A

Large Image :  Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: NO MARK
Certification: UL TUV
Model Number: P057C010AK02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.5~~1
Packaging Details: 1 full set in a mini plastic box 200pcs in a box
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 5000 per day
Contact Now
Detailed Product Description
Pin Coated: Silver Color: Black, Orange
Connector Gender: Male, Female Connector Style: Straight And Angle
Connector Type: Plug Current Rating: 65A 80A 125A
Insulation Resistance: 200MΩ+ Material: Copper
Number Of Contacts: 2 Operating Temperature: -40℃~+125℃
Product Name: Energy Storage Plug Connector Voltage Rating: 1000V
Durability: 100 Mating Cycles+ Withstand Voltage: 4260v Ac
Highlight:

Energy Storage Plug Connector 65A

,

Nylon Shell Energy Storage Plug Connector

,

Single Core Straight Energy Storage Connector

High voltage HV energy storage connector 60A-400A IP67 Plastic 6mm-14mm Contact Plug HV connector

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 0Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 1Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 2Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 3Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 4

The 5.7 series products are connectors for energy storage systems, which are a type of energy storage connector developed by our company specifically for the energy storage industry. They mainly include three products: 60A~120A, 120A~200A, and 250A~400A. The socket of this series of products is individually sealed with IP67 (optional), and after the head seat is inserted, it can meet IP67 (optional). It has functions such as key position and positive and negative pole color double error prevention, 360 ° arbitrary angle insertion, etc., making it convenient and fast to achieve blind insertion. This product has been granted a patent for a 360 ° rotatable plug-in energy storage connector.

Product name
ENERGY STORAGE CONNECTOR, HV connector
Rated Voltage
1000V
Rated Current
65A 80A 125A
Insulation Resistance
200MΩ+
Shielding
360°
IP Rating
IP67 (optional), IP69K, socket separately sealed (optional)
Operating Temperature
-40℃~125℃
Flammability Rating
UL94 V-0
Shell
nylon
Contact Specifications
Adapting Cable
Rated Current
6mm
10mm²/16mm²/25mm²
60A/80A/120A
8mm
25mm²/35mm²/50mm²
120A/150A/200A
12mm
70mm²/95mm²/120mm²
250A/300A/350A/400A

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 5

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 6

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 7

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 8

Nylon Shell Single Core Energy Storage Plug Connector 65A 80A 125A 9
