| Material: | PA66 | Application: | Servo Connector |
|---|---|---|---|

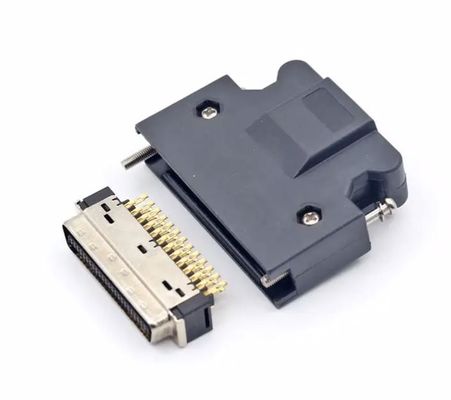

| Name: | MDR Wire Mount Male Plug Connector | Voltage Rating: | 40V AC |
| High Light: | MDR Wire Mount Male Plug Connector,1.27mm Male Plug Connector,50pin SCSI Connector |
||
| Field | Value |
|---|---|
| Brand Name | NO MARK |
| Model Number | STA-GT0350 |
| Type | MDR I/O Connector, MDR I/O Connector |
| Application | Servo Connector |
| Gender | Male |
| Number of Positions | 50 |
| Flame Retardancy | 94V-0 |
| Insulation Material | Glass Reinforced Polyester (PBT) |
| Contact Material | Phosphorous Bronze T=0.3 |
| Solder Material | Copper, Tin-Plated/Gold-Plated (80μ'' min Lead Free) |
| Shell Material | Carbon Steel Nickel Plated |
| Contact Resistance | 35m ohm max |
| Voltage Rating | 40V AC |
Glass filled PBT UL94V-0,Black, Copper Alloy, Gold/Tin plating over Nickel; Support Bracket: Zinc Ally, Nickel Plating; Outer Shell; SPCC Nickel plasting; Fastener: Copper Alloy; Tin Plating; Logo: SM; Contact Resistance: 30M max.at DC 100mA
Withstanding voltage: 500V AC/rms 50Hz for 1 minute
Current Rating: 1Amp AC/DC
Operating Temperature: -55 degree C + 105 degree C
Soldering Temperature: 265degree C 6s MAX
Item#
10114,10314
10120,10320
10126,10326
10136,10336
10150,10350
Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
