30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

Large Image :  30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: NO MARK
Certification: CE
Model Number: SM-54346-0070
Payment & Shipping Terms:
Minimum Order Quantity: 30
Packaging Details: 1 full set in a mini plastic box 200pcs in a box
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 500 per day
Contact Now
Detailed Product Description
ITEM#: M40 Material: Zinc Alloy
Color: Silver Color Heart: In Red Color
Silicone Ring: Can Replaceable
Highlight:

70A Large Motor Connector

,

8pins Servo Power Connector

,

Straight Female Servo Motor Connectors

30A 70A Large motor Connector 6 8Pins Straight Female Assembly Metal Plug Servo Power Connector M40
Essential details
Place of Origin:
Guangdong, China
Brand Name:
NO MARK
Model Number:
M40 6PIN 8PIN
Type:
M40
Application:
Power
Gender:
Female, Female
Coupling:
Screw/Threaded
Shell Material:
Zinc Alloy Nikel-plated
Insert material:
PA66 UL94-V0
Contact material:
Brass, gold-plated
PINS:
6P, 8P
Cable diameter:
16mm-26mm
Keywords:
CSTA263NN00450001000,CSTA264NN00450001000
Temperature range:
-40°C -- +130°C



Shell Material:
Zinc Nickel-plated
Type:
M40 Female Plug(Assembly)
Insert Material:
PA66 UL 94-V0
Coupling:
Threaded
Contact Material:
Brass, gold-plated
IP Level:
IP67/IP68
Applicable Temp.:
-40℃~+130℃
Termination:
Crimp
Durability:
More than 50cycles
Wire diameter:
16~26mm
Rated voltage:
AC/DC 630V/250V
Rated current:
70A/30A
Contact resistance:
≤1mΩ
Insulation resistance:
≥100mΩ
Application:
Aerospace, navigation, communication, medical, automobile, instrumentation, lighting, audio, servo motor, etc



The main body adopts high quality Zinc alloy nicked plating.

High temprerature resistance anti-aging durable

Hight toughness clamping jaws wide range of clamping wires; Anti-tension strong water proof;

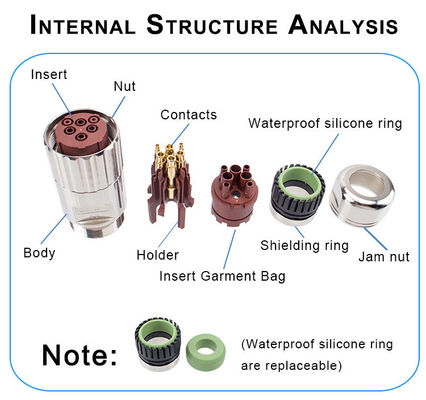

NOTE: Waterproof silicone ring are replaceable;

Exquisite crafts manship in place attention to every detail treatment precise and neat threads , smooth edges;

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 0







30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 1

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 2















P

Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
