Product Details:
Payment & Shipping Terms:
|
| Material: | Metal And Plastic | D-SUB: | 9 23 37PIN |
|---|---|---|---|
| PIN: | Copper Pin | Size: | See Detail Drawings |
| High Light: | wire wrap sockets,ic chip socket |
||

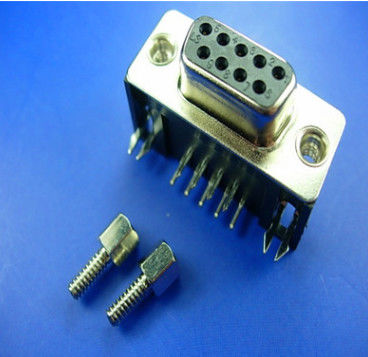

D-SUB 9pin male female connector strigh pin with long screw fixed
Goods size in 12.55x30.8mm
Pin in stright;
Detail see encloed drawing
We are supply Pin header,female header,terminal blocks,box header(DC3), pcb board connector, LED light connector; waterproof connector
shrouded header (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,
ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust cover,
micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.
| D-SUB H,DIP STRAIGHT TYPE | |
| Material: | |
| Insulator: | thermoplastic(ul 94v-0). |
| Color: | as per order. |
| Contact: | copper alloy. |
| Contact plated: | see ordering information. |
| Specification: | |
| Storage Temperature: | -20-70°C. |
| Operating temperature: | 0-85°C. |
| Contact resistance: | 20mΩMax.(initial). |
| Insulation resistance: | 1000mΩ Min. |
| Dielectric withstanding voltage: | AC 1000V. |
