SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light

SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light
SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light

Large Image :  SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light Get Best Price

Product Details:
Place of Origin: CHINA SHENZHEN
Brand Name: SMD
Certification: UL IEC
Model Number: 2059
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.1-0.5
Packaging Details: 2000PCS per roller
Payment Terms: T/T
Supply Ability: 1000000
Detailed Product Description
High Light:

solderless led tape connectors

,

commercial electric led connectors



SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light 0

SMD Terminal Blocks 2059 Blocks Led Light Connectors For Single Color Strip Light 1



Electric products

Refer stander
UL
IEC

Voltage
250V
250V

Current
9A
9A

Wire:
24-18AWG
0.2-0.75mm2
pouch voltage


2.0KV



Work temperatures;
-40°C~+105°C
Wire


5mm

SIZE

PITCH
4mm(.157")

pole
1P,2P,3P



Houseing
PPA,UL94V-0

Terminal
Copper

Block
copper TIN coating

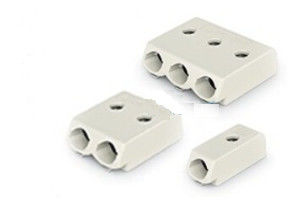

  • The terminal blocks are available as 1-, 2- or 3-pole versions and can be connected in series without losing any poles. This means that no extra terminal block versions need to be kept on stock when a higher number of poles is required - increasing flexibility and reducing costs.

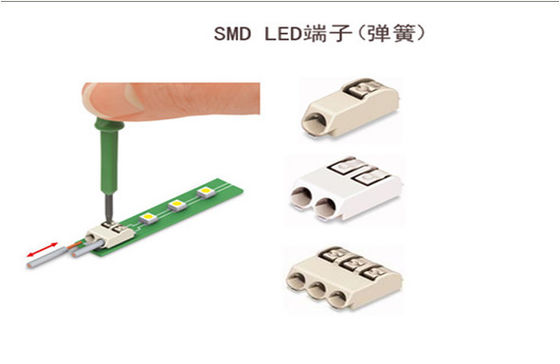

  • Use and handling is especially easy, as solid conductors can simply be directly inserted and also removed quickly using an operating tool.
