Product Details:
Payment & Shipping Terms:
|
| Poles: | 2P-24P | PIN SIZE: | 1.3MM |
|---|---|---|---|
| PITCH: | 5.0 | COLOR: | BLACK |
| High Light: | pcb mount screw terminal,pcb screw terminal block connector |
||

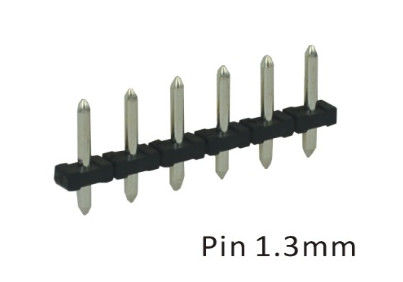

1.3mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base
terminal block PIN, 332J 5.0
Material:
Pitch:5.0mm
Poles: 2-24P,
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC2000V/1min
Wire range: 24-14 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 4.5-5 mm
We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
Contact Person: Zhou
Tel: +8613316962478
