| Servise: | OEM ODE Sample Free | Material: | PA66 |
|---|---|---|---|
| Pin Header: | Brass And Tin Plated | Size: | 12.5x9.1mm |
| Mold: | Current Mold Or Build Mold Base On Buyer Ask | ||
| Highlight: | pcb screw terminal block connector,pcb mount screw terminal block |
||

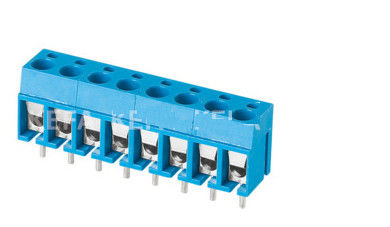

Custom - Made Screw Terminal Block Connector Pluggable Type RD300-5.0 2-24P 300V 16A 300
Contact daisy, qq: 910806316, phone 18825261290 mail daisyzhou_003at 163.com
Material:
Pitch:5.0mm
Poles: 2-24P,
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 16A
With standing voltage: AC2000V/1min
Wire range: 22-14 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 4.5-5mm
contact daisyzhou_003 at 163.com
We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
