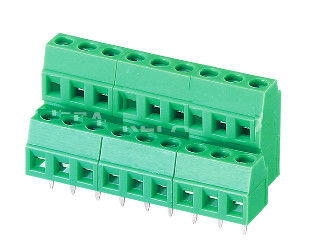

pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type

pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type
pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type

Large Image :  pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA
Certification: CE ROHS
Model Number: 2P 3P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.23
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Size: 16.2x16.35 Mm Other Size See Drawing Mold: Current Mold Or Build New Mold
Servise: OEM ODM Sample: Free
High Light:

pcb mount screw terminal

,

pcb screw terminal block connector

Material:
Pitch:3.5 3.81mm
Poles: 2P 3P  can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8lb in)
Strip length: 5-6mm
contact daisyzhou_003 at 163.com













pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type 0

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.







pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type 1
