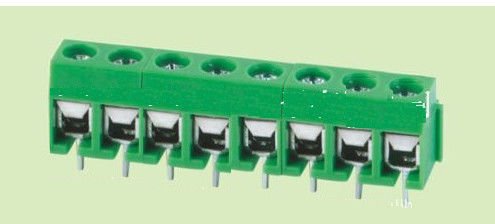

pcb terminal blocks, terminal block screw type, 126R-5.0 pcb board 5.0 126R green terminal block terminal block

Name: pcb terminal blocks, terminal block screw type, 126R-5.0 pcb board 5.0 126R green terminal block terminal block
Brand: KEFA no mark
SKU: 2P 3P
Price: 0.23 USD
Availability: InStock
Rating: 5 (103 reviews)

Large Image : pcb terminal blocks, terminal block screw type, 126R-5.0 pcb board 5.0 126R green terminal block terminal block Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KEFA no mark
Certification:	CE ROHS
Model Number:	2P 3P

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	0.23
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days

Contact Now

Detailed Product Description

Size:

10.1x7.8 Mm

Funcation:

Wire Connecting

Material:

Use New Plastic And Metal

Time:

2-10 Days For Sample And Goods

High Light:

pcb mount screw terminal

pcb mount screw terminal block

Material:
Pitch:5.0mm
Poles: 2P 3P, can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 250V
Rated current: 8A
With standing voltage: AC2000V/1min
Wire range: 26-14 AWG
Mechanical:
Temperature range: -30℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 6-7mm

pcb terminal blocks, terminal block screw type, 126R-5.0 pcb board 5.0 126R green terminal block terminal block 0

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
