TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color

TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color
TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color

Large Image :  TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA or no mark
Certification: CE ROHS
Model Number: 2P 3P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Color: Blue Or Green Color Normally Material: New Plastic And Metal Make
Size: See Detail Drawing Servise: OEM ODM Sample Free
High Light:

pcb screw terminal block connector

,

pcb mount screw terminal block



Material:
Pitch:5.0mm
Poles: 2P,3P; can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 16A
With standing voltage: AC2000V/1min
Wire range: 22-14 AWG
Mechanical:
Temperature range: -30℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length:4.5-5mm

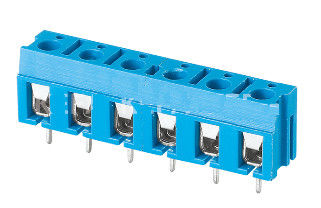

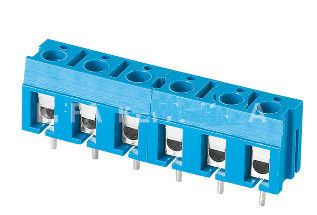

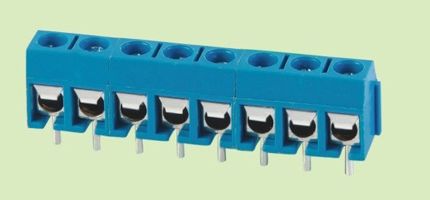

TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color 0



TB 3.81mm pitch 2P 3P make to XXXP 300V 16A pcb board use screw terminal block blue color 1







We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
