KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

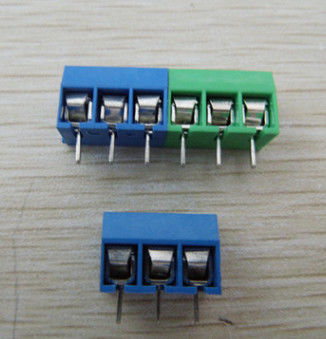

KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block

KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block
KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block

Large Image :  KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA or NO MARK
Certification: CE ROHS
Model Number: 2P 3P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Minimum Order Quantity: 200
Detailed Product Description
Color: Blue Or Green Function: Wire Line Connecting
Type: PCB Screw Terminal Block Assembly: High Work Experience Worker Assembly
Factory: Build 2005 Year
High Light:

circuit board terminal blocks

,

pcb mount terminal block

KEFA Terminal Blocks Terminal Block Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Use Block



Material:
Pitch:5.0mm
Poles: 2P 3P, can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 16A
With standing voltage: AC2000V/1min
Wire range: 22-14 AWG
Mechanical:
Temperature range: -30℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 4.5-5mm






KEFA Circuit Board Terminal Blocks Screw Type 306 2P 3P 5.0 Tin Coated And Pcb Board Block 0











We manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
