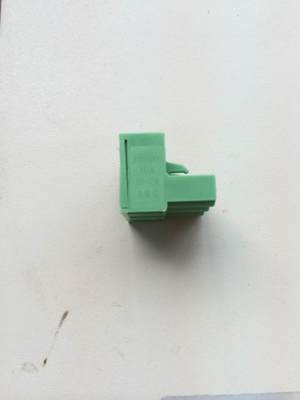

KEFA Pluggable Pcb Terminal Block For Telecommunication Equipment

Name: KEFA Pluggable Pcb Terminal Block For Telecommunication Equipment
Brand: KEFA
SKU: 2-24P
Price: 0.12 USD
Availability: InStock
Rating: 4.6 (163 reviews)

Large Image : KEFA Pluggable Pcb Terminal Block For Telecommunication Equipment Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KEFA
Certification:	CE ROHS
Model Number:	2-24P

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	0.12
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days
Minimum Order Quantity:	200

Contact Now

Detailed Product Description

High Light:

pluggable terminal block connector

panel mount pluggable terminal block

KEFA Pluggable Pcb Terminal Block For Telecommunication Equipment

Material:
Pitch: 7.5/7.62mm
Poles: 2P-24P
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: IEC:15A, UL:10A
With standing voltage: AC1500V/1min
Wire range: 28-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.5Nm(4.4 lb in)
Strip length: 7-8mm
