Product Details:
Payment & Shipping Terms:
|
Number Of Contacts: | 4pin 9pin 17pin | Termination Type: | Crimp/Solder |
---|---|---|---|
Wire Gauge: | 18-24 AWG Or More AWG | IP Rating: | MS Series Connector |
Operating Temperature: | -40℃ To +105℃ | Contact Plating: | Gold/Silver |
Connector Type: | Servo Motor | Voltage Rating: | 250V 500V 1000V |
High Light: | AC Brushless Servo Motor Connectors,Metal Housing Servo Motor Connectors,3106A Electrical Connectors |

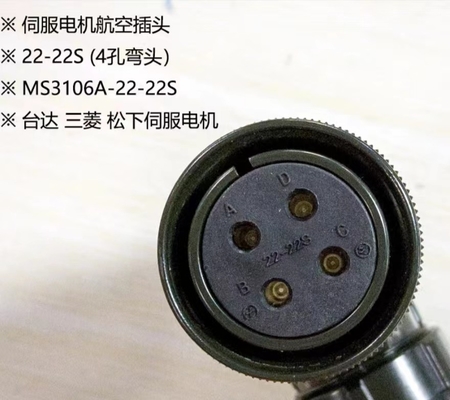

MS3106A-22-22S; MS3106A-32-17S; MS3106A-10-18S; MS3106A-20-4S so on item#
Servo Motor Connectors are made with material like metal and plastic. This product is designed with the MS Series Connector and its insulation resistance is perfect for servo motor connectors. It can function well in a temperature range from -40℃ To +105℃, which is suitable for industrial automation. Especially, it is ideal for AC Brushless Servo Motor, Hydraulic Brake Motors, and other hydraulic brake motors. It provides excellent reliability in industrial applications.
The MS series analog American standard electrical connectors are currently widely used for electrical connections between electronic equipment and instruments. It meets the MIL-C-5015 standard, and the product has light weight, multiple specifications, threaded connections, good sealing performance, corrosion resistance, conductivity, and mechanical strength.

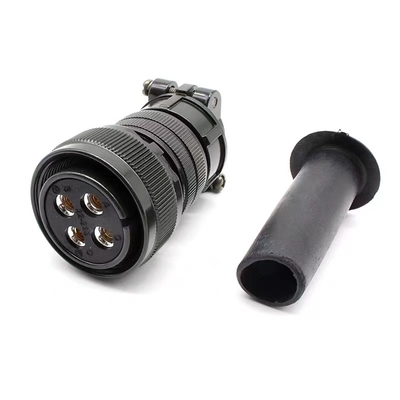

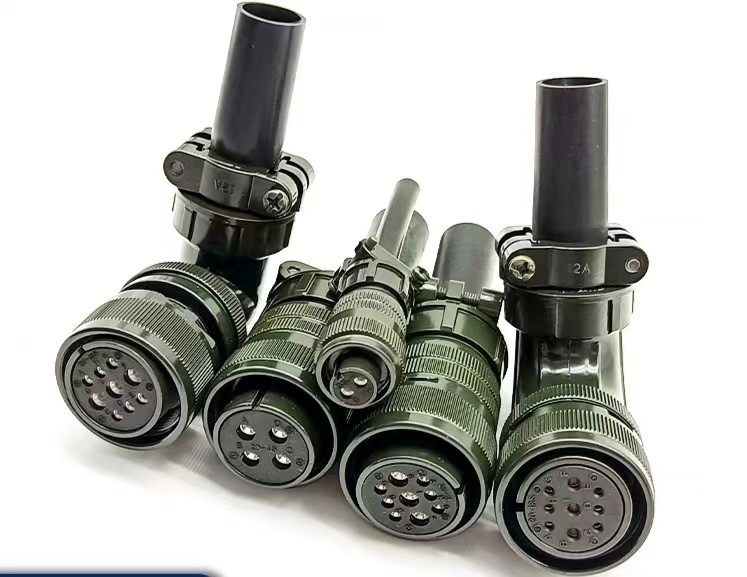

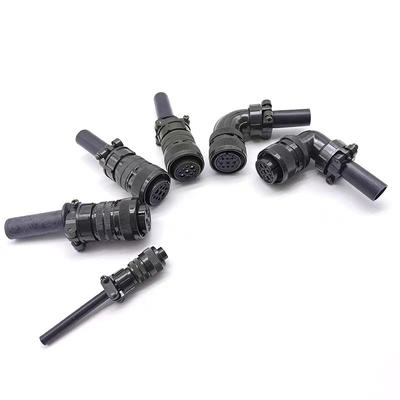

MS3106 straight head MS3108 Angle part MS3102 socket
The shell is made of aluminum alloy, with a military green surface and silver plated pins
Parameter | Value |
---|---|
Contact Plating | Gold/Silver |
Connector Type | Servo Motor |
Operating Temperature | -40℃ To +105℃ |
Insulation Resistance | Servo Motor Connector |
IP Rating | MS Series Connector |
Application | Industrial Automation |
Current Rating | 20A 30A |
Wire Gauge | 18-24 AWG Or More AWG |
Gender | Male/Female |
Number of Contacts | 4pin 9pin 17pin |
AC Servo Motor Driver | Yes |
DC Servo Motor Drive | Yes |
Brushless Servo Motor Drive | Yes |
NO MARK MS3106A Servo Motor Connectors are designed to provide reliable power and signal connections in a wide range of applications. The connectors feature a current rating of 20A 30A, and a voltage rating of 250V 500V 1000V. The connectors are certified CE and ISO9001, and have an operating temperature range of -40℃ To +105℃, and an insulation resistance of >100MΩ. The connectors are available in two types: Panel Mount and Cable Mount. They are also available in various sizes and colors, making them suitable for different kinds of applications.
NO MARK MS3106A Servo Motor Connectors are widely used in brushless servo motor, brushless servo motor, hydraulic brake motors, stepper motors, electric motors, automation control, robotics, automotive and industrial applications. They are also suitable for applications requiring high reliability and performance. The connectors are easy to install and require minimal maintenance. With a minimum order quantity of 100, these connectors are offered at competitive prices and with short delivery times.
NO MARK MS3106A Servo Motor Connectors are designed to provide reliable and secure connections, and are capable of withstanding extreme temperatures and shocks. They are also waterproof and dustproof, and can be used in a variety of environments. With a high supply ability of 1000 pcs/day, these connectors are suitable for both small and large scale projects. They are also available in various payment terms, including T/T and PayPal.
We provide the professional customized service of Servo Motor Connectors. Our product, NO MARK MS3106A series Connector, is made with high quality and certified by CE and ISO9001. The minimum order quantity is 100, and the delivery time is 1-3 working days. The payment terms are T/T and PayPal. The supply ability is 1000 pcs/day. It is applicable for Industrial Automation. It has IP rating of MS Series Connector, 4pin 9pin 17pin and wire gauge of 18-24 AWG or more AWG. It also has excellent insulation resistance for AC Servo Motor Driver, High Torque DC Servo Motor, Brushless Servo Motor, and AC Servo Motor.
The package for our product is carton box. We look forward to provide you with the best service.
Servo Motor Connectors provide technical support and services for customers to ensure their products are operating correctly and efficiently.
We have a team of experts available to answer any questions or provide guidance on how to use our products. Our support staff can provide troubleshooting assistance, installation instructions, and provide advice on the best way to integrate our products into your system.
We also offer free software updates and upgrades for our products to keep them running at their optimal performance. Additionally, we offer maintenance and repair services to ensure your products are always in excellent condition.
If you ever have any questions or need help with our products, feel free to contact us for assistance.
Packaging and Shipping for Servo Motor Connectors:
