Product Details:
Payment & Shipping Terms:
|
Operating Temperature: | -40℃ To +105℃ | Current Rating: | 20A 30A |
---|---|---|---|
Termination Type: | Crimp/Solder | Gender: | Male/Female |
Application: | Industrial Automation | Connector Type: | Servo Motor |
Contact Plating: | Gold/Silver | Mounting Type: | Panel Mount/Cable Mount |
High Light: | Industrial Automation Servo Motor Connectors,Servo Motor Connectors 10SL-4,24-10S Cable Connector |

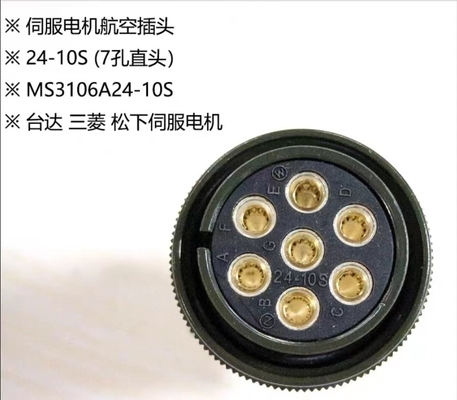

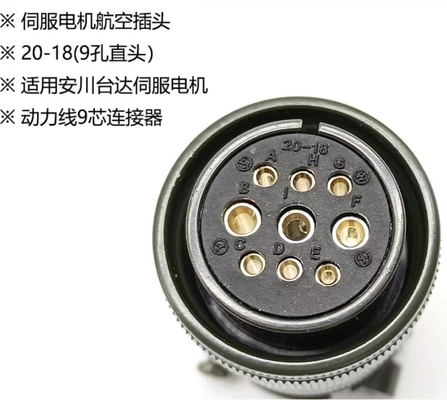

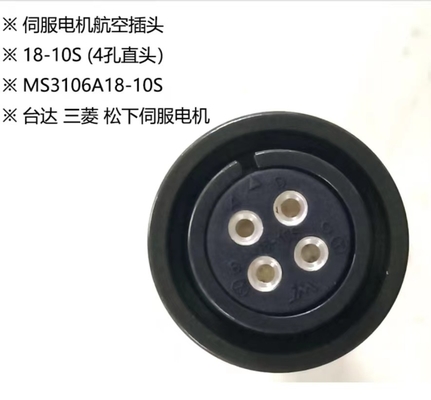

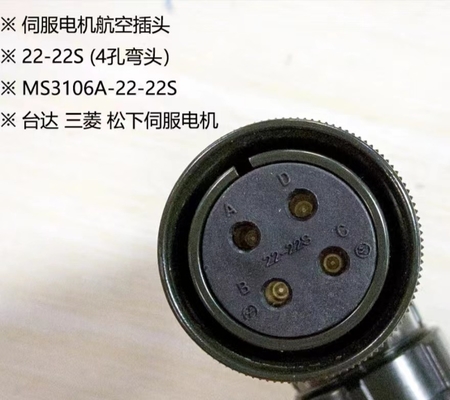

Servo Motor Connectors 10SL-4 22-22S 18-10S 32-17S 20-4S 20-18S 22-29S 24-10S
Servo Motor Connectors are made with material like metal and plastic. This product is designed with the MS Series Connector and its insulation resistance is perfect for servo motor connectors. It can function well in a temperature range from -40℃ To +105℃, which is suitable for industrial automation. Especially, it is ideal for AC Brushless Servo Motor, Hydraulic Brake Motors, and other hydraulic brake motors. It provides excellent reliability in industrial applications.
The MS series analog American standard electrical connectors are currently widely used for electrical connections between electronic equipment and instruments. It meets the MIL-C-5015 standard,20- and the product has light weight, multiple specifications, threaded connections, good sealing performance, corrosion resistance, conductivity, and mechanical strength.

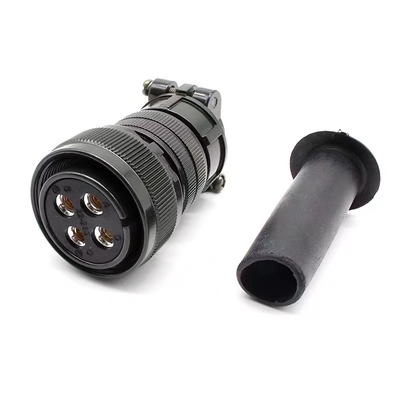

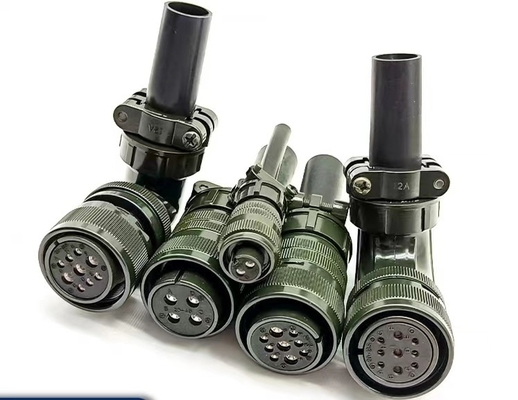

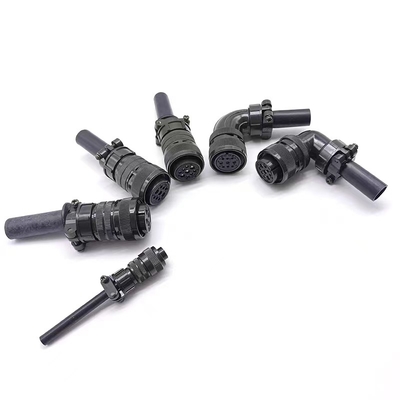

MS3106 straight head MS3108 Angle part MS3102 socket
Parameter | Specification |
---|---|
Contact Plating | Gold/Silver |
Termination Type | Crimp/Solder |
Gender | Male/Female |
Mounting Type | Panel Mount/Cable Mount |
Insulation Resistance | Servo Motor Connector |
Number of Contacts | 4pin 9pin 17pin |
Operating Temperature | -40℃ To +105℃ |
Application | Industrial Automation |
Material | Metal/Plastic |
Connector Type | Servo Motor |
High Torque DC Servo Motor | Yes |
Brushless Servo Motor | Yes |
DC Servo Motor Drive | Yes |
NO MARK's MS3106A Servo Motor Connectors are designed for a wide range of DC and AC servo motor drive applications in industrial automation. These Servo Motor Connectors are made with superior quality materials and have a voltage rating of 250V, 500V, and 1000V. The wire gauge of the connectors ranges from 18-24 AWG or above, and the contact plating is available in both gold and silver. The minimum order quantity is 100 pieces, and the delivery time is 1-3 working days. NO MARK provides payment options such as T/T and PayPal, and offers a supply capacity of up to 1000 pieces per day. Each connector is packaged in a carton box and has CE and ISO9001 certifications.
Servo Motor Connectors
Brand Name: NO MARK
Model Number: MS3106A
Place of Origin: China
Certification: CE, ISO9001
Minimum Order Quantity: 100
Price: NA
Packaging Details: Carton box
Delivery Time: 1-3 working days
Payment Terms: T/T, PayPal
Supply Ability: 1000 pcs/day
Material: Metal/Plastic
Operating Temperature: -40℃ To +105℃
Voltage Rating: 250V 500V 1000V
Contact Plating: Gold/Silver
Number of Contacts: 4pin 9pin 17pin
We provide high quality Servo Motor Connectors for High Torque DC Servo Motor, AC Brushless Servo Motor and High Torque DC Servo Motor Connectors.
Packaging and Shipping of Servo Motor Connectors:
Contact Person: Zhou
Tel: +8613316962478
