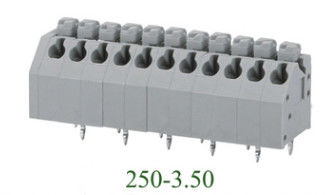

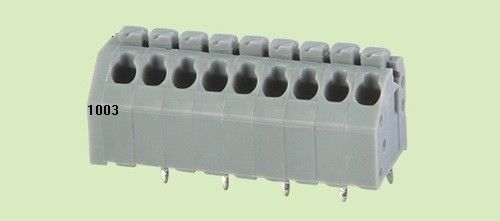

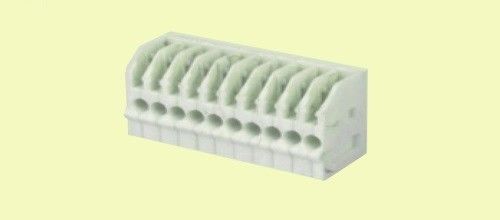

PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks

PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks
PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks

Large Image :  PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA RD
Certification: CE ROHS ul
Model Number: 1p-xxp
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Size: Detail See Drawing Color: Gray Or White
Function: Contact Wire For Power Use Use: Building Power Wire Way, Electric Machine So On
Sample: Sample Free
High Light:

circuit board terminal blocks

,

pcb mount terminal block

,

3.5mm pcb screw terminal block



Material:
Pitch:3.5mm
Poles: 1P-XXP,
Contact: Brass tin plated
Wire cage: stainless steel
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 2A
With standing voltage: AC2000V/1min
Wire range: 20-16AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Strip length: 8-9mm

PCB Screw Terminal Block RD250-3.5 C 1P-XXP 300V 2A Circuit Board Terminal Blocks 0





circuit board terminal blocks
