Home ProductsPlug In Terminal Block

7-8mm Strip Length Plug And Socket Terminal Block With 28-12 AWG Wire Range

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

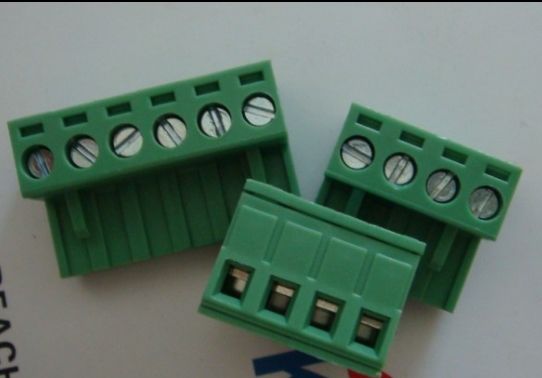

7-8mm Strip Length Plug And Socket Terminal Block With 28-12 AWG Wire Range

7-8mm Strip Length Plug And Socket Terminal Block With 28-12 AWG Wire Range
7-8mm Strip Length Plug And Socket Terminal Block With 28-12 AWG Wire Range

Large Image :  7-8mm Strip Length Plug And Socket Terminal Block With 28-12 AWG Wire Range Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA
Certification: CE ROHS
Model Number: 2-24P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.1
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Minimum Order Quantity: 200
Detailed Product Description
High Light:

pluggable terminal block connector

,

plug in terminal block connector

Material:
Pitch: 5.0/5.08mm
Poles: 2P-24P
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: IEC:15A, UL:10A
With standing voltage: AC1500V/1min
Wire range: 28-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.5Nm(4.4 lb in)
Strip length: 7-8mm
