Product Details:
Payment & Shipping Terms:
|
| Brand: | Can Do OEM Brand Goods | Sample: | Free Sample Supplier Buyer Only Pay Freight |
|---|---|---|---|
| Color: | Can Do Any Color Base On Asked, Normally Green | Worker: | Experience Worker Make Production |
| Time: | New Plastic Material Product | ||
| High Light: | pluggable terminal block connector,plug in terminal block connector |
||
Material:technial data

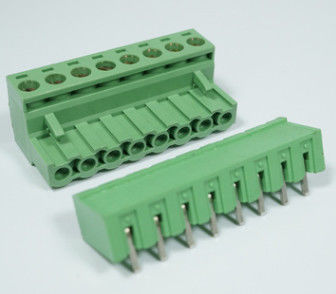

PCB terminal block connectors
Pitch: 5.08mm
Ples: 2P-12P
Screw: M2.5 Steel Zinc Plated
Wire guard: phosphor bronzeni plated
Contact: Brass, Tin plated
Housing: PA66 UL94V-0
Rated voltage: 300V
Rd current: 10A
Withstanding voltage: AC2500V/1 Min
Wire range: 24-12 AWG
Temperature range: -40d - + 105d
MAX Soldering: +250d for 5 sec.
Strip length: 7-8 mm
Contact Person: Zhou
Tel: +8613316962478
