Wire Connecting Plug In Terminal Block RD2EDGRA-10.16 Pitch 2P-12P 1000V 41A

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

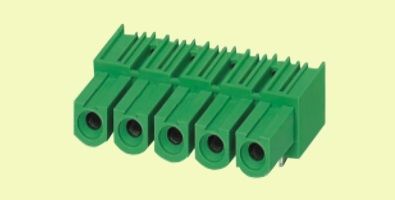

Wire Connecting Plug In Terminal Block RD2EDGRA-10.16 Pitch 2P-12P 1000V 41A

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Wire Connecting Plug In Terminal Block RD2EDGRA-10.16 Pitch 2P-12P 1000V 41A Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA
Certification: CE ROHS
Model Number: 2-12P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Minimum Order Quantity: 200
Detailed Product Description
Type: Big Voltage Type Material: NEW PA66 UL94V-0
Mold: Current Mold Servise: OEM ODM Sample Free
High Light:

pluggable terminal block connector

,

panel mount pluggable terminal block

Wire Connecting Plug In Terminal Block RD2EDGRA-10.16 Pitch 2P-12P 1000V 41A



Wire Connecting Plug In Terminal Block RD2EDGRA-10.16 Pitch 2P-12P 1000V 41A 0contact daisy



Screws

M3.0 Steel Zn plated
Cage

Phosphor bronze, Ni plated
Pin Header

Brass, Ni Plated
Housing

PA66 UL94V-0






ELECTRICAL
Standard

UL IEC
Rated voltage

  1000V
Rated current

  41A
Wire range

  2.5mm²
Contact Resistance

20mΩ
Insulation resistance

500mΩ /DC500V
Withstanding volatge

AC 2000V/1 min






MECHANICAL
Temp.range

-40º C ~ +105º C
Max Soldering

+250º C 5 Sec.
Torque

5.10/kgf-cm/0.5Nm/4.43Lbin
Strip length

7-8mm
