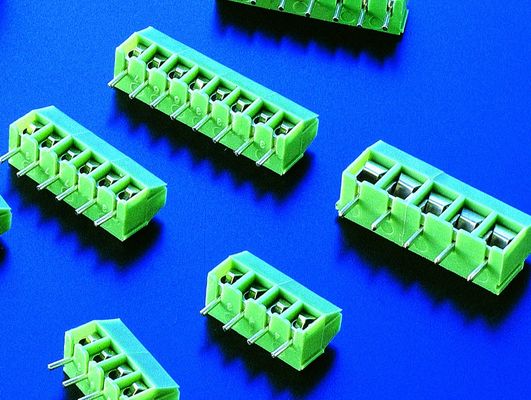

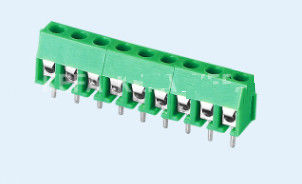

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated
RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

Large Image :  RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA RD no mark
Certification: CE ROHS ul
Model Number: 2-24P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Payment: Tt Sample: Free
Mold: Current Mold Servise: OEM ODM
High Light:

pcb mount screw terminal

,

pcb mount screw terminal block

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated



Material:
Pitch:3.5 3.96mm
Poles: 2P, 3P
Screw: M3  Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC2000V/1min
Wire range: 24-18 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8 lb in)
Strip length: 4.5-5mm
contact daisyzhou_003 at 163.com



RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated 0

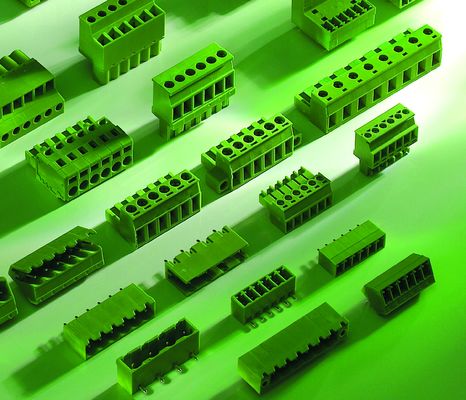

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.







RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated 1
