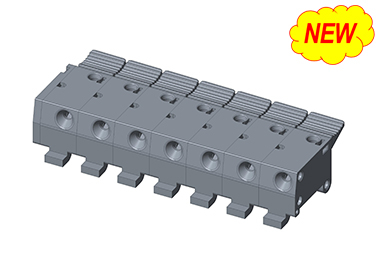

WQ15 FW15 5.0mm Pitch 300V 10A PCB Spring Terminal Block

Large Image : WQ15 FW15 5.0mm Pitch 300V 10A PCB Spring Terminal Block Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NO MARK
Certification:	UL CE
Model Number:	WQ15

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	0.1-2.2 $ about
Packaging Details:	base on commen package
Delivery Time:	3-5days
Payment Terms:	T, T/T
Supply Ability:	50000per day

Contact Now

Detailed Product Description

Conductor Size:	22-14 AWG	Housing:	22-18AWG
Strip Length:	10mm	Wire Range:	22-14 AWG
Wire Guard:	Phosphor Bronze.Ni Plated	Assembly:	Hand Assembly Void Destroy
Odm:	Make Change Base On Custom Required	Current Rating:	10A
Rated Current:	10A	Color:	Gray
Voltage Rating:	300V	Temp Range:	-30℃~+120℃
Pole:	1P~12P	Certifications:	UL, VDE CE
Mounting Type:	Through Hole
Highlight:	5.0mm pitch PCB terminal block , 300V 10A spring terminal , PCB spring terminal with warranty
