pcb terminal blocks, terminal block screw type, 128H-5.0 5.08 128H 5.0 green terminal block pcb board use block

Name: pcb terminal blocks, terminal block screw type, 128H-5.0 5.08 128H 5.0 green terminal block pcb board use block
Brand: KEFA or NO MARK
SKU: 2P 3P
Price: 0.23 USD
Availability: InStock
Rating: 4.8 (137 reviews)

Large Image : pcb terminal blocks, terminal block screw type, 128H-5.0 5.08 128H 5.0 green terminal block pcb board use block Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KEFA or NO MARK
Certification:	CE ROHS
Model Number:	2P 3P

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	0.23
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days

Contact Now

Detailed Product Description

SIZE:

25.5x12.8mm Other See Drawing

Mold:

Current Mold Or Buyer Designed

Drawing:

Can Make New Drawing Base On Buyer Ask

Color:

Normally Green Color Or Other Color Buyer Ask

High Light:

pcb screw terminal block connector

pcb mount screw terminal block

Material:
Pitch:5.0 5.08mm
Poles: 2P 3P can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5lb in)
Strip length: 6-7mm

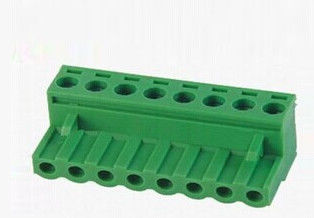

pcb terminal blocks, terminal block screw type, 128H-5.0 5.08 128H 5.0 green terminal block pcb board use block 0

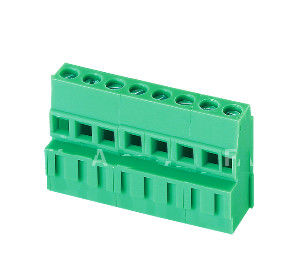

pcb terminal blocks, terminal block screw type, 128H-5.0 5.08 128H 5.0 green terminal block pcb board use block 1

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
