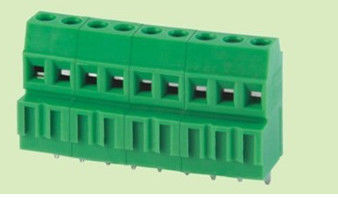

KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block

KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block
KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block

Large Image :  KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA or no mark
Certification: CE ROHS
Model Number: 2P 3P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.23
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Type: Rectangle Terminal Block Size: Detail See Drawing
Material: Use New Green Plastic Sample: Free Sample Supply
Mold: Current Mold Or Buyer Asked
High Light:

pcb mount screw terminal

,

pcb mount screw terminal block

KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H



Material:
Pitch:3.5 3.81mm
Poles: 2P 3P  can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8lb in)
Strip length: 5-6mm


KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block 0

KEFA Terminal Blocks Pcb Screw Terminal Connectors128H-3.5 3.81 128H pcb terminal blocks terminal block 1





We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
