KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

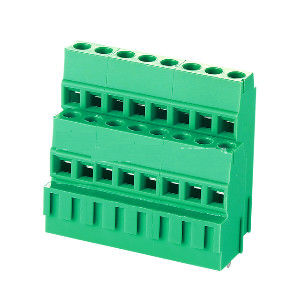

KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks

KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks
KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks

Large Image :  KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA
Certification: CE ROHS
Model Number: 2P 3P
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.23
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
MOQ: Many Item Goods Storage Sample: Free Sample Supply
Mold: Current Mold Use Or Build New Mold Base On Asked Color: Green Color
Type: Double Layer Double Deck Double Cells
High Light:

pcb mount screw terminal

,

pcb screw terminal block connector

Material:
Pitch:5.0 5.08mm
Poles: 2P 3P  can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5lb in)
Strip length: 6-7mm

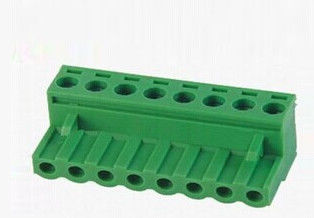

KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks 0







We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.

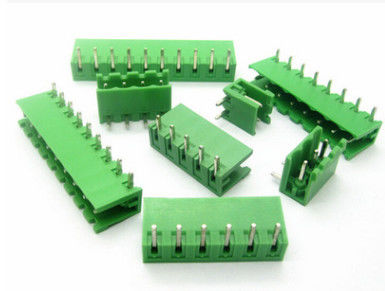

KEFA terminal blocks, terminal block screw type, 128AA-5.0 5.08 double layer cell block pcb terminal blocks 1
