Home ProductsPCB Spring Terminal Block

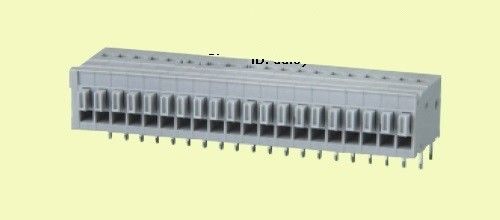

RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated

I'm Online Chat Now
As heaven maintains vigor through movement, a gentleman should constantly strive for self-perfection!

—— Amin Rain

RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated

RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated
RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated

Large Image :  RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEFA RD
Certification: CE ROHS ul
Model Number: 1p-xxp
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: 0.12
Packaging Details: 200pcs per inner box
Delivery Time: 2-5 days after receive deposit
Payment Terms: T/T
Supply Ability: 20000/days
Detailed Product Description
Color: Gray White Green Or Other Color Time: About 2 Years New Product
Place: Shenzhen China Worker: Experience Worker Make
Assembly: Hand And Machine Assembly
High Light:

electrical terminal block connectors

,

pcb mount terminal block

RD141AR-2.5 1P-XXP 150V 2A PCB Spring Terminal Block 26-20AWG Brass Tin Plated



electrical connector blocks

Material:
Pitch:2.5mm
Poles: 1P-XXP,
Contact: Brass tin plated
Wire cage: stainless steel
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 150V
Rated current: 2A
With standing voltage: AC1250V/1min
Wire range: 26-20AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Strip length: 10mm
contact daisyzhou_003 at 163.com
